4.5 Shaping/dressing
Surface grinding
44 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
6KDSLQJ
6WDUW
SURI
4.5 Shaping/dressing
Functionality
This function is used to shape a "raw" grinding wheel without generating an NC program.
The procedure always refers to the currently active tool.
Operation
Shaping is done in JOG mode.
The input screen is opened.

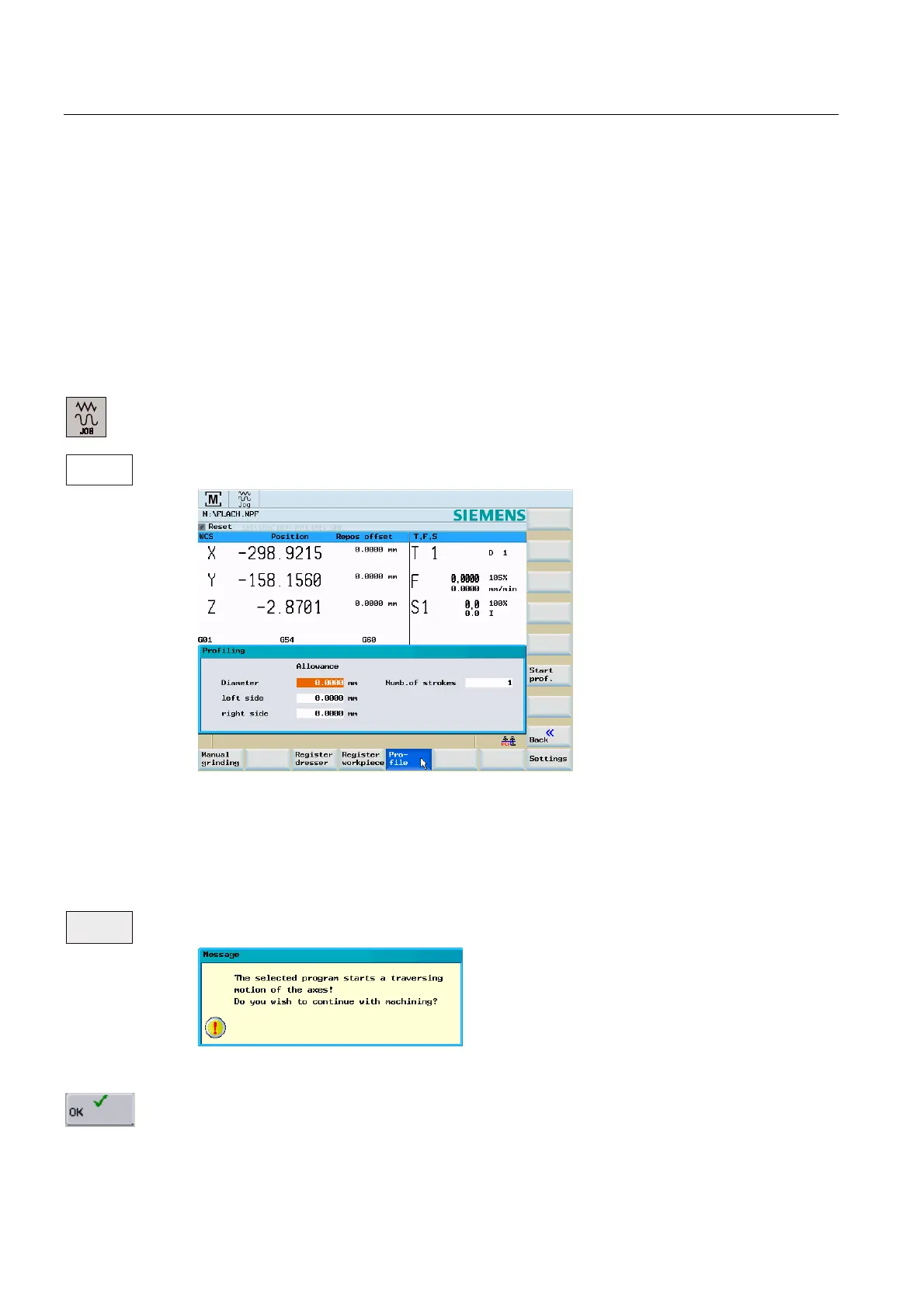

Figure 4-16 Shaping
The required shaper values that are machined in dressing strokes are entered using the
input fields
For a new wheel (no wear), the shaper allowance is suggested by the control system. The
number of dressing strokes can be freely selected.
When you press the <Start prof.> softkey, the following prompt will appear:
Figure 4-17 Prompt
How profiling is executed
