Description
1.5 Coordinate systems
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
17

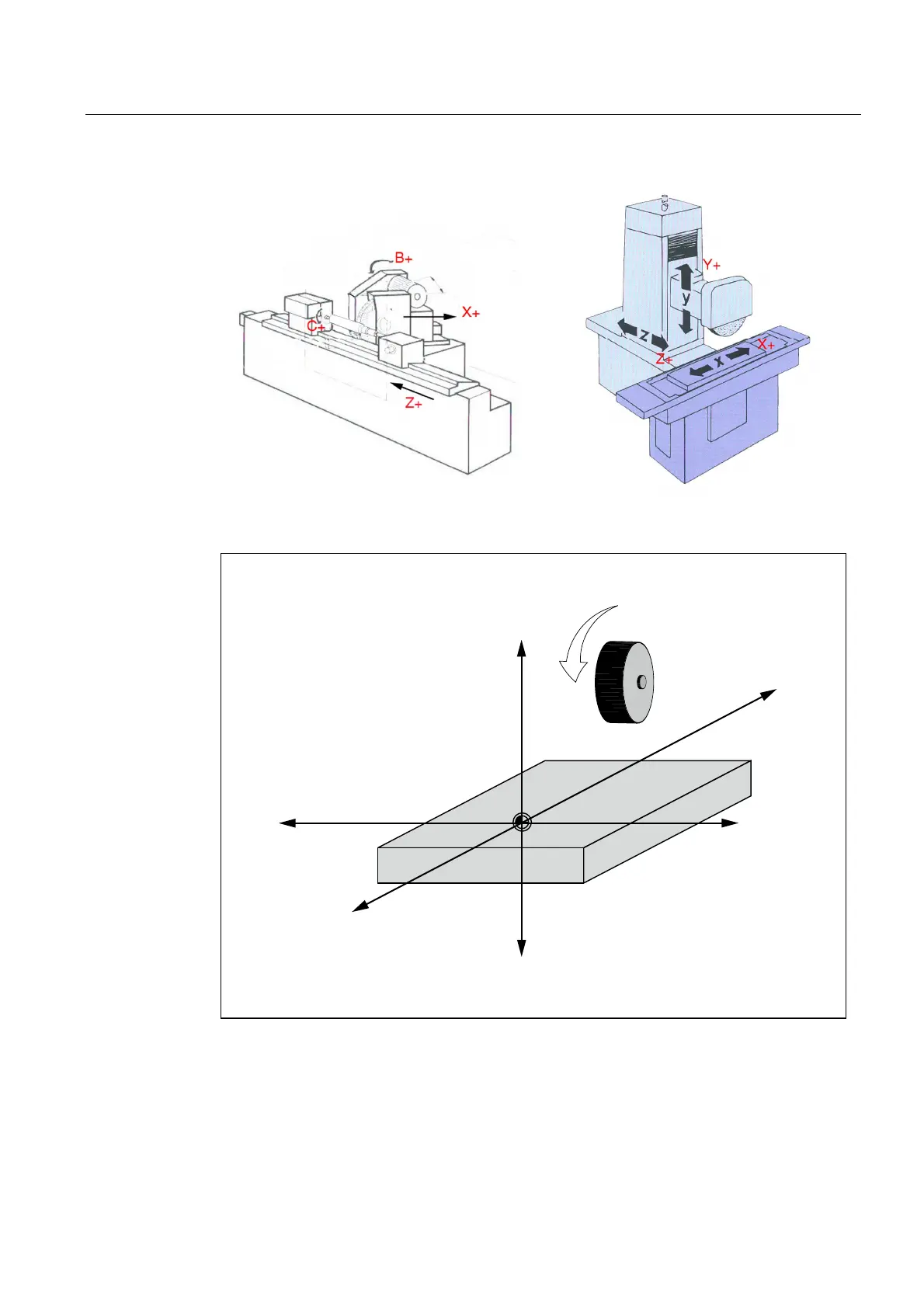

Figure 1-3 MCS for grinding (cylindrical grinding machine, surface grinding machine)
;
=
<
<
=
;
Figure 1-4 Machine coordinate system
The origin of this coordinate system is the machine zero.
This point is only a reference point which is defined by the machine manufacturer. It does not
have to be approachable.
The traversing range of the machine axes can be in the negative range.
