Programming
10.2 Positional data
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
221
:
PLUURUHGLQ<DQG;
*
*
1
PLUURUHGLQ<
1
1
*
*
*
*
PLUURUHGLQ;
2ULJLQDO
*
*
1
;
:RUNSLHFH
<
:RUNSLHFH

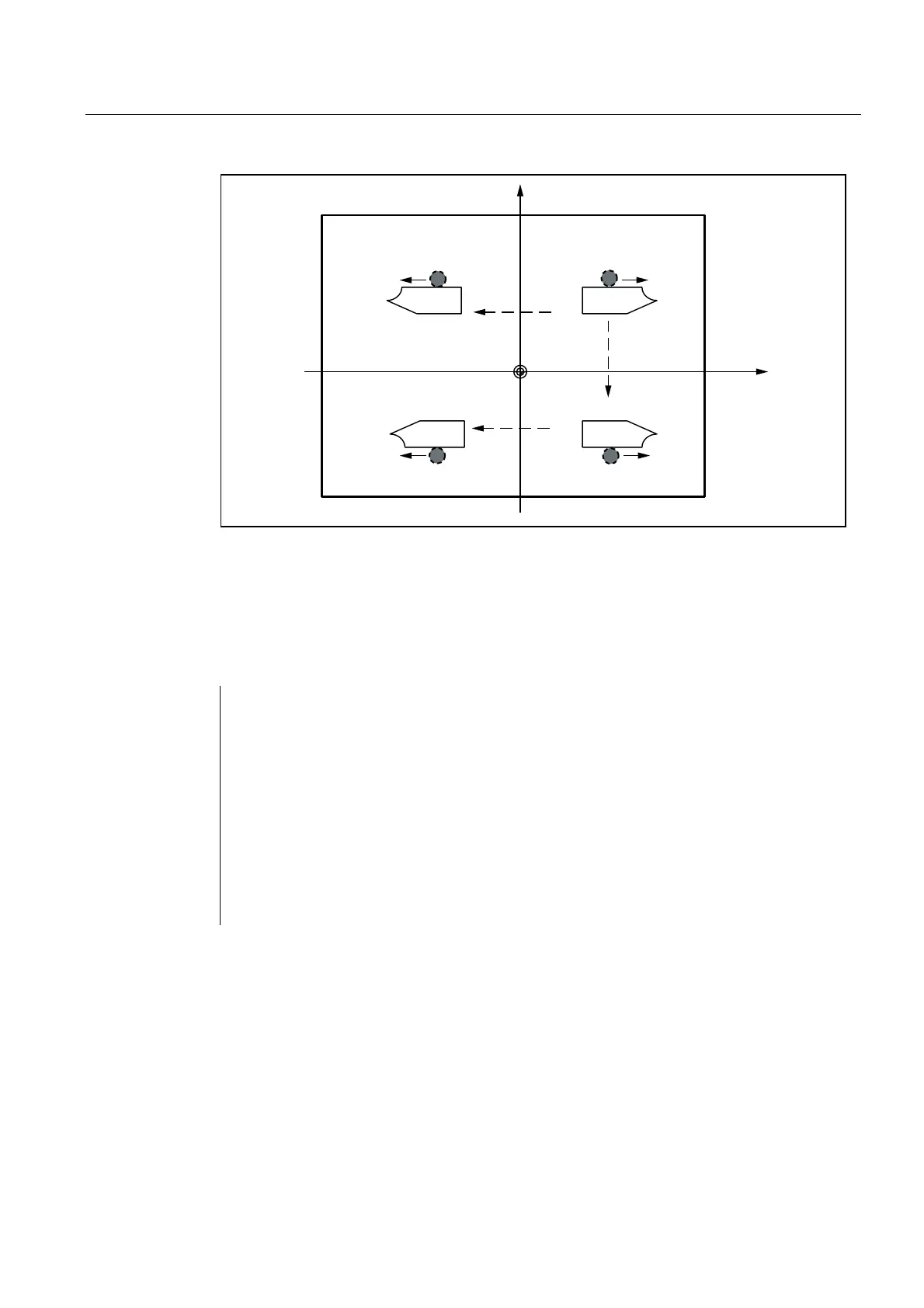

Figure 10-9 Example for mirroring with the tool position shown
Programming example
Mirroring in different coordinate axes with influence on an active tool radius compensation
and G2/G3:
...
N10 G17 ; X/Y plane, Z standing vertically on it
N20 L10 ; Programmed contour with G41
N30 MIRROR X0 ; Direction changed in X
N40 L10 ; Mirrored contour
N50 MIRROR Y0 ; Direction changed in Y
N60 L10
N70 AMIRROR X0 ; Mirroring once more, but now in X
N80 L10 ; Twice-mirrored contour
N90 MIRROR ; Mirroring off
...
Subroutine call - see Section "Subroutine technique "
