Programming
10.3 Axis movements
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
231
Programming example: Definition of center point and end point
&HQWHUSRLQW



,
6WDUWLQJSRLQW
(QGSRLQW
<
;
-



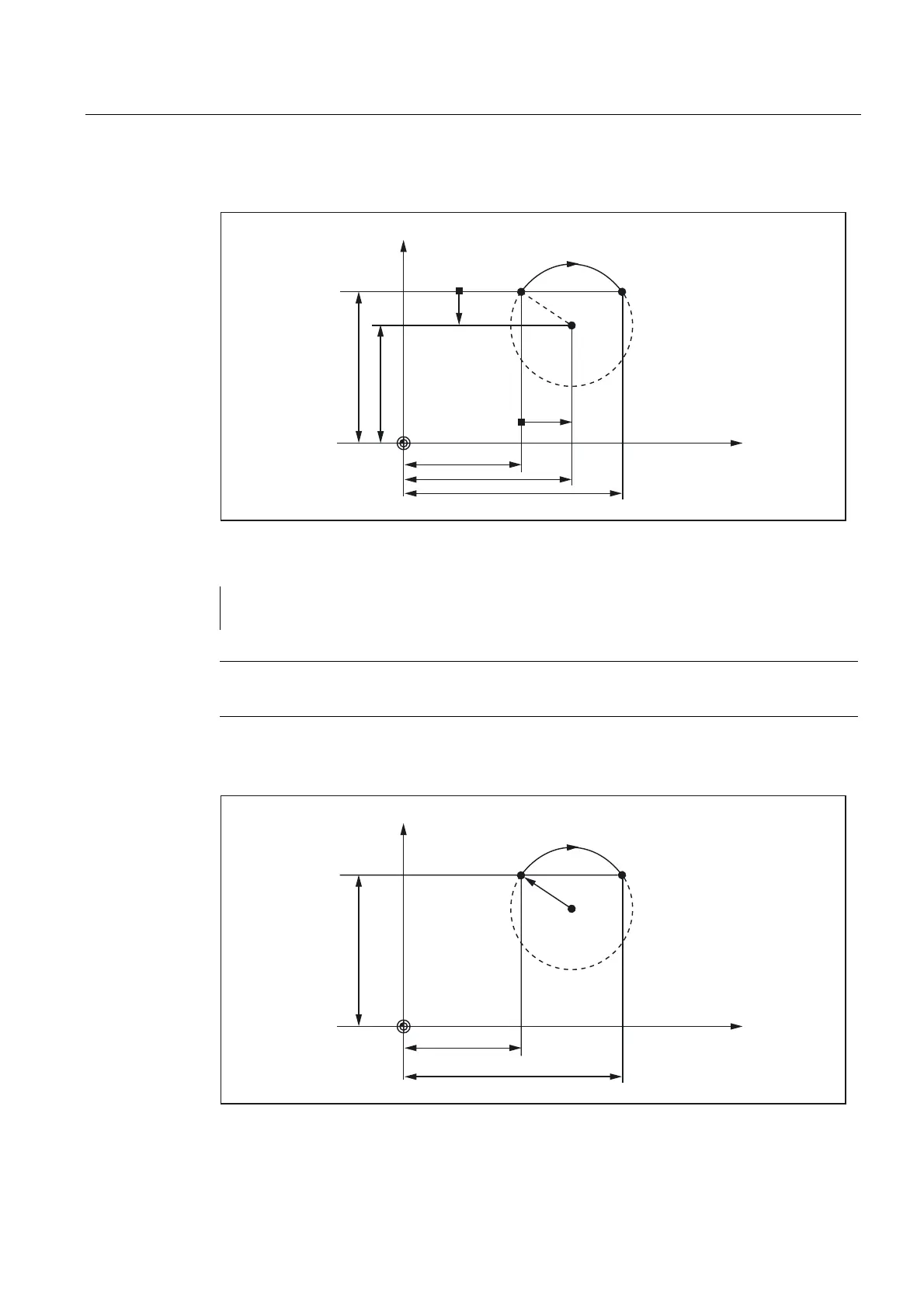

Figure 10-18 Example for center point and end point specification
N5 G90 X30 Y40 ; Starting point circle for N10
N10 G2 X50 Y40 I10 J-7 ; End point and center point
Note
Center point values refer to the circle starting point!
Programming example: End point and radius specification
&HQWHUSRLQW"


6WDUWLQJSRLQW
(QGSRLQW
<
;

5 
Figure 10-19 Example for end point and radius specification
