10.3 Axis movements
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
233
Programming example: Definition of center point and aperture angle
&HQWHUSRLQW


,
6WDUWLQJSRLQW
<
;
-


r
(QGSRLQW"

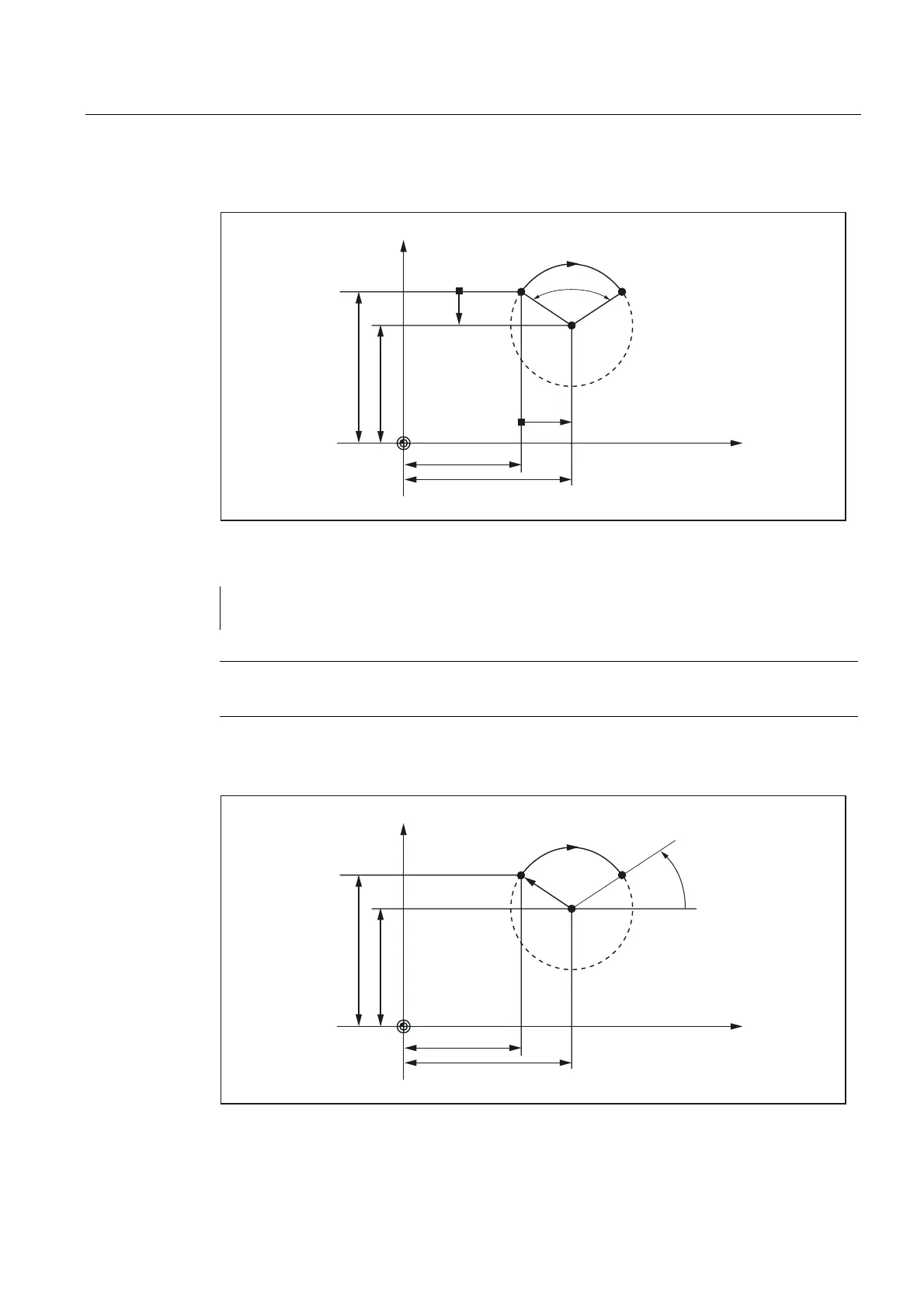

Figure 10-21 Example for center point and aperture angle specification
N5 G90 X30 Y40 ; Starting point circle for N10
N10 G2 I10 J-7 AR=105 ; Center point and aperture angle
Note
Center point values refer to the circle starting point!
Programming example: Polar coordinates
&HQWHUSRLQW SROH


6WDUWLQJSRLQW
$3
<
;


53
Figure 10-22 Example for circle with polar coordinates
