Programming
10.5 Special functions
Surface grinding
262 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
Programming
ANG=... ; Angle specification for defining a straight line
RND=... ; Insert rounding, value: Radius of chamfer
CHR=... ; Insert chamfer, value: Side length of the chamfer
Information
The blueprint programming function is executed in the current plane G17 to G19. It is not
possible to change the plane during blueprint programming.
If radius and chamfer are programmed in one block, only the radius is inserted regardless of
the programming sequence.
Angle ANG
If only one end point coordinate of the plane is known for a straight line or for contours
across multiple blocks the cumulative end point, an angle parameter can be used for
uniquely definiting the straight line path. The angle is always referred to the abscissa of the
current plane G17 to G19, e.g. for G17 on the X axis. Positive angles are aligned counter-
clockwise.
;<
(QGSRLQWLQ1QRWDOZD\V
NQRZQ
1*;<
1;$1*
RU
1*;<
1<$1*
7KHYDOXHVDUHRQO\H[DPSOHV
$1*
;"
RU
"<
1
1
3URJUDPPLQJ&RQWRXU
<
;

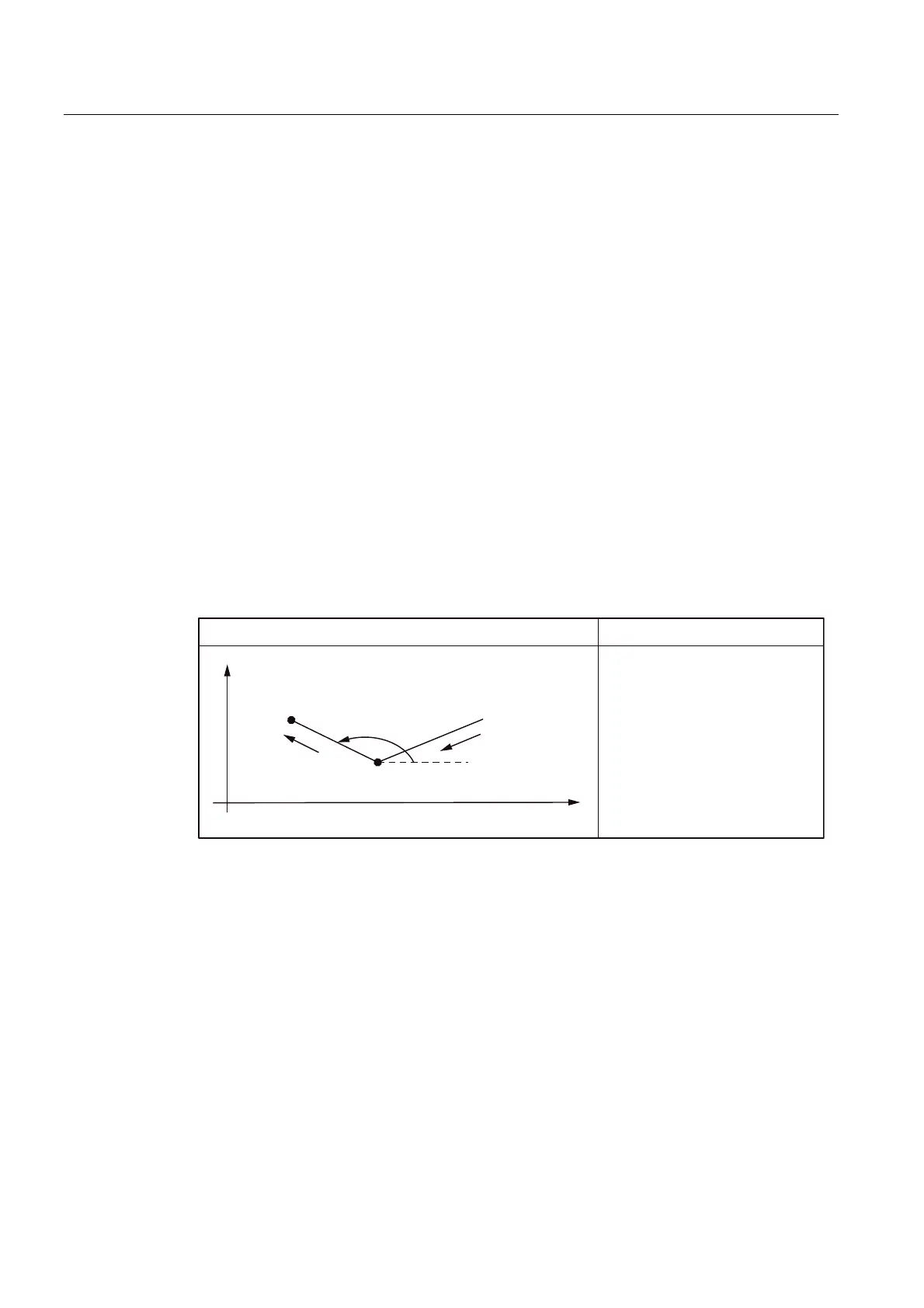

Figure 10-32 Specification of an angle for determination of a straight line using the example of the G17
plane
