PLC diagnostics
13.3 Operating options
Surface grinding
332 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
6\PEROLF
DGGUHVV
=RRP
=RRP
)LQG

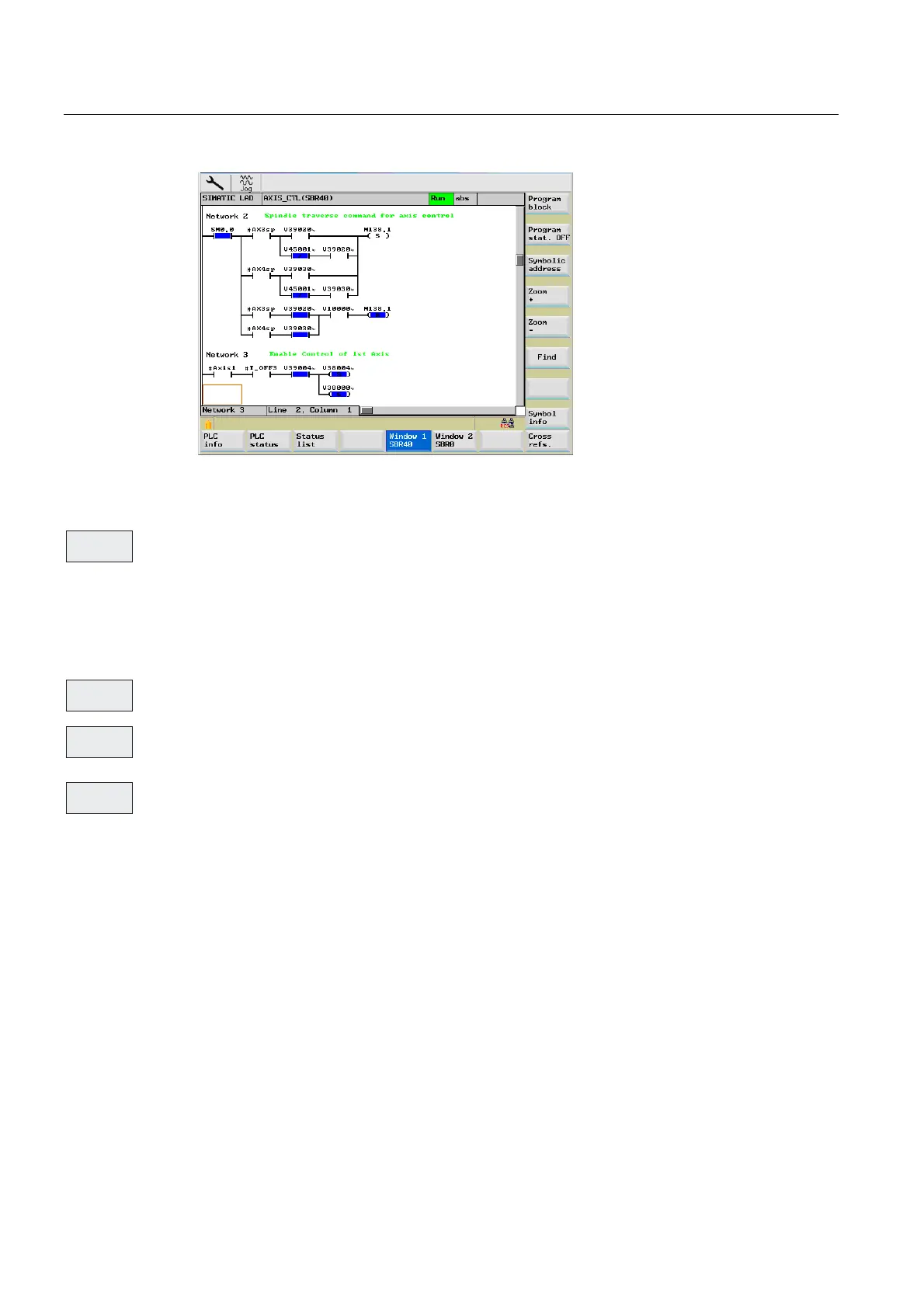

Figure 13-10 "Program status" ON – absolute representation
Use this softkey to switch between the absolute and symbolic representation of the
operands. The softkey labelling changes accordingly.
Depending on the selected type of representation, the operands are displayed either with
absolute or symbolic identifiers.
If no symbol exists for a variable, this is automatically displayed absolutely.
The representation in the application area can be zoomed in or zoomed out step by step.
The following zoom stages are provided:
20% (default), 60%, 100% and 300%
Can be used to search for operands in the symbolic or absolute representation (see
following screen).
A dialog box is displayed from which various search criteria can be selected. Use the
"Absolute/symbol. address" softkey to search for a certain operand matching this criterion in
both PLC windows (see the following screen). When searching, uppercase and lowercase
letters are ignored.
Selection in the upper toggle field:
● Search for absolute and symbolic operands
● Go to network number
● Find SBR command
Further search criteria:
● Search direction down (from the current cursor position)
● Whole program block (from the beginning)
● In one program block
● Over all program blocks
