PLC diagnostics
13.3 Operating options
Surface grinding
334 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
6\PERO
LQIR
&URVV
UHIV
Selecting this softkey displays all symbolic identifiers used in the highlighted network.

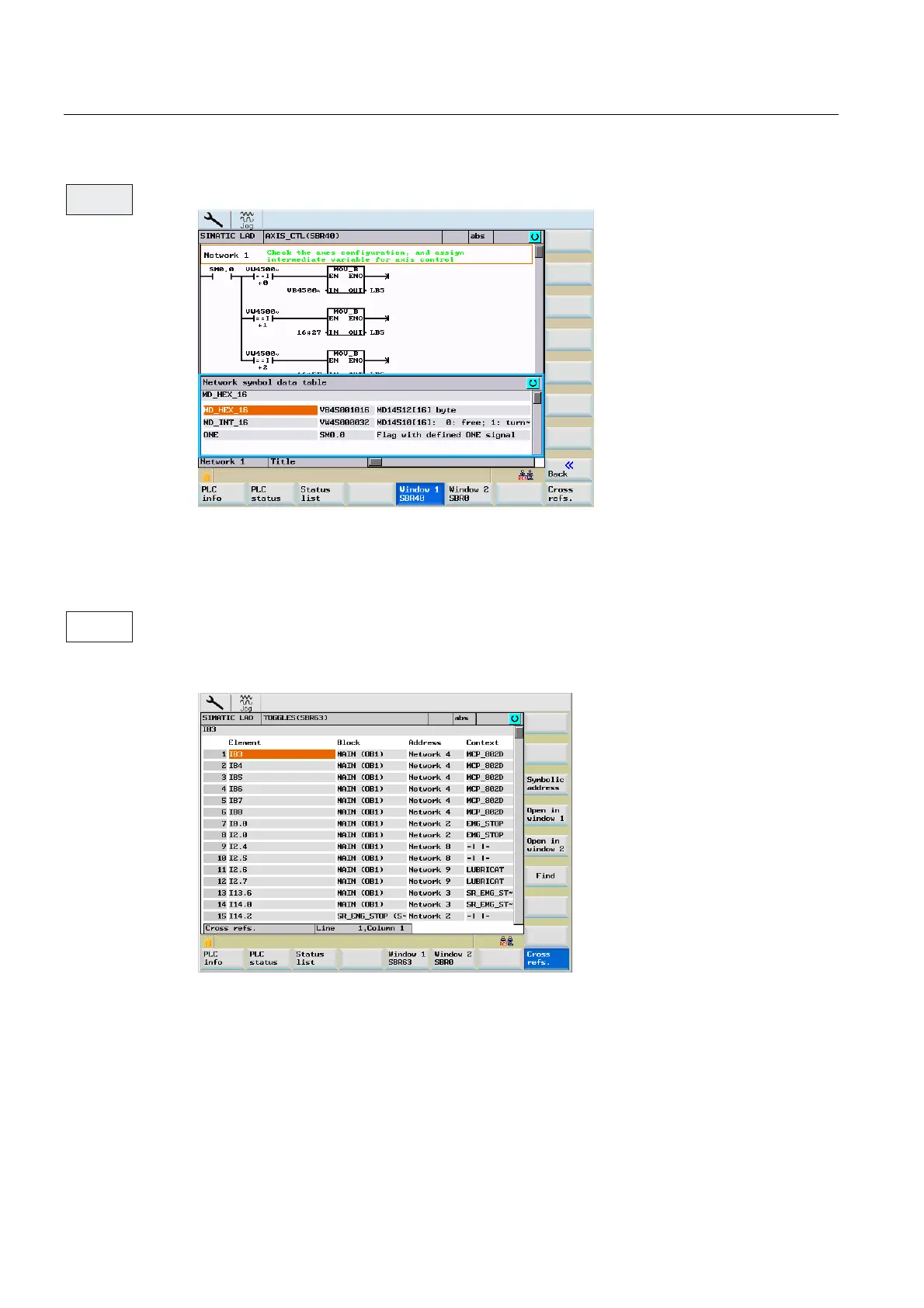

Figure 13-13 Network symbol information table
Use this softkey to display the list of cross references. All operands used in the PLC project
are displayed.
This list indicates in which networks an input, output, flag etc. is used.
Figure 13-14 Cross references main menu (absolute)
