Manual mode
5.2 JOG mode - "Position" operating area
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
57

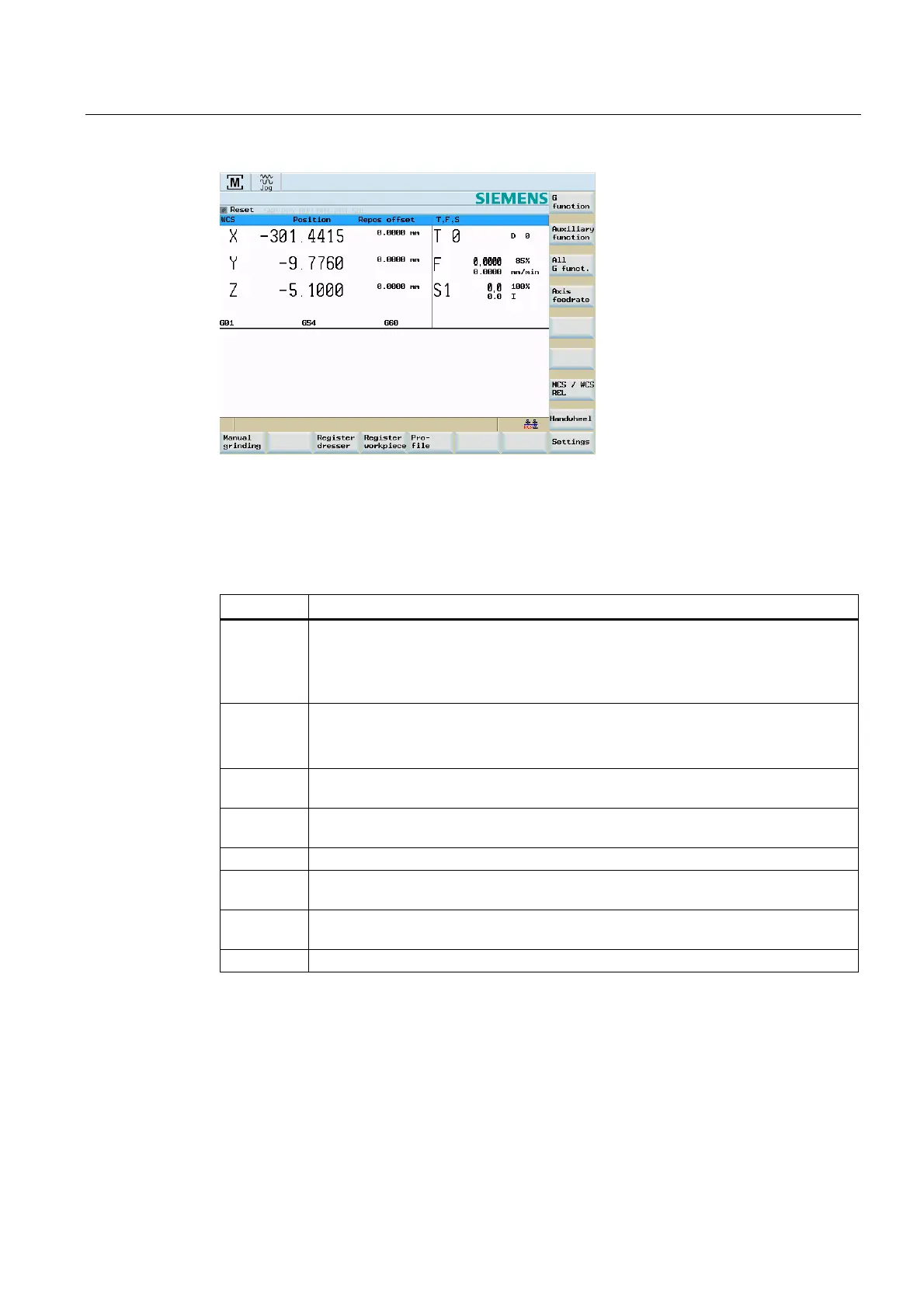

Figure 5-3 JOG mode start screen
Parameter
Table 5- 1 Description of the parameters in the JOG start screen
Parameter Explanation
MCS
X
Y
Z
Displays the axes existing in the machine coordinate system (MCS) or in the workpiece
coordinate system (WCS)
+ X
+ Y
- Z
If you traverse an axis in the positive (+) or negative () direction, a plus or minus sign
will appear in the relevant field.
If the axis is already in the required position, no sign is displayed.
Position
mm
These fields display the current position of the axes in the MCS or WCS.
Repos.
offset
If the axes are traversed in the "Program interrupted" condition in the
Jog
mode, the
distance traversed by each axis is displayed referred to the interruption point.
G function Displays important G functions
Spindle S
r.p.m.
Displays the actual value and the setpoint of the spindle speed.
Feed F
mm/min
Displays the path feedrate actual value and setpoint.
Tool Displays the currently active tool with the current edge number
