Part programming
7.4 Free contour programming
Surface grinding
94 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
&RQWRXU

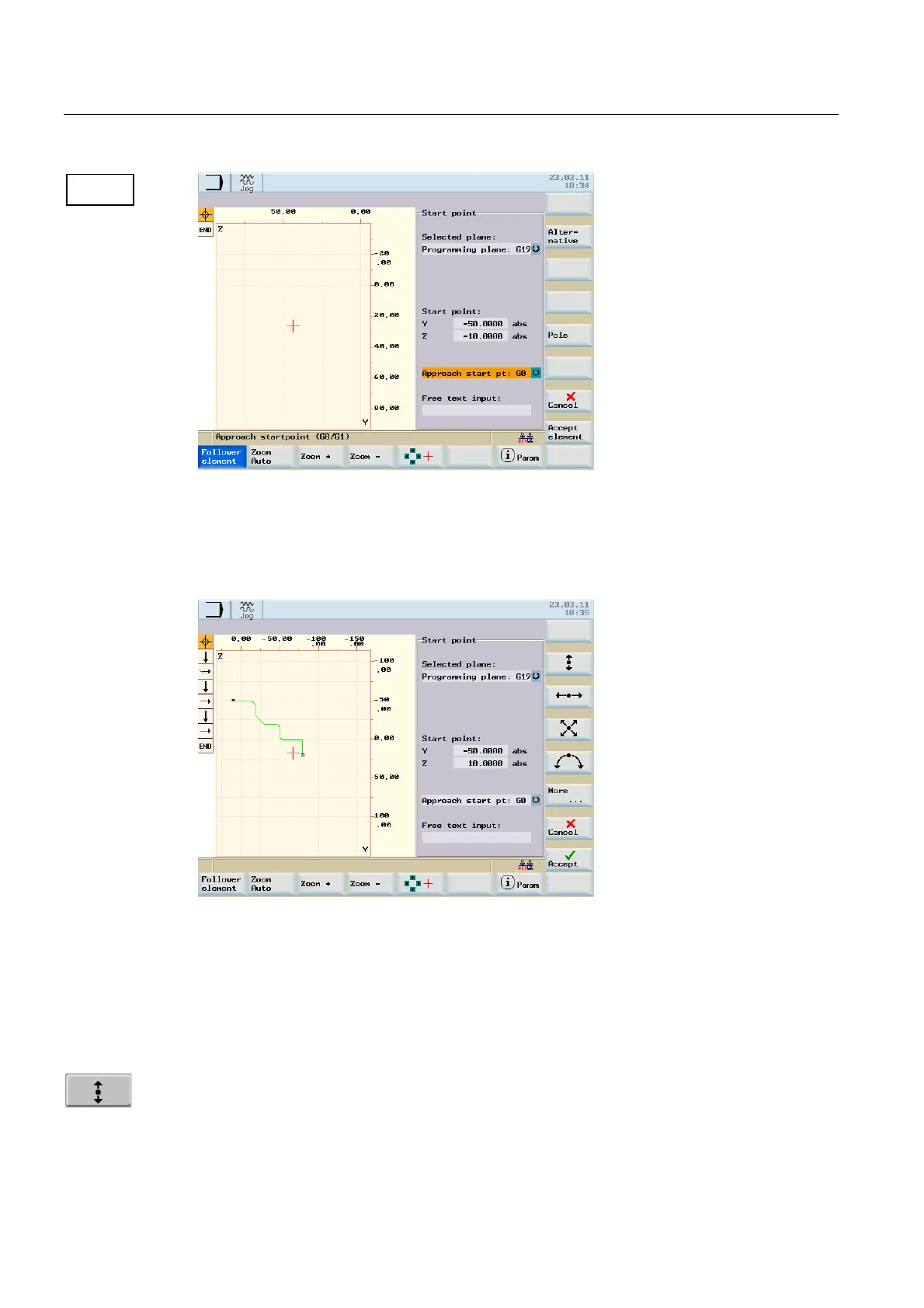

Figure 7-6 Define a start point
Initially, you define a contour start point (see Chapter "Defining a start point (Page 97)").
The contour is then programmed step-by-step (see chapter "
Programming example, surface
grinding (Page
105)").
Figure 7-7 Edit contour elements
Softkeys for the contour elements
The following are contour elements:
● Start point
● Straight line in the vertical direction (transverse)
To Next Page
