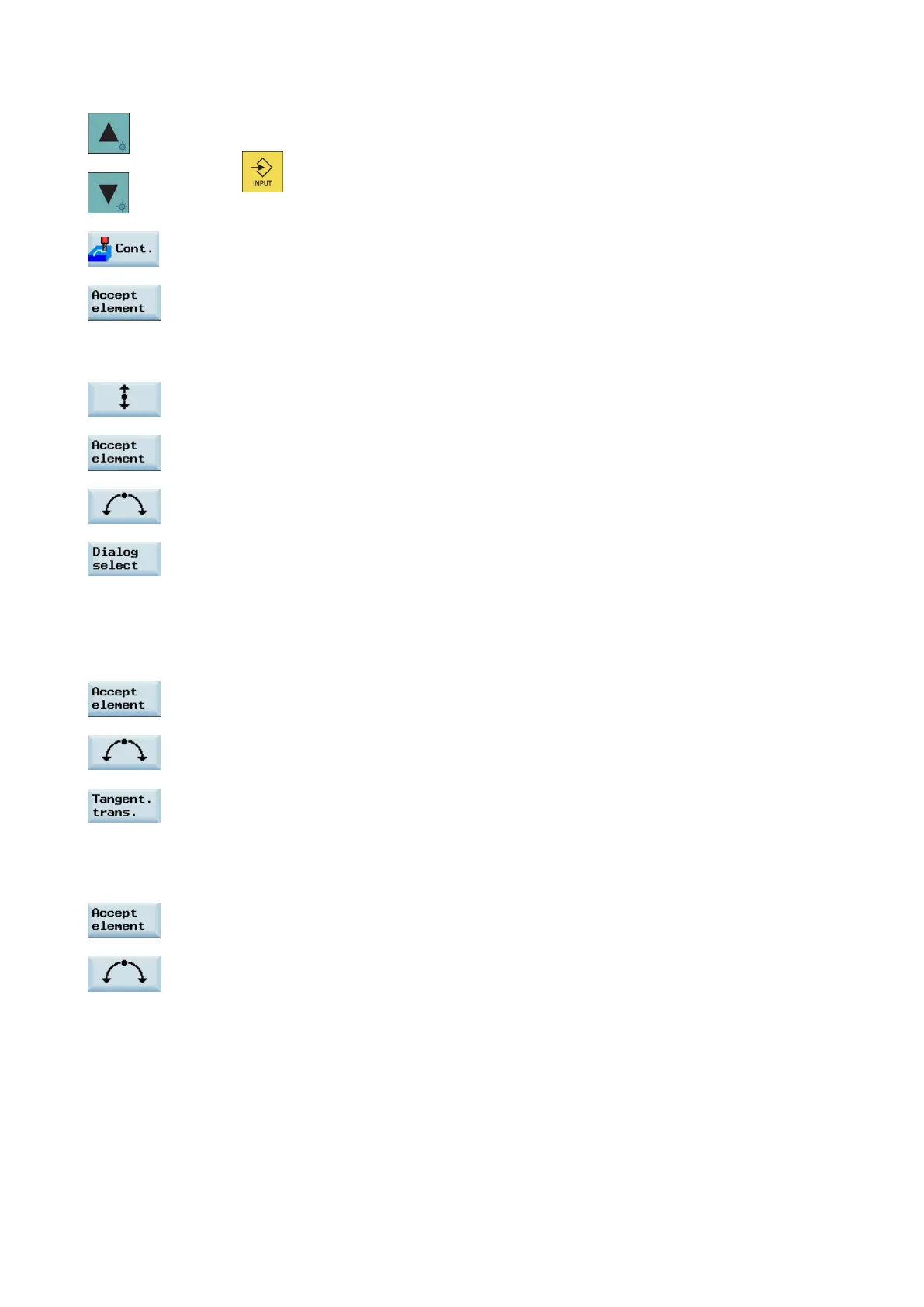

3. Select a program with cursor keys and press the following key to open the program in the program
editor.
4. Press this softkey to open the contour editor.
5. Define a start point with the following parameters and press this softkey to confirm.
● Programming plane: G17
● X: 0
●
Y: 0
6. Press this softkey to select a contour element of straight vertical line.
7. Enter the parameters for this element and press this softkey to confirm.
● Y: -104 abs.
8. Press this softkey to select a contour element of circular arc.
9. Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
● Direction of rotation: clockwise
● R: 79
● I: 0 abs.
●
β2: 30 °
10. Press this softkey to confirm.
11. Press this softkey to select a contour element of circular arc.
12. Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
● Direction of rotation: clockwise
● R: 7.5
● β2: 180 °
13. Press this softkey to confirm.
14. Press this softkey to select a contour element of circular arc.
