15. Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
● Direction of rotation: counter-clockwise
● R: 64
● X: -6 abs.
● I: 0 abs.
● RND: 5
16. Press this softkey to confirm.
17. Press this softkey to select a contour element of straight vertical line.
18. Enter the parameters for this element and press this softkey to confirm.
● α1:90 °
●
RND: 5
19. Press this softkey to select a contour element of circular arc.
20. Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
● Direction of rotation: clockwise
● R: 25
● X: 0 abs.
● Y: 0 abs.
● I: 0 abs.
21. Press this softkey to confirm.

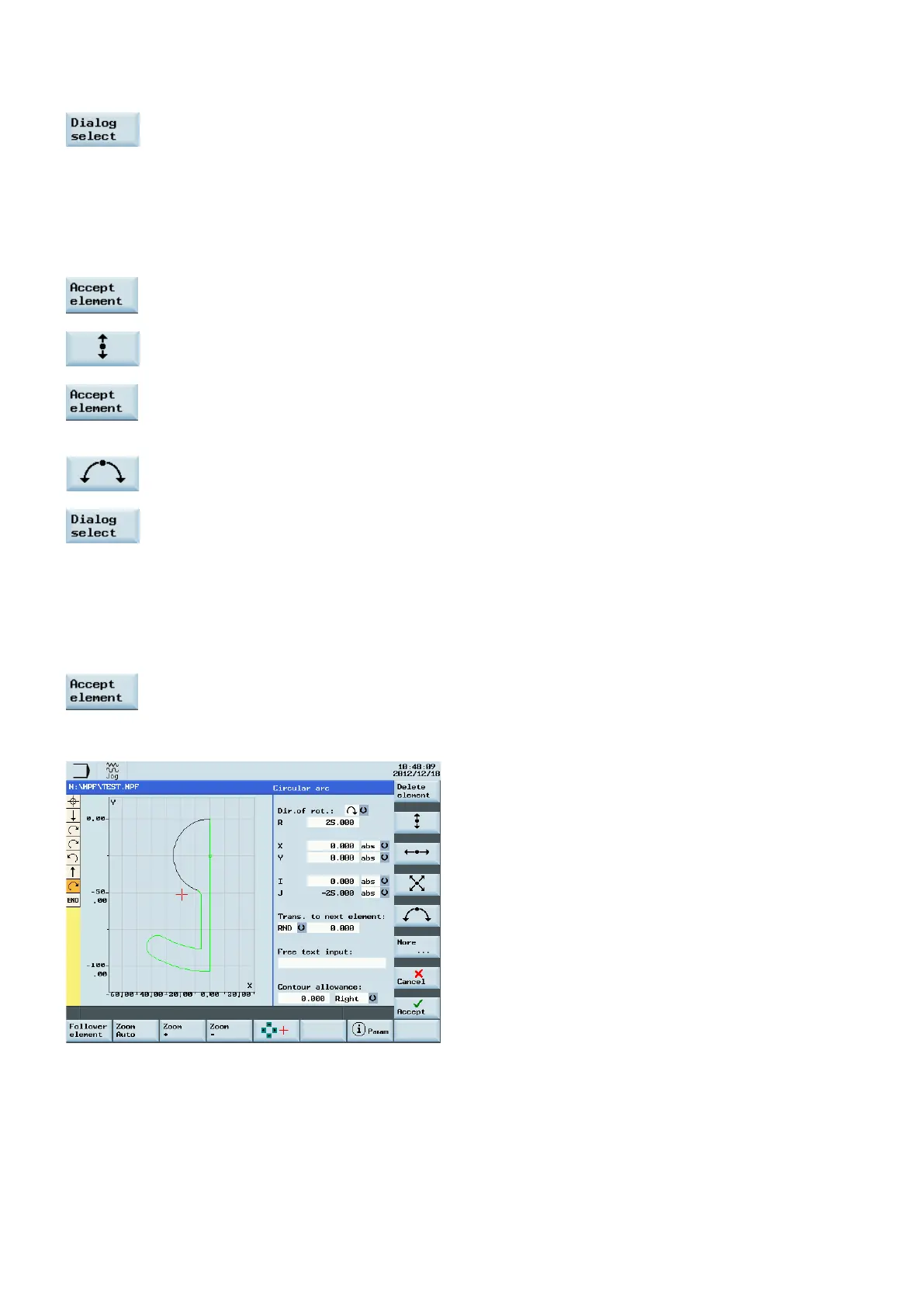

Now you can see the programmed contour in the graphics window:
