4-80 SINUMERIK 840C, OEM Version for Windows (BA)
Switch to the upper window, if necessary.
TO area
Correction number
Correction direction
(0=pos./1=neg.)
1
0
0
0
0
0
0 0.000
0.000
0.000
0.000
0.000
0.000
Preset ID No. DRF

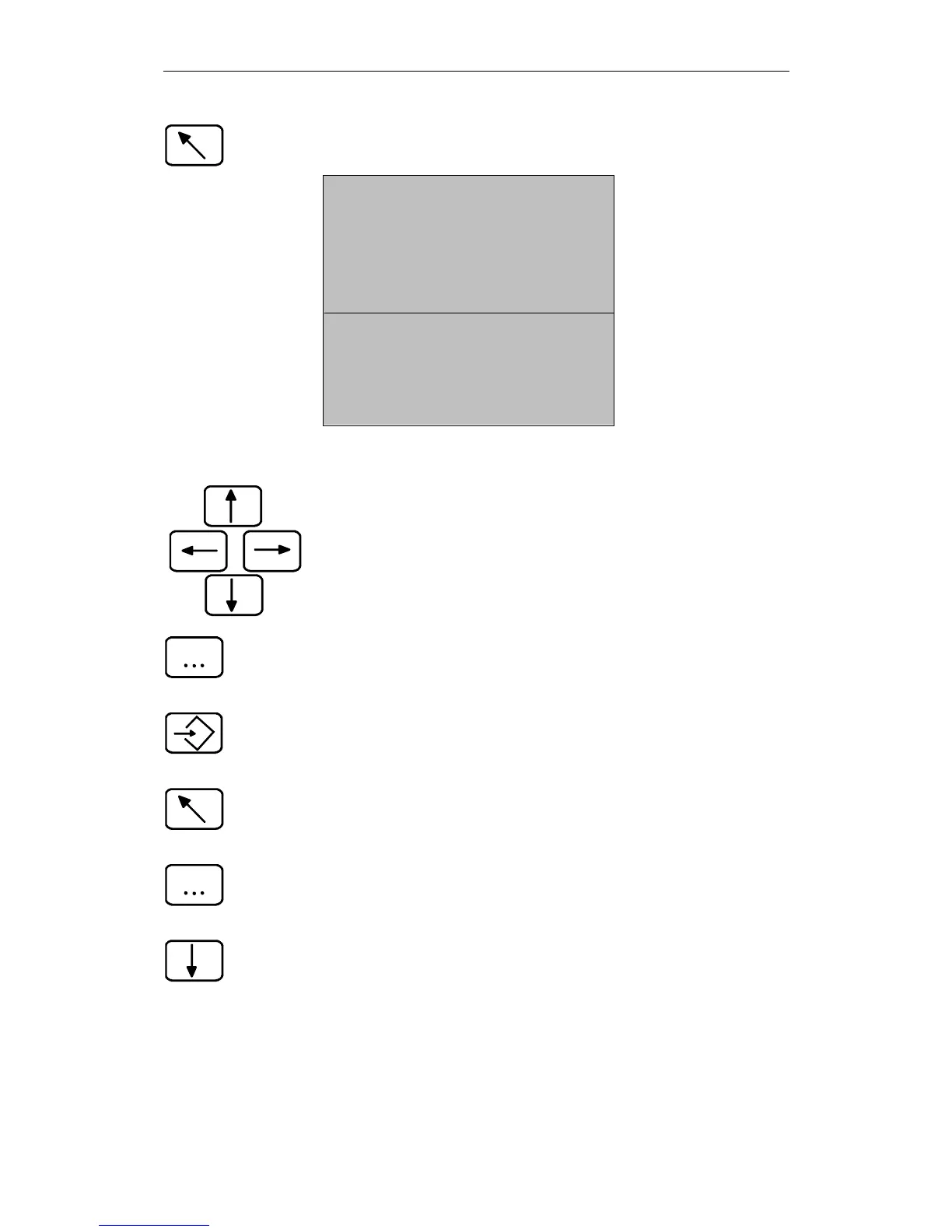

Fig. 4-38 Input window PRESET/DRF
Position the cursor to the input field for the ID number.
Enter the appropriate value via the keyboard.
Confirm your input by pressing the INPUT key
Switch to the lower input window.
Enter the value for the correction number D... via the keyboard.
Position the cursor on the correction direction input field.
