4 Machine 01.99
6FC5198-6AA60-0BP1 © Siemens AG 1999 All Rights Reserved
4-40 SINUMERIK 840C, OEM Version for Windows (BA)
4.2.5.9 Examples
Positions 1 to 5 are approached using JOG keys and saved in the part program
with the softkey GENERATE BLOCK. The editing cursor is placed on the
block with position 3. The missing positions 7 to 9 are subsequently
approached using JOG keys and similarly entered in the part program with the
softkey GENERATE BLOCK.

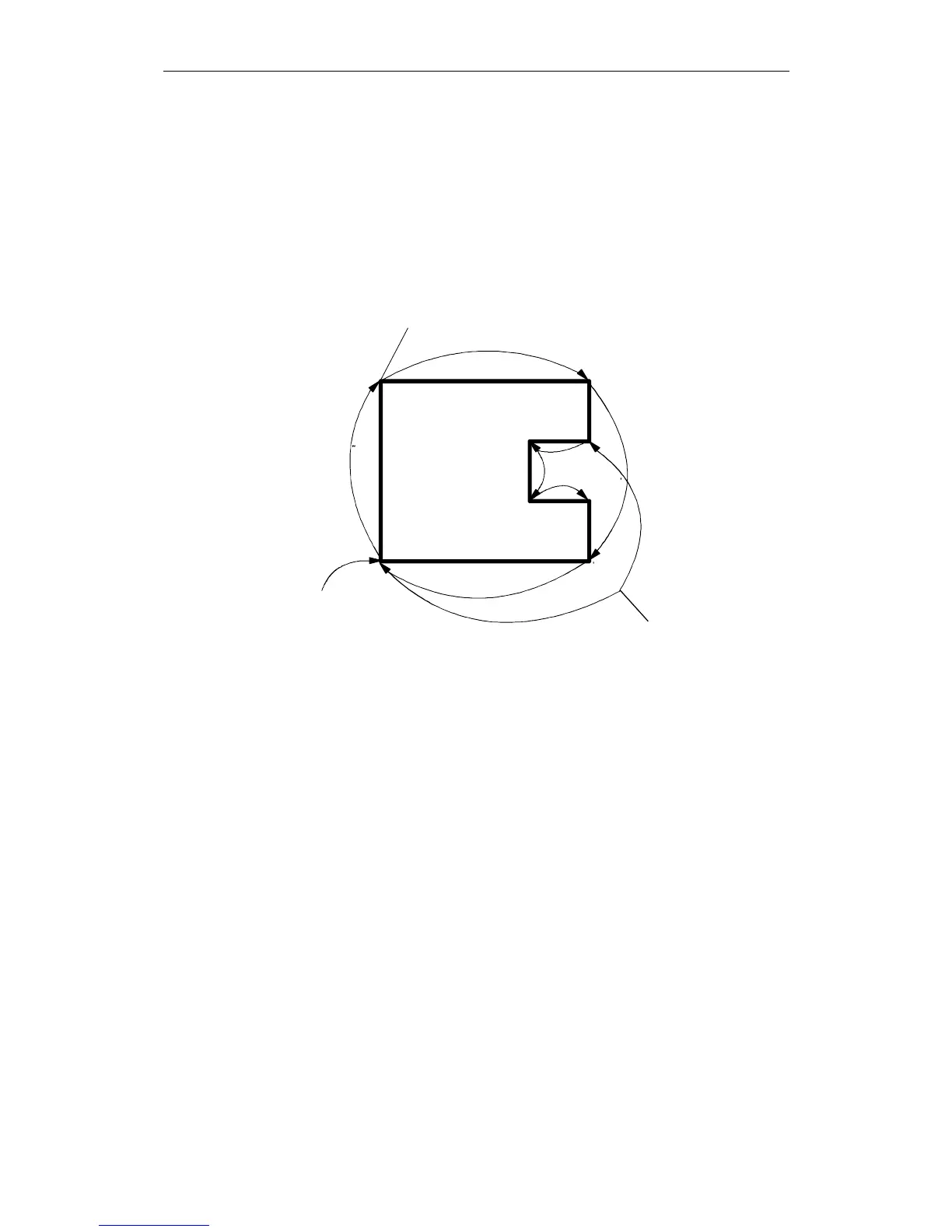

Fig. 4-17 Teach-in in edit mode
It is possible to edit the part program at any point in any order without
traversing.
Edit mode example
1
2
3
4
5
6
7
8
9
Position to be taught
Place cursor before
the 4th block
Traverse with travel keys/
handwheel
