8 Diagnosis 01.99
6FC5198-6AA60-0BP1 © Siemens AG 1999 All Rights Reserved
8-2 SINUMERIK 840C, OEM Version for Windows (BA)
8.1 Selecting Diagnosis area
To select the data manager, first press the DATA AREA key.

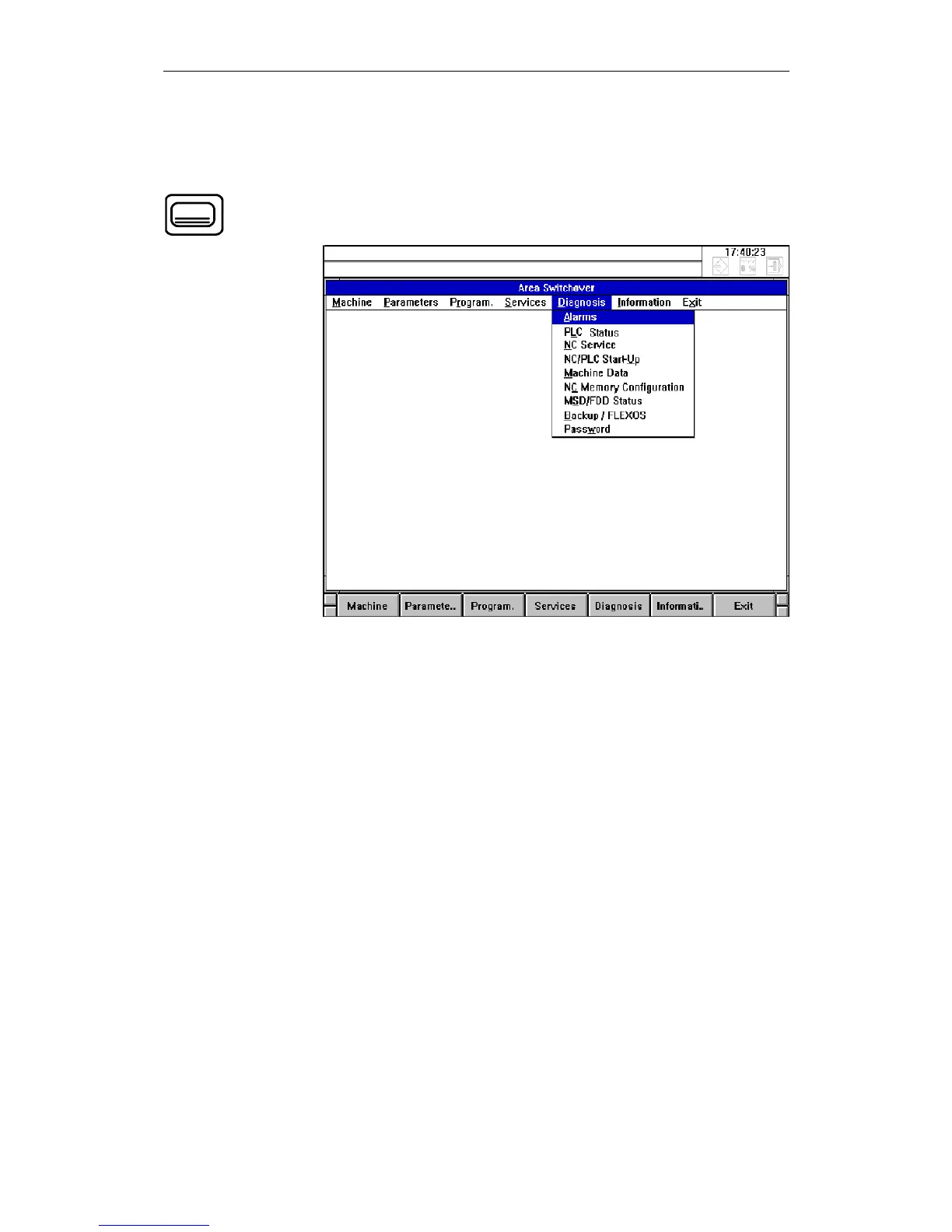

Fig. 8-1 Menu: Diagnosis
• First press the DIAGNOSIS softkey to open the Diagnosis menu.
• When the menu is open you can choose the various areas by entering the
underlined letter (hotkey) as follows:
− "A" Alarms
− "L" PLC Status
− "N" NC Service
− "U" NC/PLC Start-Up
− "M" Machine Data
− "C" NC Memory Configuration
− "S" MSD/FDD Status
− "B" Backup/FLEXOS
− "W" Password
When Area Switchover
is selected:
