5.3.5 Plane
Press the ETC key to extend the softkey bar.
With this softkey in the Program Parameters area, you select the display
menu for plane selection. The planes are preset by the machine manufacturer in
the machine data and are simply displayed here.

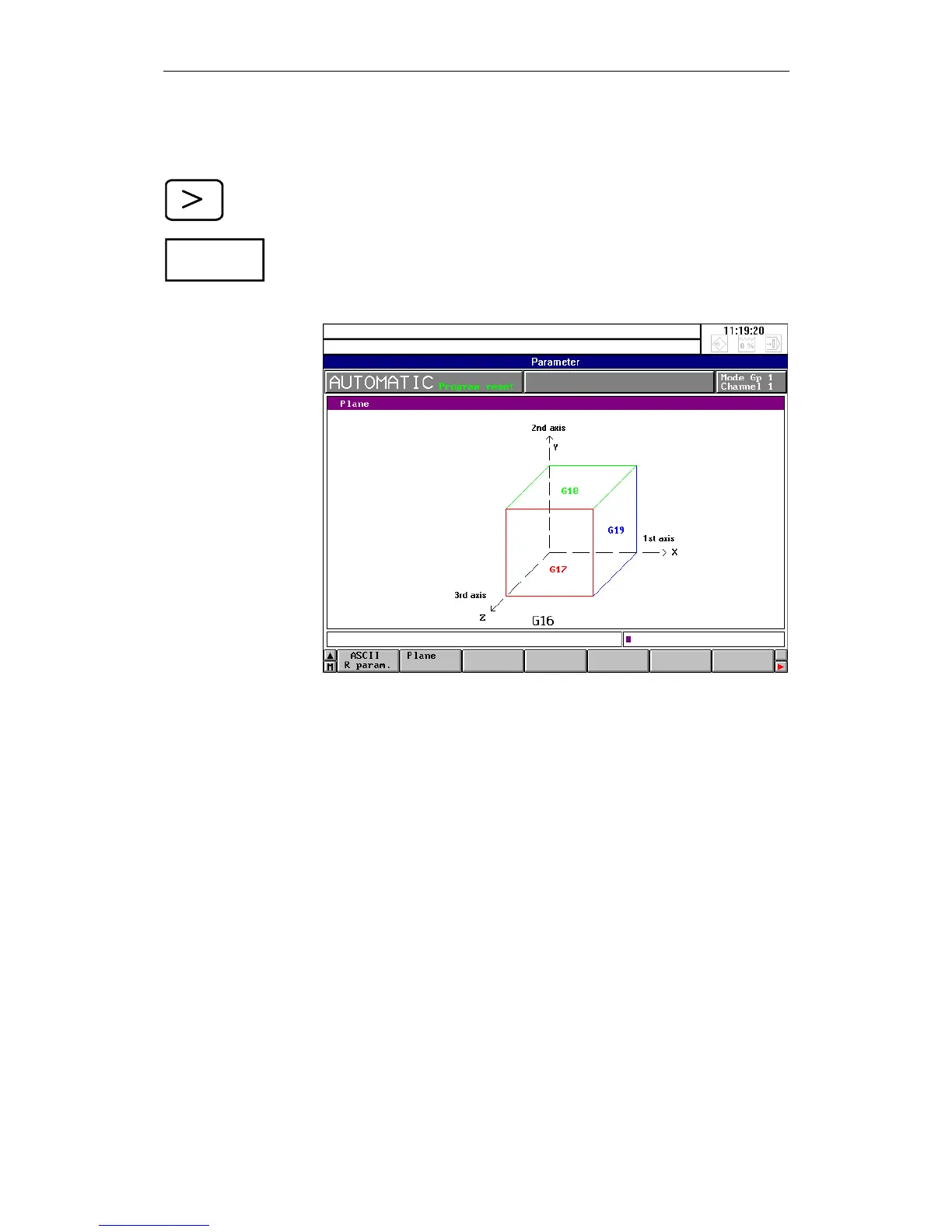

Fig. 5-10 Menu for plane selection in the parameter area
The possible planes are displayed on the screen.
Plane
