01.99 6 Programming
6FC5198-6AA60-0BP1 © Siemens AG 1999 All Rights Reserved
6-10 SINUMERIK 840C, OEM Version for Windows (BA)
6.2.2.2 Creating NCK files
Any program files in an existing workpiece on C:\LOCAL or another directory
(if access is authorized) can be created or edited with the aid of the integrated
editor WEdit.
NCK files in a FlexOS directory can only be read by the WEdit editor. They
cannot be created or edited.
• First press the EDIT key to select the combo box on the left-hand side of
the data manager.
• Open the single-line list box with the RIGHT ARROW key.
• Select the desired workpiece with the vertical ARROW keys.
• Press the INPUT key. The selected workpiece is displayed in the single-line
list box.

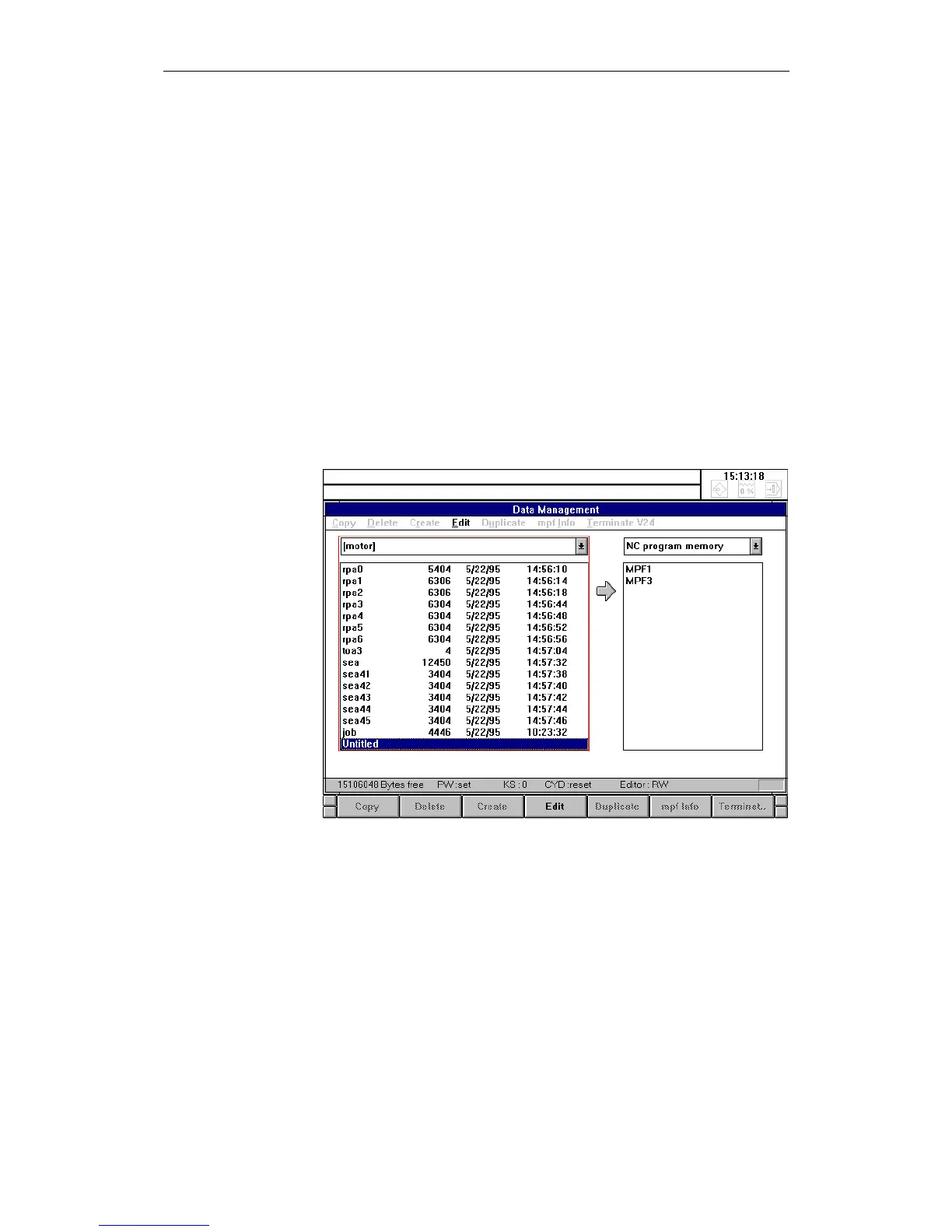

Fig. 6-5 Creating NCK files
• Press the EDIT key to switch to the lower list box.
• Use the ARROW keys to select the item in the list called "Untitled".
• Press the EDIT softkey.
The WEdit editor is started.
