4 Machine 01.99
6FC5198-6AA60-0BP1 © Siemens AG 1999 All Rights Reserved
4-12 SINUMERIK 840C, OEM Version for Windows (BA)
4.2.4.1 Traversing in JOG mode
• JOG mode (basic display) has been selected.
• Feed stop (FST) must not be active.
Feed stop can be active, for example, when
• there is no servo enable (see machine manufacturer’s documentation)
• the feedrate override switch is in the 0% position.

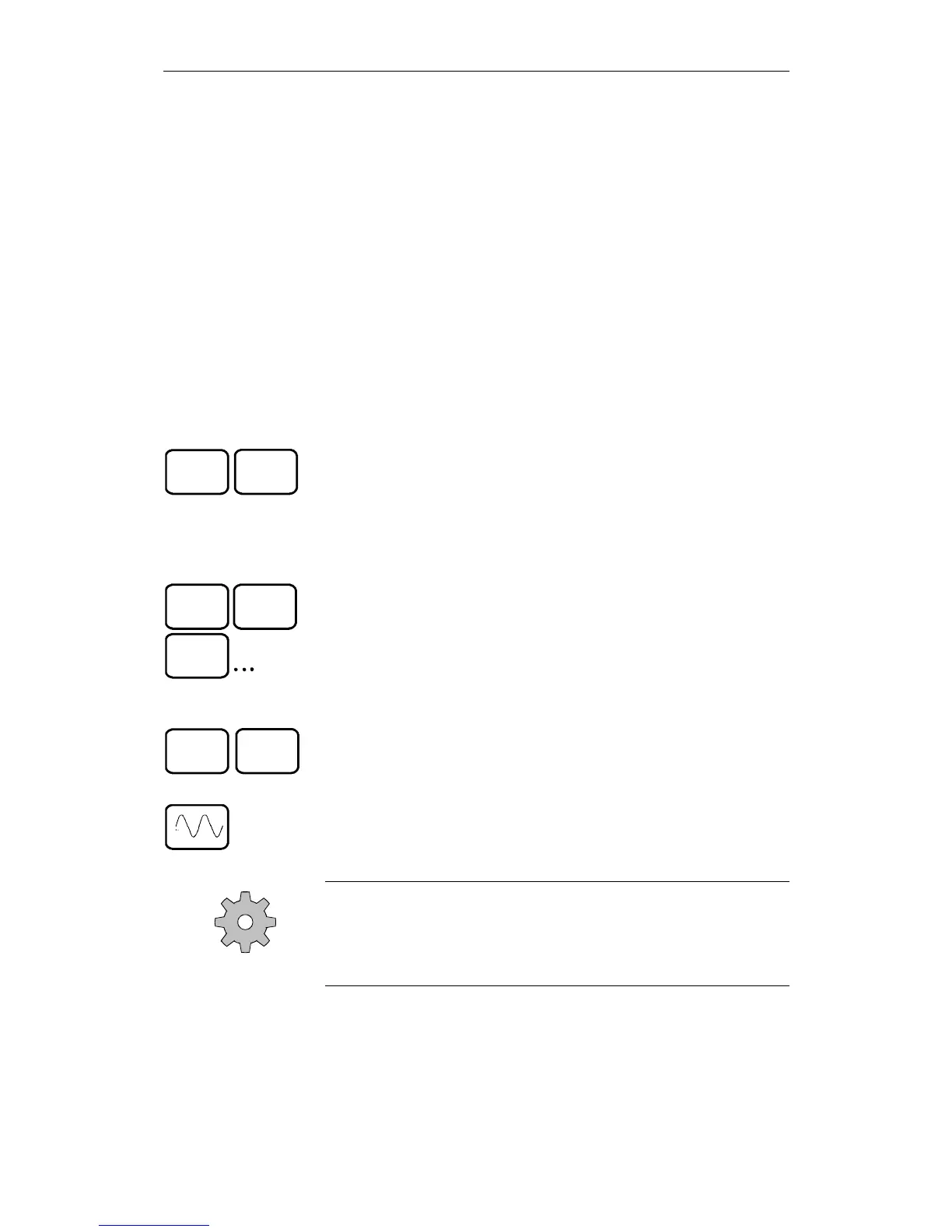

Press the direction keys to traverse the axes.
Select the axes.
Press these keys to traverse the selected axis in the respective direction.
If you press the key RAPID OVERRIDE as well, you traverse the selected axes
at rapid traverse speed.
Machine manufacturer
The axis speed and rapid traverse speed are specified by the machine
manufacturer. The axis speed override can also be effective for rapid traverse
in the range of 0% to 100%.
Preconditions
Operating
sequence
840C machine control
panel for turning
machine
+X
-X
840C machine control-
panel for milling
machine
X Y
Z
+
-
