6.3.4 Program input with operator support
Select a program and press the softkey EDIT.
Then press the softkey SUPPORT and enter the program with the operator
support function.
This means:
Entering an opened program with menu guidance where frequently recurring
input functions are presented as a menu.
Choose operator support by calling up the SUPPORT function. After pressing
the associated softkey, the following softkey functions are displayed:
Contour Turning Drilling and
Milling
Plane
After pressing the CONTOUR softkey, the following display appears in which
you can select contour elements.

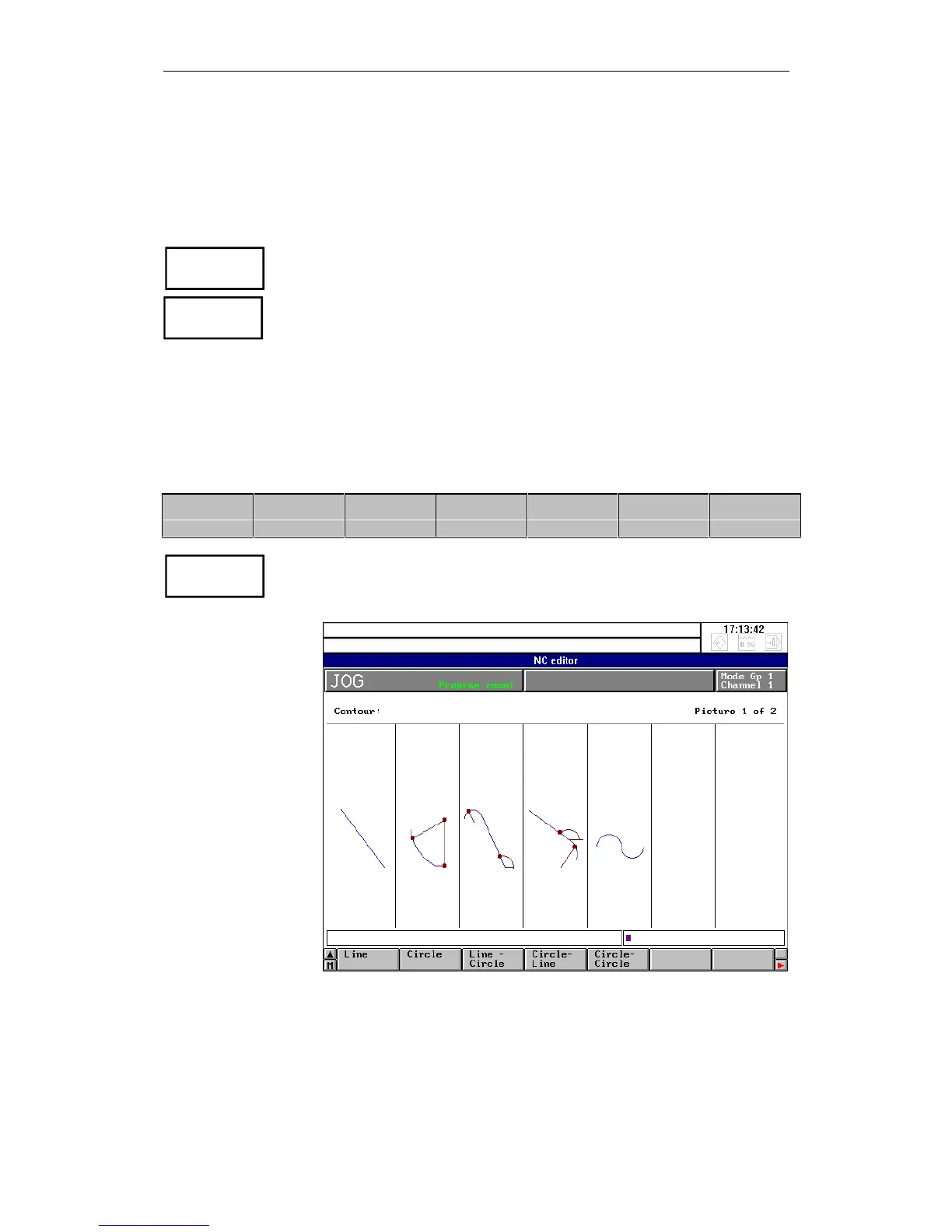

Fig. 6-33 Contour definition programming in the PROGRAMMING area
Operating
sequence
Edit
Support
Contour
