6 Programming 01.99
© Siemens AG 1999 All Rights Reserved 6FC5198-6AA60-0BP1
SINUMERIK 840C, OEM Version for Windows (BA)
6-9

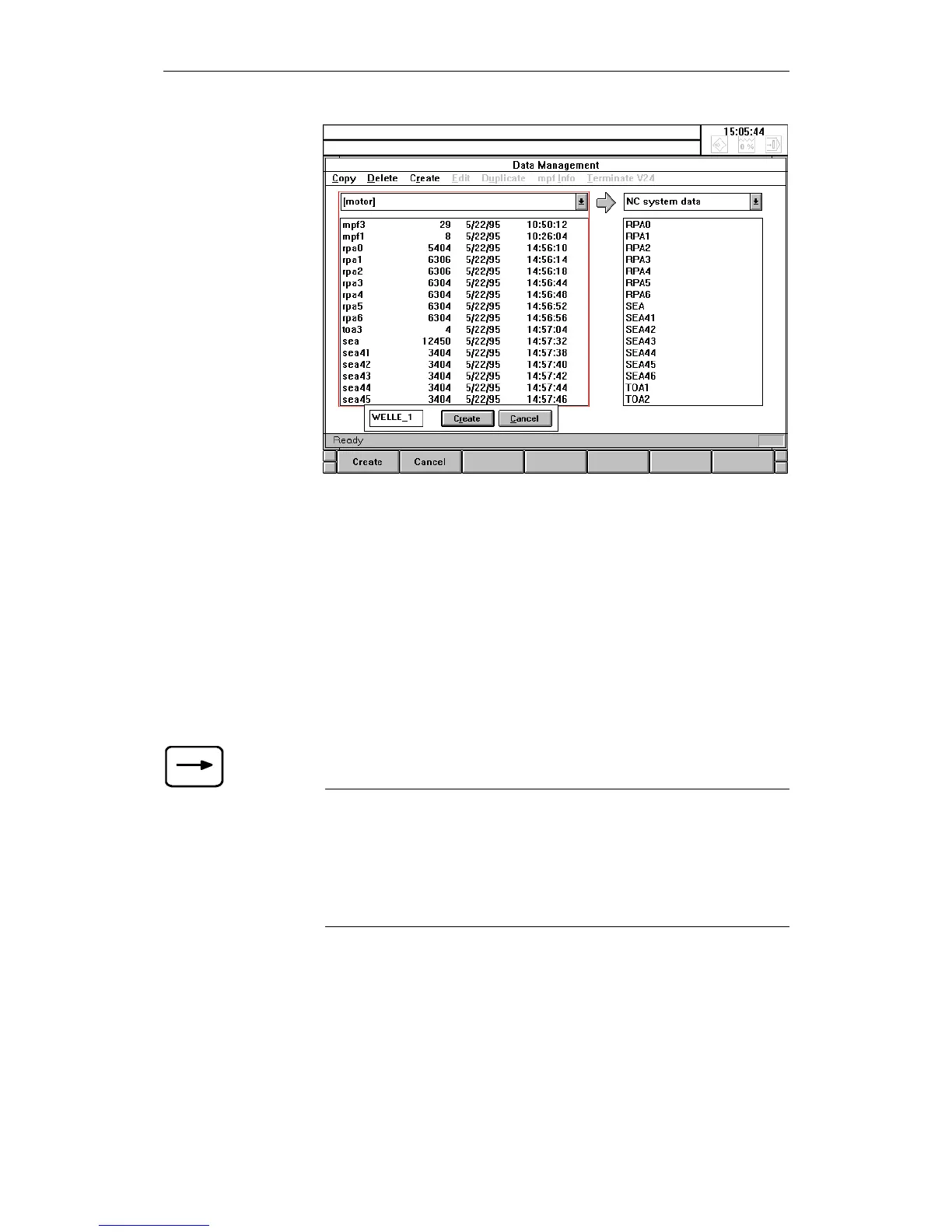

Fig. 6-4 Creating workpieces
• Select the desired workpiece directory in the list field. When starting a
dialog, an additional list field with the possinble workpieces is displayed.
The workpiece which has been activated in the active combo box before
executing the function is selected.
• Select the desired workpiece in the list field.
• In the left-hand text box, enter the name of the workpiece to be created
(WELLE_1 in the above example).
• Press the CREATE softkey.
A workpiece with the desired name is created in the workpiece directory
selected and displayed in the single-line list box.
You can use the RIGHT ARROW key to open single-line list boxes.
Note
By entering the workpiece name (e.g. WELLE_1), you have simply created a
subdirectory for the workpiece type in the workpiece directory selected. A
standard job list is also created automatically.
Up to 250 files can be stored in a workpiece.
You can also store the data described in section 6.2.1 in a workpiece.
