01.99 5 Parameters
© Siemens AG 1999 All Rights Reserved 6FC5198-6AA60-0BP1
SINUMERIK 840C, OEM Version for Windows (BA)
5-27

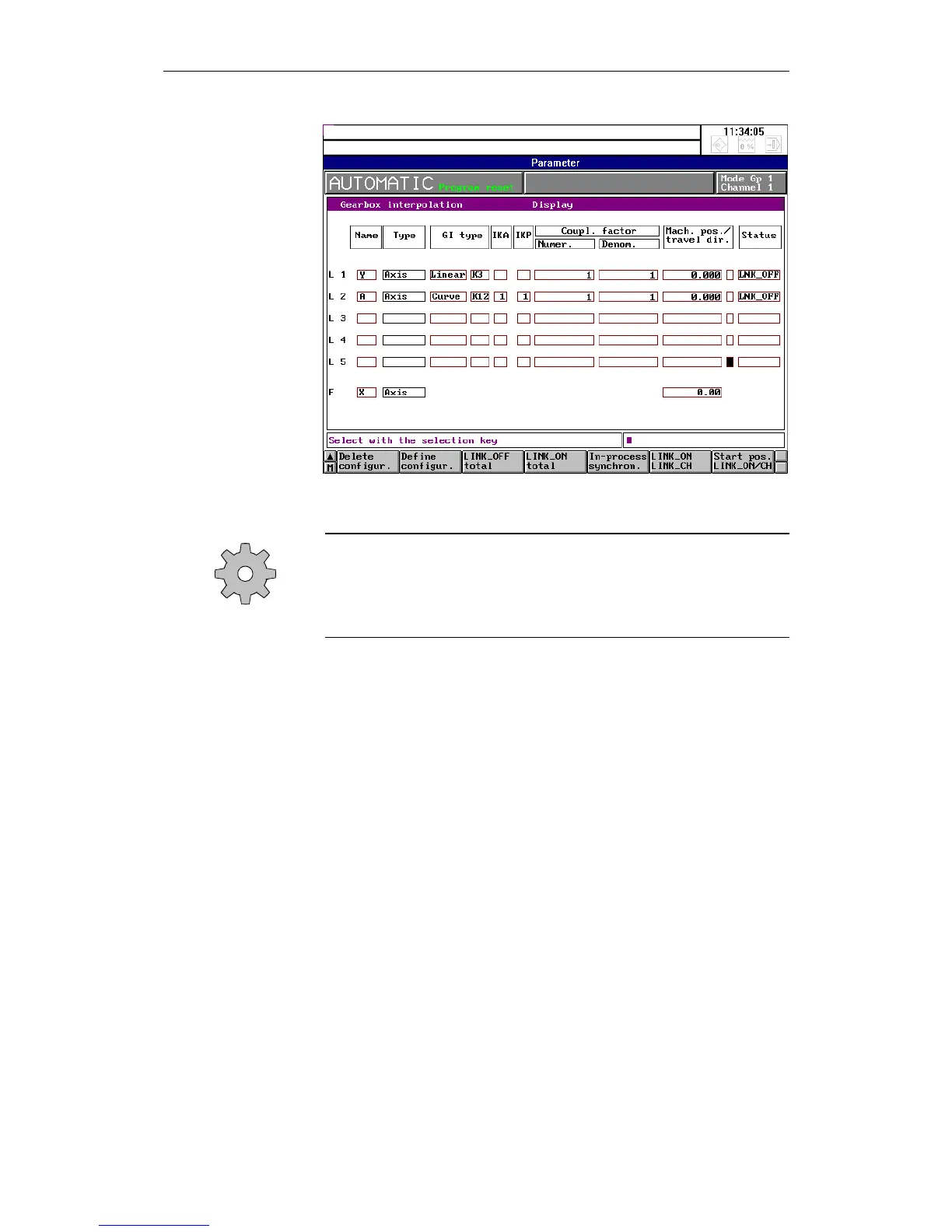

Fig. 5-13 Gearbox interpolation
Machine manufacturer
The function gearbox interpolation must be configured by the machine
manufacturer (machine data).
Please consult the machine manufacturer’s documentation.
Input field for the axis/spindle names. When you enter the names, the system
checks that the axes/spindles are also defined in the mode group. The system
also checks whether following axes/spindles are real axes/spindles.
You cannot enter the axis type. The axis type (axis or spindle) is entered by the
system according to the axis/spindle name.
The toggle field GI type offers the following options:
• Linear (K01 ... K04)
• Curve (K11 and K12)
The link structure for the GI type linear can be selected by toggling between
the options in the right-hand field. The following options are provided:
• K1: Setpoint position link
• K2: Actual position link
• K3: Setpoint position link with simulated actual values of the main axis/
spindle, i.e. no compensation control possible
• K4: Setpoint speed actual position link
Description of the
fields
Axis name
Axis type
GI type
