01.99 6 Programming
6FC5198-6AA60-0BP1 © Siemens AG 1999 All Rights Reserved
6-22 SINUMERIK 840C, OEM Version for Windows (BA)
• Select the right-hand combo box with the EDIT key and open it.
• Use the ARROW keys to position the selection bar on the workpiece to
which the file is to be copied (in the example [welle_1]) and press the
INPUT key.
• Select the left-hand list box with the EDIT key and position the selection
bar on the file to be copied (mpf123 in the example).

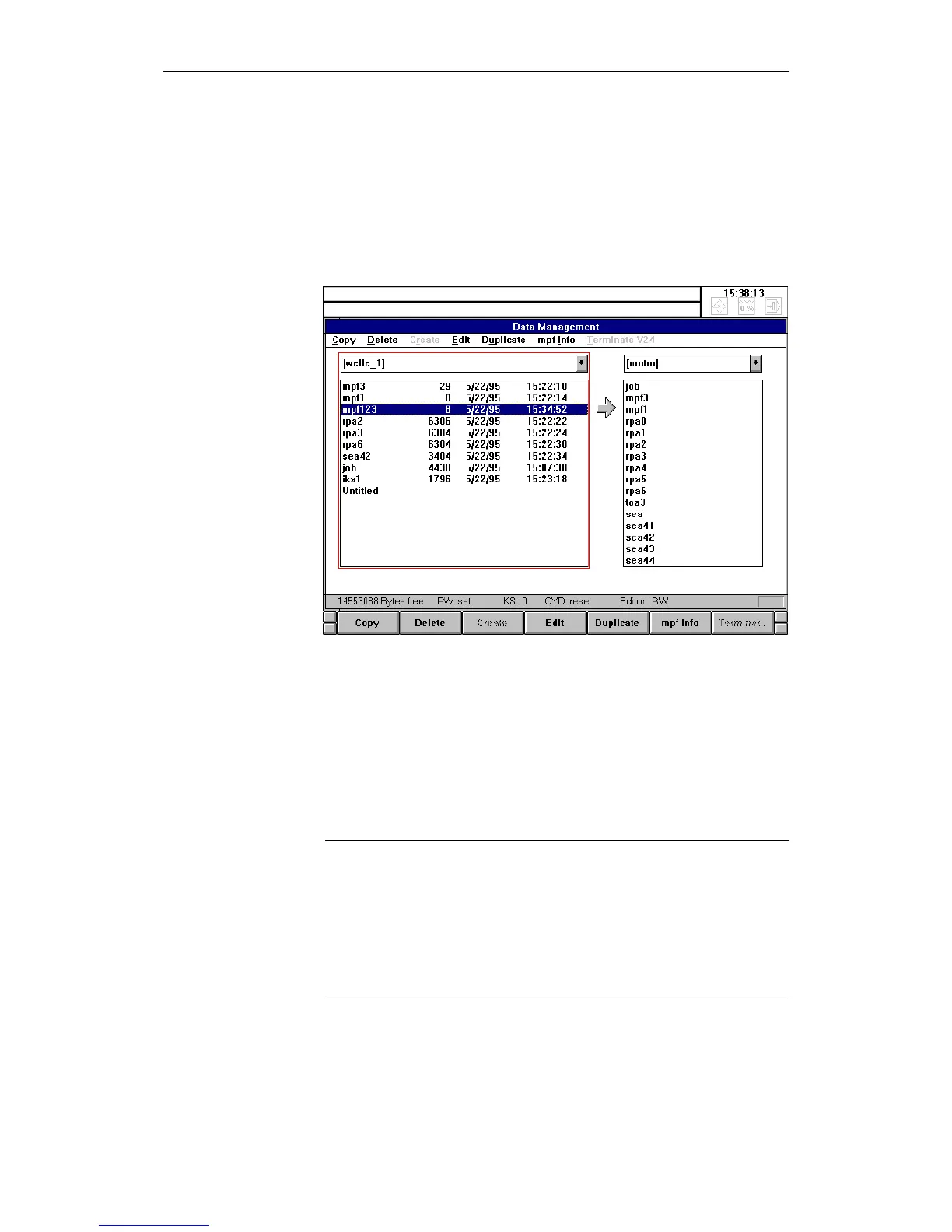

Fig. 6-9 Copying data
• Press the COPY softkey.
The file is copied under the same name to the selected workpiece and displayed
in the appropriate list box.
If a file with the same name already exists in the destination workpiece, a
dialog box prompts you to confirm whether the existing file is to be
overwritten. Press the YES softkey to overwrite the existing file, otherwise
select NO.
Note
This function can be used to transfer a complete workpiece with all files from
the hard disk to an external "device" such as a diskette drive or serial
interface.
If you change to another application when a message box is displayed by the
data management, the data management can be selected again only via the task
manager (see section 3.3).
