Siemens SINUMERIK 840C Operator's Guide

2 Operator Interface 01.99
6FC5198-6AA60-0BP1 © Siemens AG 1999 All Rights Reserved
2-4 SINUMERIK 840C, OEM Version for Windows (BA)

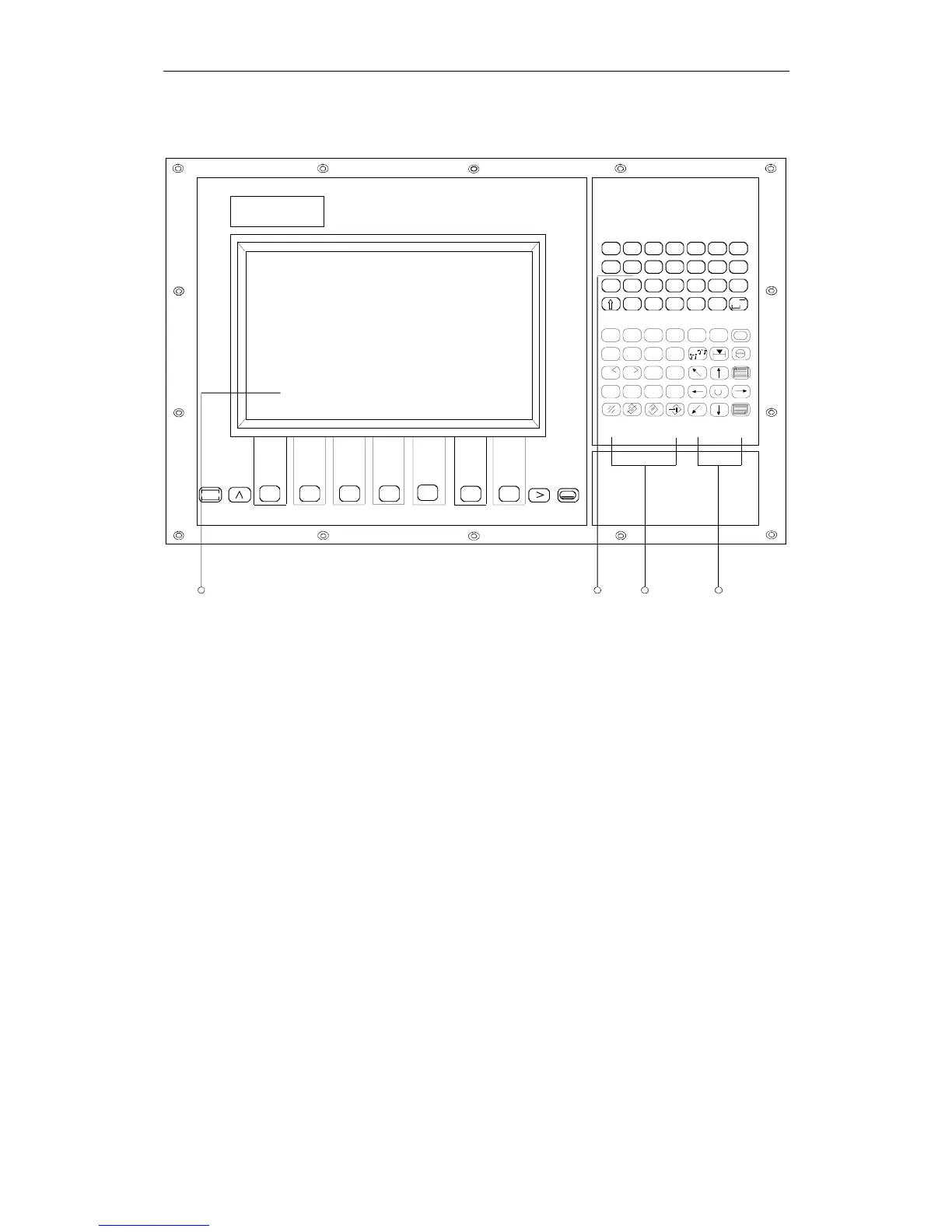

Fig. 2-2 SINUMERIK 9.5"/10" slimline operator panel
A: 14"/10"/9.5 colour graphics monitor
14 softkeys
ETC key, Recall key
Machine area key
Area switchover key
B: Alphabetic group of keys
C: Numeric group of keys with editing and input keys
D: Cursor group of keys with control keyboard
A B C D E F G
H I J K L M N
O P Q R S T U
V W X Y Z
7
(
8
)
9
:
/
"
4
[
5
]
6
?
*
’
1 2 3
!
-
^
=
@
0
;
.
+/-
+
,
%
LF
Alt
\
i
SIEMENS
SINUMERIK
M
A
B
CD
