01.99 2 Operator Interface
© Siemens AG 1999 All Rights Reserved 6FC5198-6AA60-0BP1
SINUMERIK 840C, OEM Version for Windows (BA)
2-19

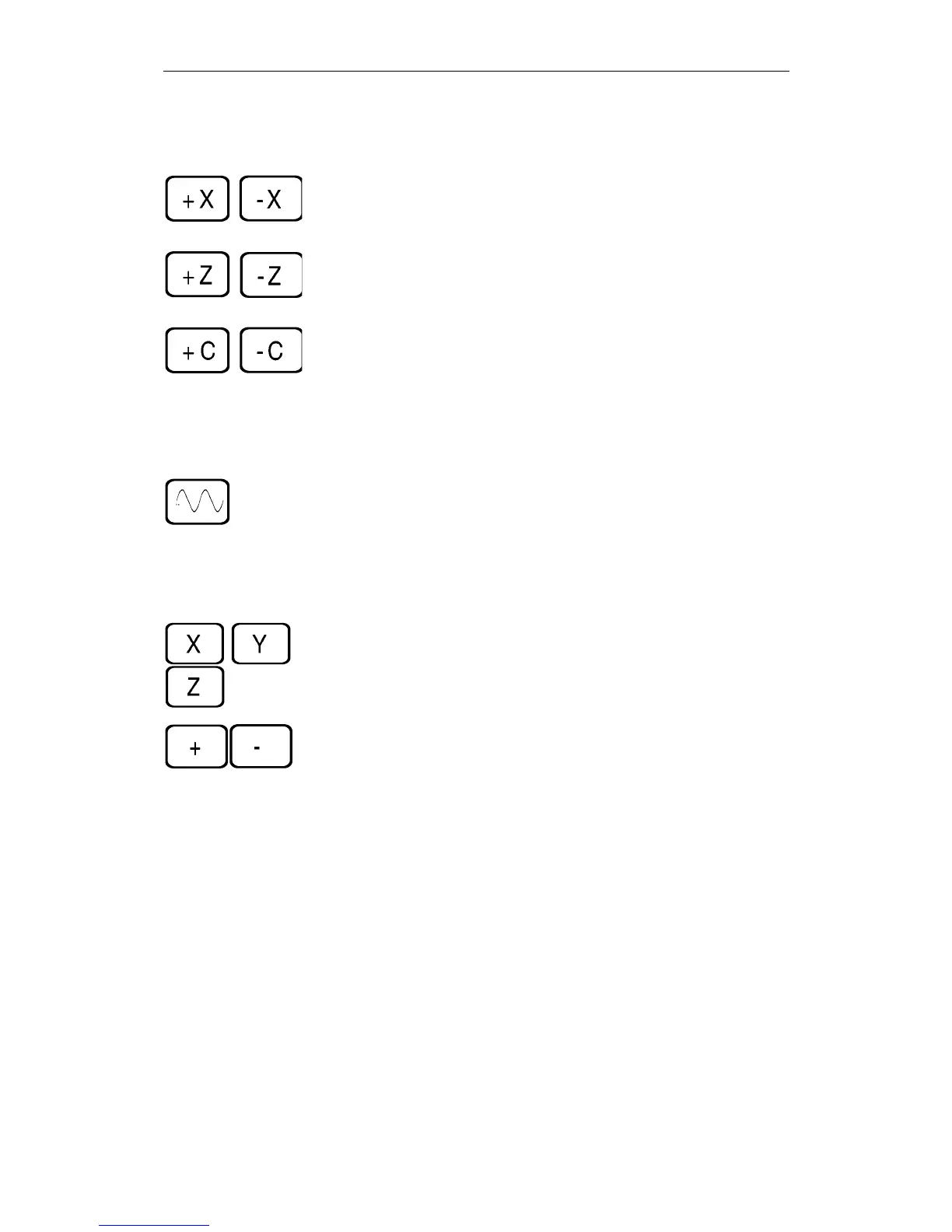

You traverse the axis marked X.
You traverse the axis marked Z.
You traverse the axis marked C.
When you operate this key at the same time as any of the keys above, the axis
is traversed in rapid traverse mode
You select the axis marked X, Y, Z etc.
You traverse the selected axis in positive or in negative direction.
You traverse other assigned axes in the same way.
If an INC function has been set and the direction key is pressed (whether for a
long or a short time), the axis traverses by only one step (1/10/100/1000/10000
increments depending on the setting).
If an INC function is not selected, the default setting continuous is active. The
axis traverses as long as the direction key is pressed.
Please take into consideration that when the safety interlocks are enabled only
the simple traverse movement via the JOG keys or via the handwheel is
permitted.
Direction keys,
turning machine
Rapid traverse
overlay
Direction keys,
milling machine
