Programming PLC Functions
4.7 User status display (OEM)
HMI Advanced (IM4)
130 Commissioning Manual, 03/2009, 6FC5397-0DP10-3BA0
● Combination thereof with a maximum total of 32 images for the maximum 16 positions
(maximum of 16 active selection bits at any one time)
● More than 16 selection bits:
Superimposition
With a non-unique selection (bits for multiple identifiers whose image is to be displayed at
the same position):
The image with the lower identifier number is superimposed with the image with the higher
identifier number for the same position. Non-unique selection can also be used with less
than 16 active selection bits. The PLC can deliberately use this superimposition to overlay
less important displays (with lower identifier numbers) with important displays (high identifier
numbers).
Note
If two HMI units are assigned to one NC/PLC unit (M:N), the PLC must first determine from
the control interface which of the HMI interfaces is active. Icons can be requested by the
PLC for the active HMI unit only.
Configuring OEM texts
The machine manufacturer can display his own texts in the program directory and program
name lines. These texts cannot include % parameters as is possible in user texts. The lines
are divided into <OEM_NUMBER_TEXTFIELD> areas according to the entry in
HEADER.INI.

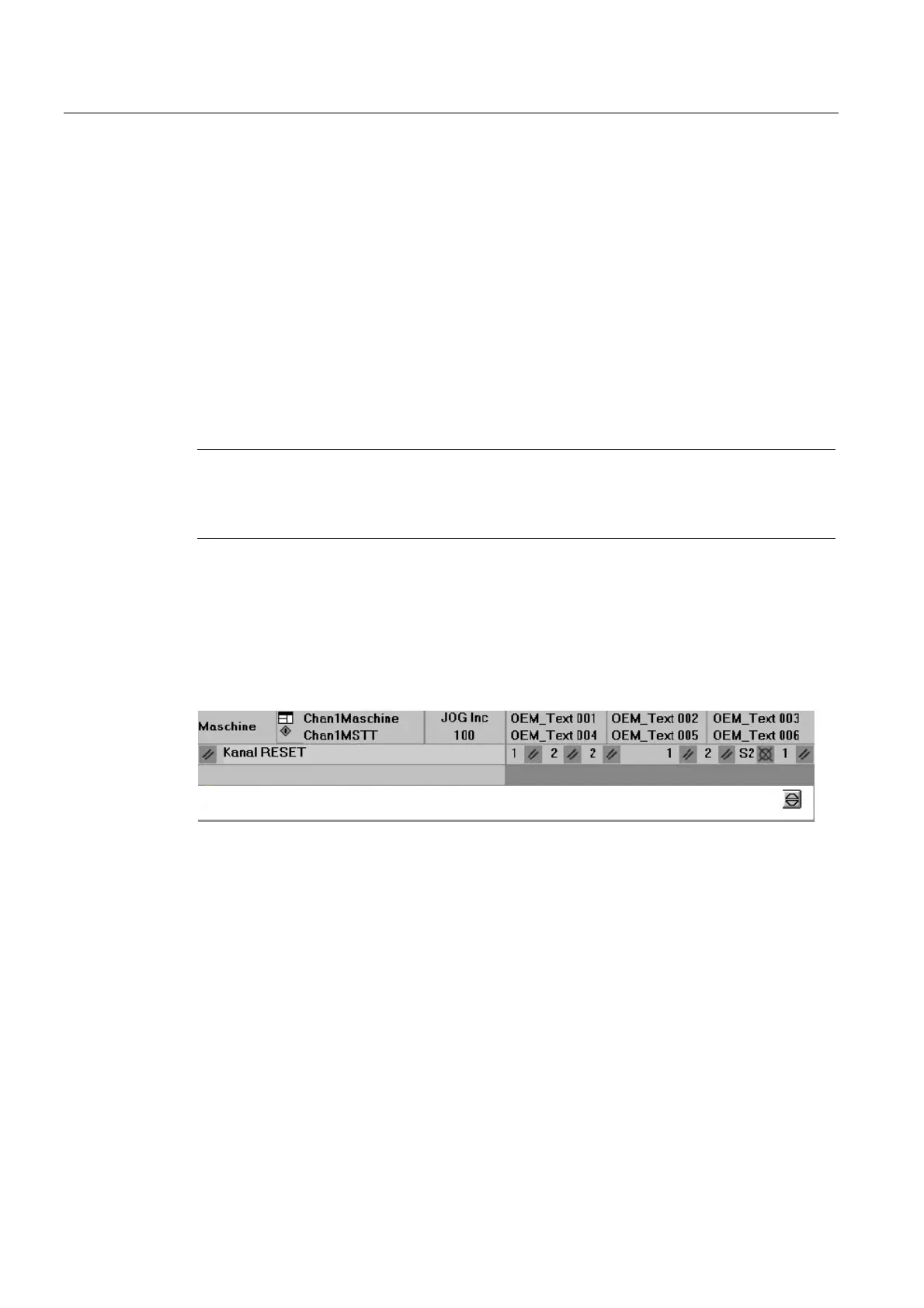

Figure 4-4 Example for OEM text
The data are provided in a user PLC DB. The number of the data block and the exact offset
are declared in the HEADER.INI file. The following entries are available in the [OEMTextInfo]
section for this purpose.
[OEMTextInfo]
OEM_NUMBER_TEXTFIELD = 1 ; maximum of 3 text fields per line
OEM_TEXT_BASE = DBx.DBBy
