Diagnostics and service
5.1 Installing HMI software on a PG/PC
HMI Advanced (IM4)
138 Commissioning Manual, 03/2009, 6FC5397-0DP10-3BA0
5.1.4 Operating the desktop switch application
Overview
The user interface for the desktop switch application can be configured:
● Keyboard hotkeys
● Dialog window
● Icons in the task bar
Hotkeys:
<Alt+1> Switches to desktop 1 (standard user desktop)
<Alt+2> Switches to desktop 2 (HMI-Advanced desktop)
<Alt+3> Switches to desktop 3 (optional additional user desktop)
<Alt+4> Switches to desktop 4 (optional additional user desktop)
Starting HMI_Advanced in a separate desktop:
1. First start a second desktop, then HMI-Advanced:

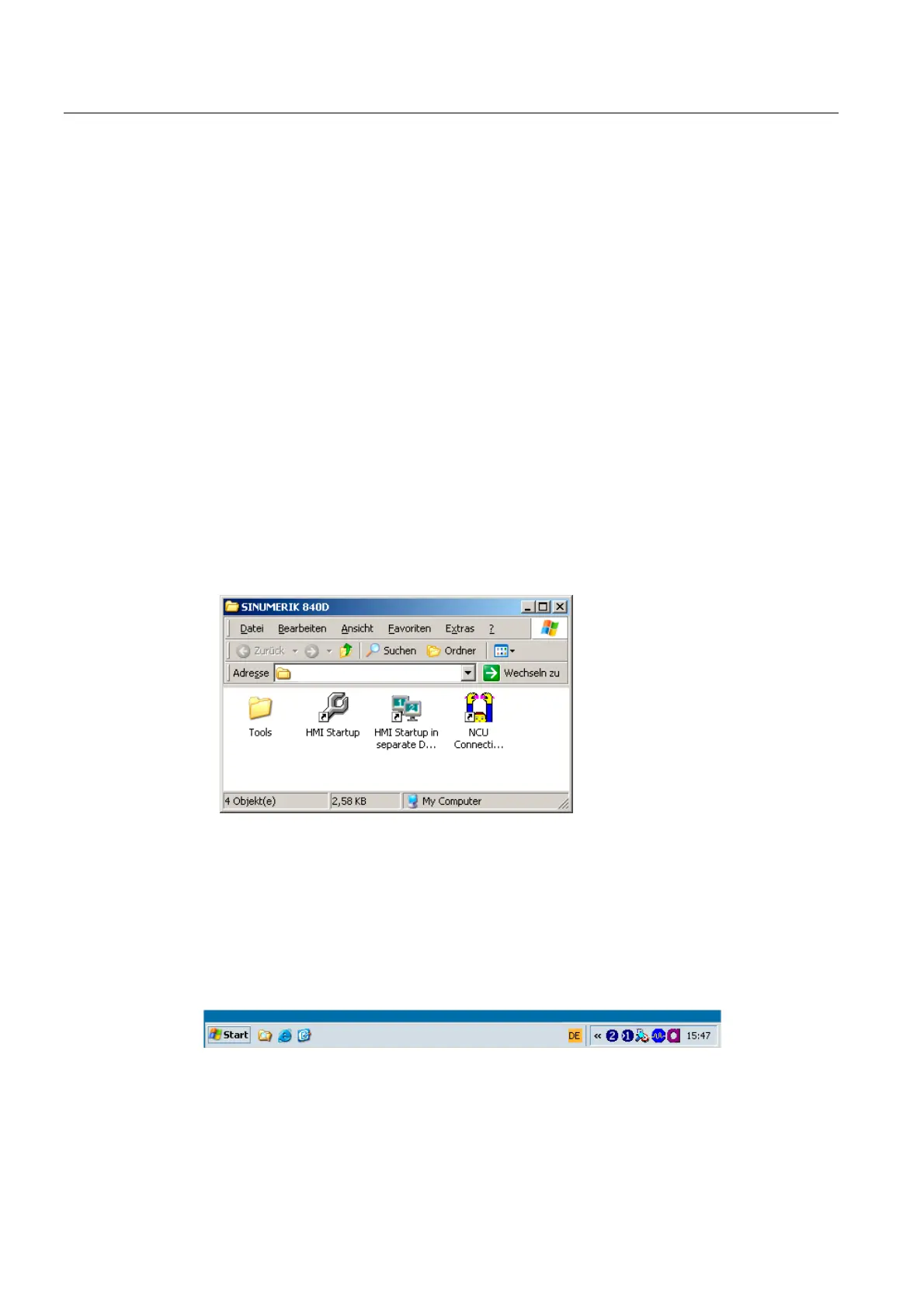

Figure 5-2 Linking to the desktop switching application
2. Switching by clicking on the corresponding desktop number:
1 Standard desktop
2 Desktop with HMI-Advanced
(3, 4) Other optional desktops
↑ Displaying the desktop ↑ Changing over the active desktop
