Siemens SINUMERIK Commissioning Manual

HMI Advanced (IM4)
Commissioning Manual, 03/2009, 6FC5397-0DP10-3BA0
169
Tool management
6
6.1 Setting tool management parameters on the HMI
6.1.1 How to create a real magazine
Creating real magazines
In this screen, magazines are defined with the appropriate data or displayed with existing
data.

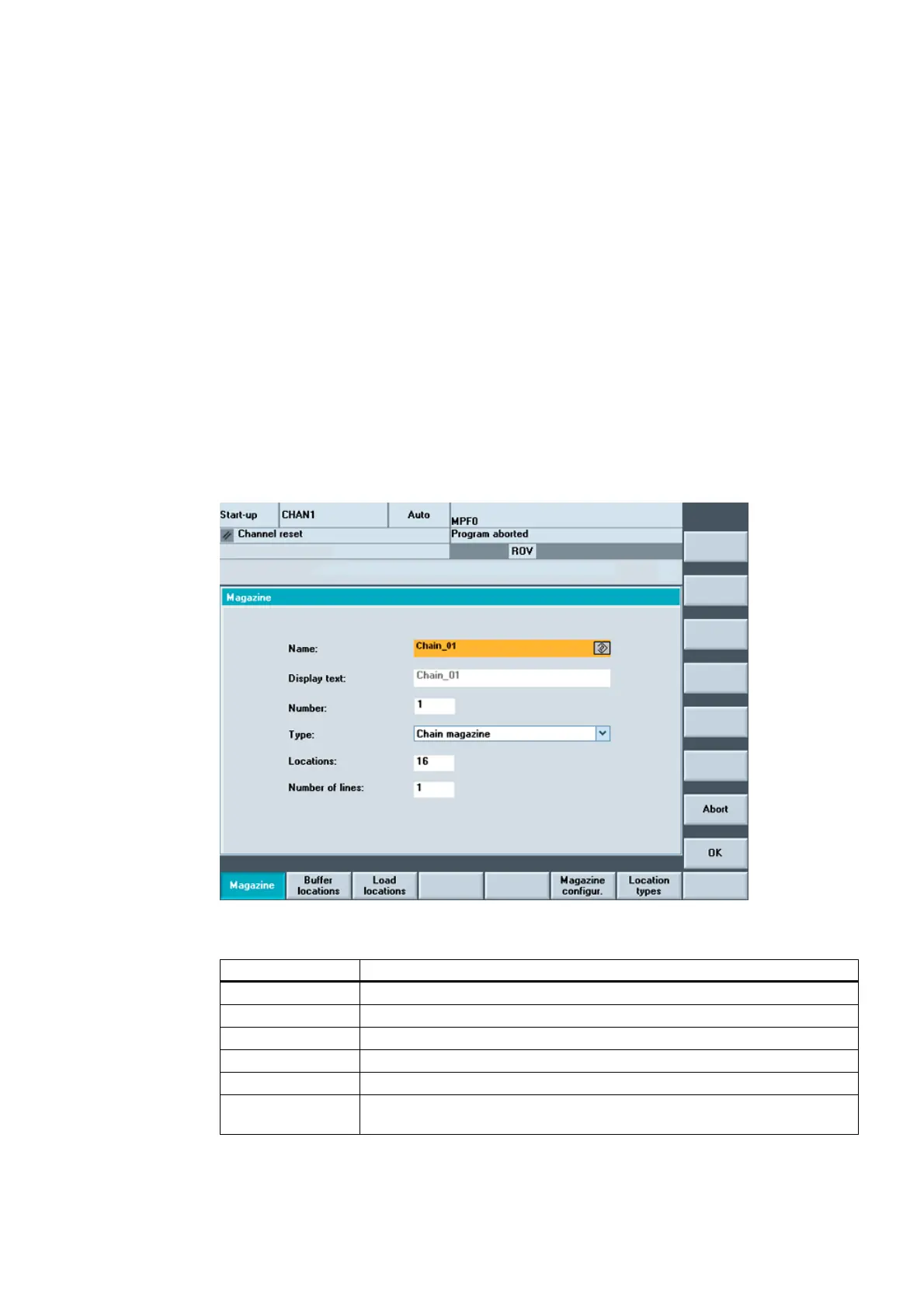

Figure 6-1 Start-up: Magazines
Magazines
Name Enter a new name or select an existing name for the real magazine.
Display text Language-dependent name of the magazine
Number Display of the current magazine number
Type Selection of a magazine type (chain magazine, revolver, box-type magazine)
Locations Enter or display the number of magazine locations.
Number of columns The "number of columns" is required for considering adjacent location and is
only relevant for box-type magazines.
