4.6 Cross-channel status display
HMI Advanced (IM4)
124 Commissioning Manual, 03/2009, 6FC5397-0DP10-3BA0
4.6 Cross-channel status display
Function
The status of the following components can be output with icons in the status line (in the
header):
● Channels
● Spindles
● Machine states
In addition to SINUMERIK icons, manufacturer-defined icons can also be configured in the
file HEADER.INI file and in DB19 DBB32-34.
SINUMERIK icons

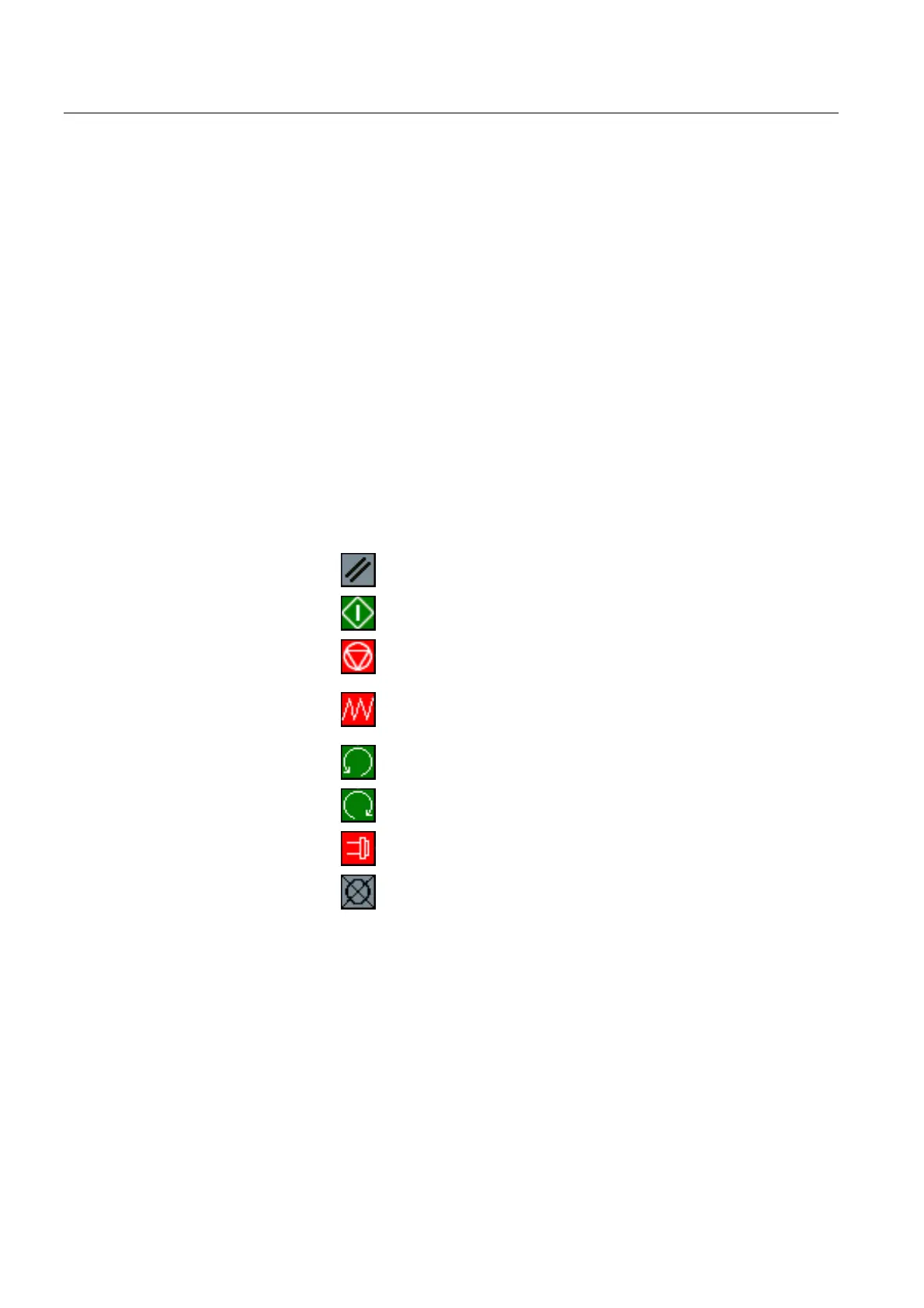

The following SINUMERIK icons with the TrueColor color setting are available (file name in
brackets):
Channel status
Channel RESET
Channel active
Channel interrupted
(NC_RESET.BMP)
(NC_START.BMP)
(NC_STOP.BMP)
Feed stop
Feed is not enabled (FEEDSTOP.BMP)
Spindle status
Spindle is turning counter-clockwise
Spindle is turning clockwise
Spindle not enabled
Spindle STOP
(SPNDLEFT.BMP)
(SPNDRGHT.BMP)
(SPNDSTOP.BMP)
(SPNDM05.BMP)
Storing the SINUMERIK icons
The SINUMERIK icons are stored in
● F:\HMI_ADV\ICONS\640 (for 640x480 screen)
● F:\HMI_ADV\ICONS\800 (for 800x600 screen)
● F:\HMI_ADV\ICONS\1024 (for 1024x768 screen)
