Programming PLC Functions
4.7 User status display (OEM)
HMI Advanced (IM4)
132 Commissioning Manual, 03/2009, 6FC5397-0DP10-3BA0
Each bit in this double word represents exactly one OEM icon corresponding to the screen
number. Thus, if bit 0 is set, bit map OI_0 is displayed. If a bit is reset, the associated bit map
is deleted.
A maximum of 16 icons can be displayed, enabling a total of 16 display positions. Empty
positions need not be specified.

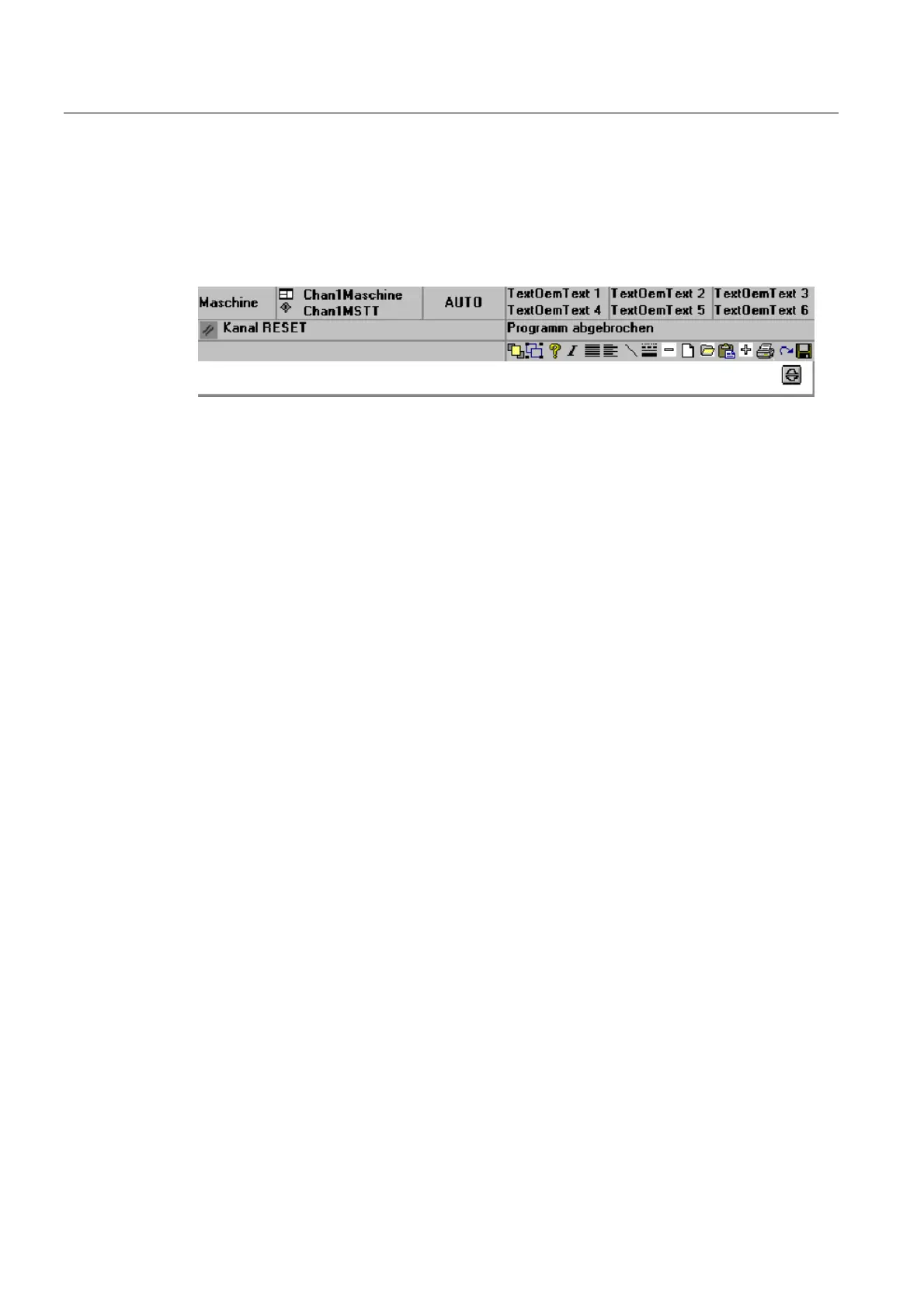

Figure 4-5 Example for OEM Icons
See also
HEADER.INI (Page 283)
