The INI files saved as profiles are the "resultant" INI files. In this way, the profile shows the
current valid configuration.
The result files can be considered individually in an external ASCII editor.
Deleting the current data (profile)
Individual profiles can be deleted from the hard disk via the menu item "File" → "Delete
Profile".
Comparison of two saved profiles
By selecting the menu item "File" → "Compare" in the main window, two saved profiles
(configurations) can be compared to each other.
All previously saved profiles are listed in the "Available Profiles" list. The profile selected in
the list is selected for comparison using the the key "Add à" and moved to the "Compared
Profiles" list. The first selected profile is considered as the original, the second selected
profile is considered the modified profile. A profile can be moved back into the list using the
"ß Remove" button. The sequence in the list can be changed via arrow right.
The "Compare" button can be used as soon as two profiles in the "Compared Profiles" list
are selected for comparison. After the comparison is done, the result is displayed in the main
window of the application and the selection window is closed.

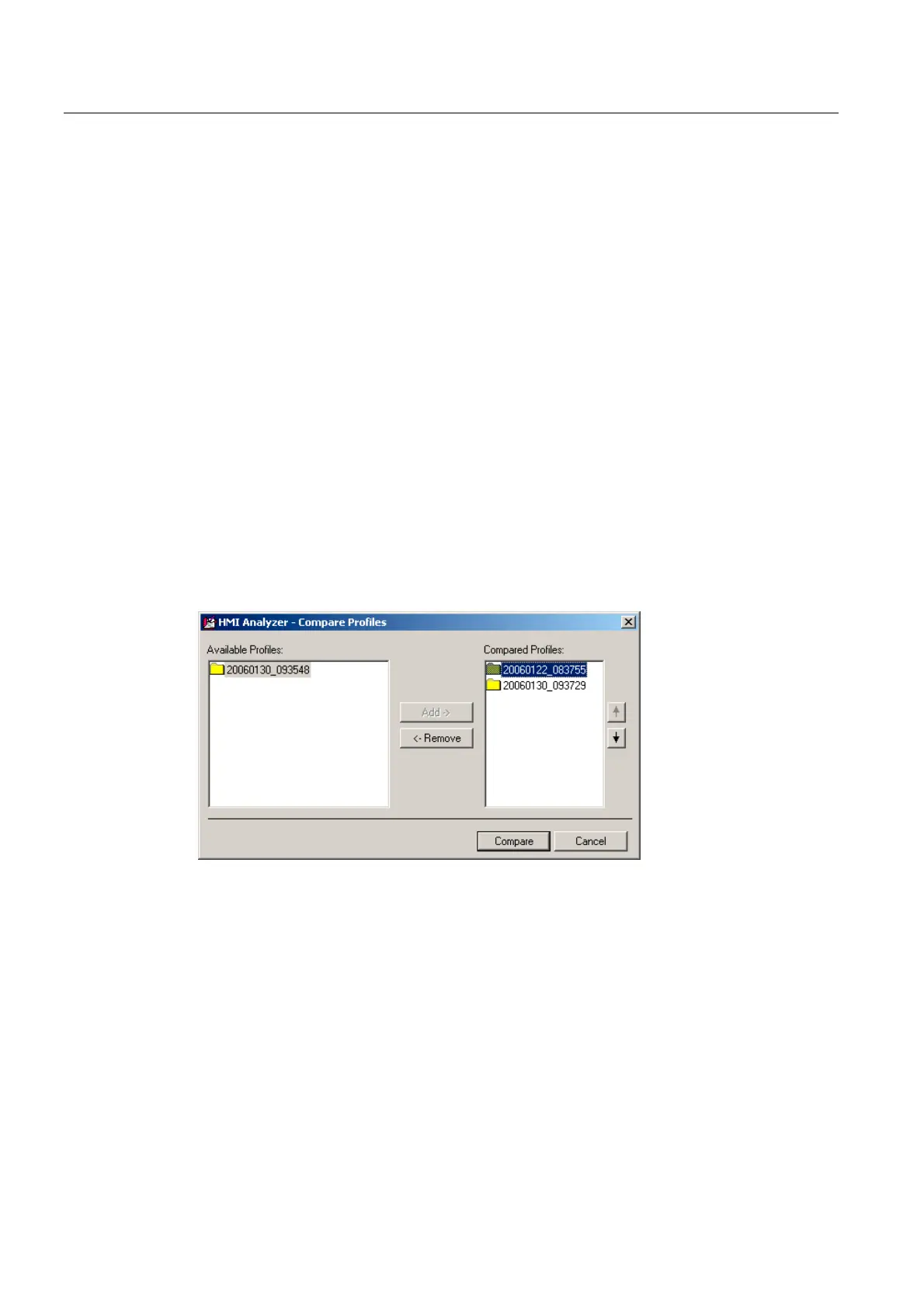

Figure 5-10 Comparing profiles
The result of the comparison can be seen in the main window of the application. The result
of the comparison can also be saved in an ASCII file via the menu items "File" → "Save
Comparison".
A saved comparison result can be displayed again by the HMI Analyzer via the menu items
"File" → "View Comparison".
