Siemens SINUMERIK

Tool management
6.1 Setting tool management parameters on the HMI
HMI Advanced (IM4)
176 Commissioning Manual, 03/2009, 6FC5397-0DP10-3BA0
Example
Both magazines can be loaded via Spindle_1. Loading point_1 is only assigned to
Magazine_1 and Loading point_2 is only assigned to Magazine_2.




















 






*ULSSHUB
*ULSSHUB
&KDQJH
SRVLWLRQIRU
VSLQGOH
*ULSSHUB
/RDGLQJSRLQWB
/RFDWLRQQR
0DJD]LQHQR
/RDGLQJSRLQWB
/RFDWLRQQR
0DJD]LQHQR
0DJB 1R
0DJB 1R
0DJ $OOEXIIHUV
0DJ $OOORDGLQJORFDWLRQV
6SLQGOHB 0DJ/RF
*ULSSHUB 0DJ/RF
*ULSSHUB 0DJ/RF
*ULSSHUB 0DJ/RF
*ULSSHUB 0DJ/RF
*ULSSHUB
6SLQGOHB
&KDQJH
SRVLWLRQIRU
VSLQGOH
&KDQJHSRVLWLRQ
IRUVSLQGOH
/RDGLQJSRLQWIRU
VSLQGOHLVDOZD\V
ORFDWLRQQR
0DJD]LQHB
0DJD]LQHB

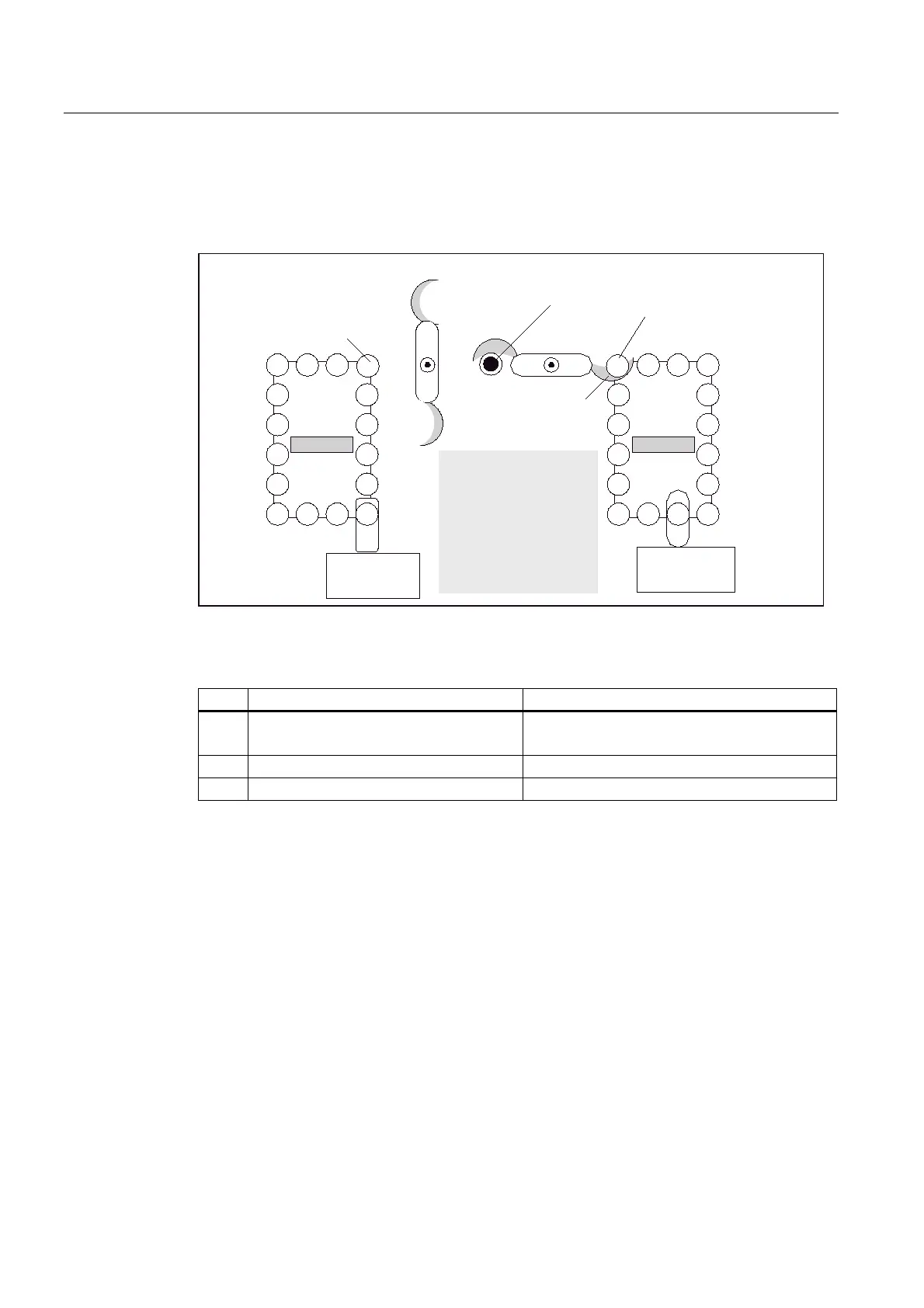

Figure 6-5 Example of a machine with 2 magazines and 3 loading locations
No. Name Distance to change position
1 Manual loading point
(= spindle loading point)
Magazine_1, distance: 0
Magazine_2, distance: 0
2 Loading point_1 Magazine_1, distance: 9
3 Loading point_2 Magazine_2, distance: 11
