Siemens SINUMERIK Commissioning Manual

Tool management
6.1 Setting tool management parameters on the HMI
HMI Advanced (IM4)
Commissioning Manual, 03/2009, 6FC5397-0DP10-3BA0
179
Oversized location type for chain magazines
In a chain magazine, a tool with the size 2 2 1 1 occupies one half location on the right and
one half location on the left in addition to the normal magazine location.
ERWWRP
WRS
ULJKW
OHIW
5HIHUHQFHORFDWLRQ
&KDLQPDJD]LQH
/HIWULJKWWRSERWWRPDUHWKHKDOIORFDWLRQVRIWKHWRROVL]H
ZLWKRFFXSLHGKDOI
ORFDWLRQV

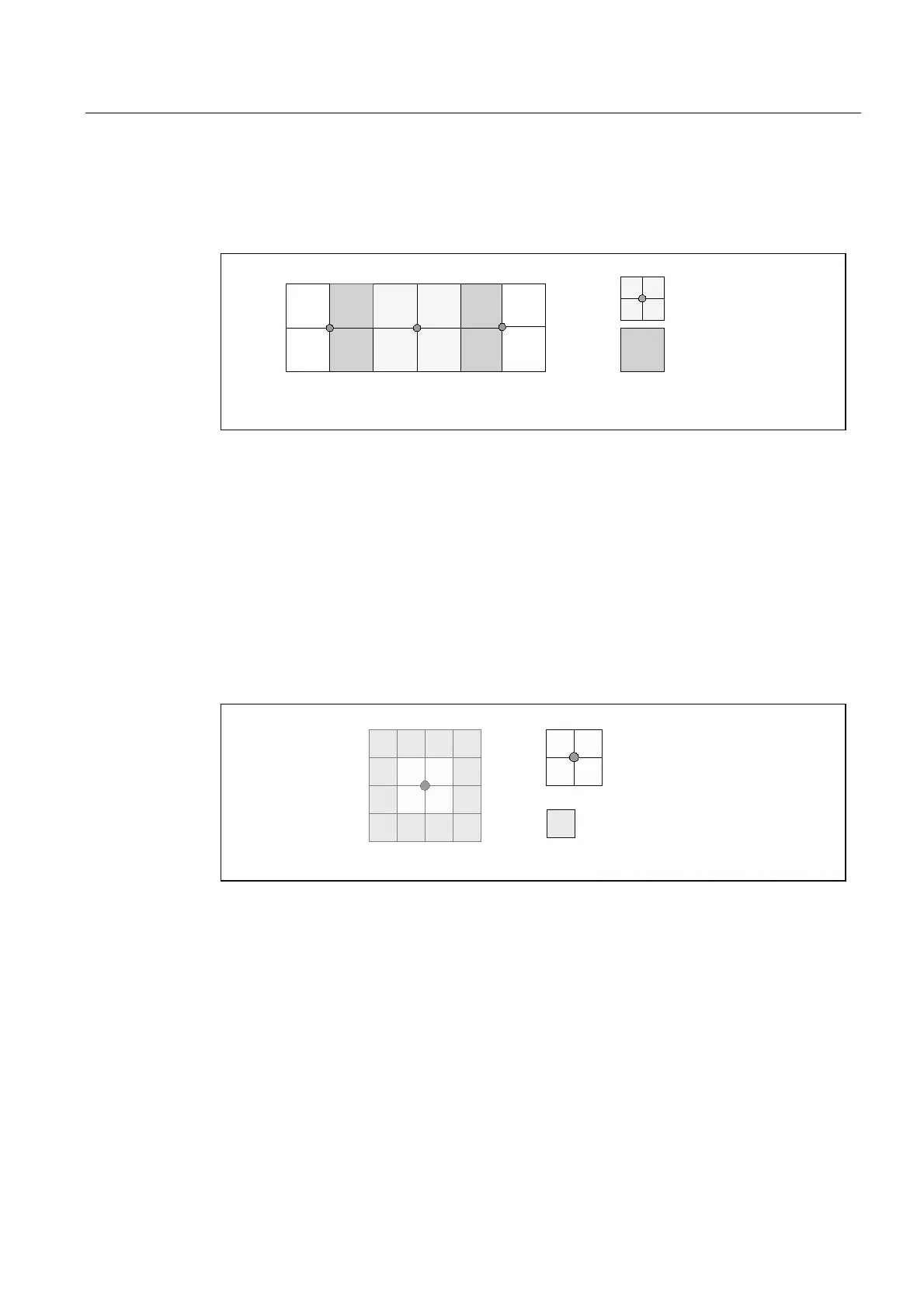

Figure 6-8 Oversized location type for chain magazines
Parameter settings for the location type:
● height (h): 2, width (b): 4
● left (l): 0, right (r): 0
● top (t): 0, bottom (b): 0
Oversized location type for box magazines
In a box magazine, a tool with the size 2 2 2 2 occupies one half location in each direction in
addition to the normal magazine location.
+HLJKW OHIW
WRS
ERWWRP
ULJKW
5HIHUHQFHORFDWLRQ
ZLWKRFFXSLHGKDOI
ORFDWLRQV
:LGWK
/HIWULJKWWRSERWWRPDUHWKHKDOIORFDWLRQVRIWKHWRROVL]H
Figure 6-9 Oversized location type for box magazines
Parameter settings for the location type:
● height (h): 4, width (b): 4
● left (l): 0, right (r): 0
● top (t): 0, bottom (b): 0
