Tool management
6.1 Setting tool management parameters on the HMI
HMI Advanced (IM4)
Commissioning Manual, 03/2009, 6FC5397-0DP10-3BA0
183
Empty location search First location forward / Current location forward
Last location backward / Current location backward
Symmetric current location
Wear group (wear
group)
Leave tool status unchanged
Actively change tool state
Number of locations: Total number of locations in the configuration (all assigned
magazines)
Def. locations: Total number of locations in the configuration to which a location
type was assigned
Real magazines
Name: Name of the selected real magazine
Type: Type of magazine
No. of Locations: Number of locations for the selected magazine
Location types
Location type: Name of selected location type
From location: 1. location to be defined
To location: Last location to be defined
"Parameters per magazine" softkey:
The settings made in the previous screen ("Magazine configuration") become effective.

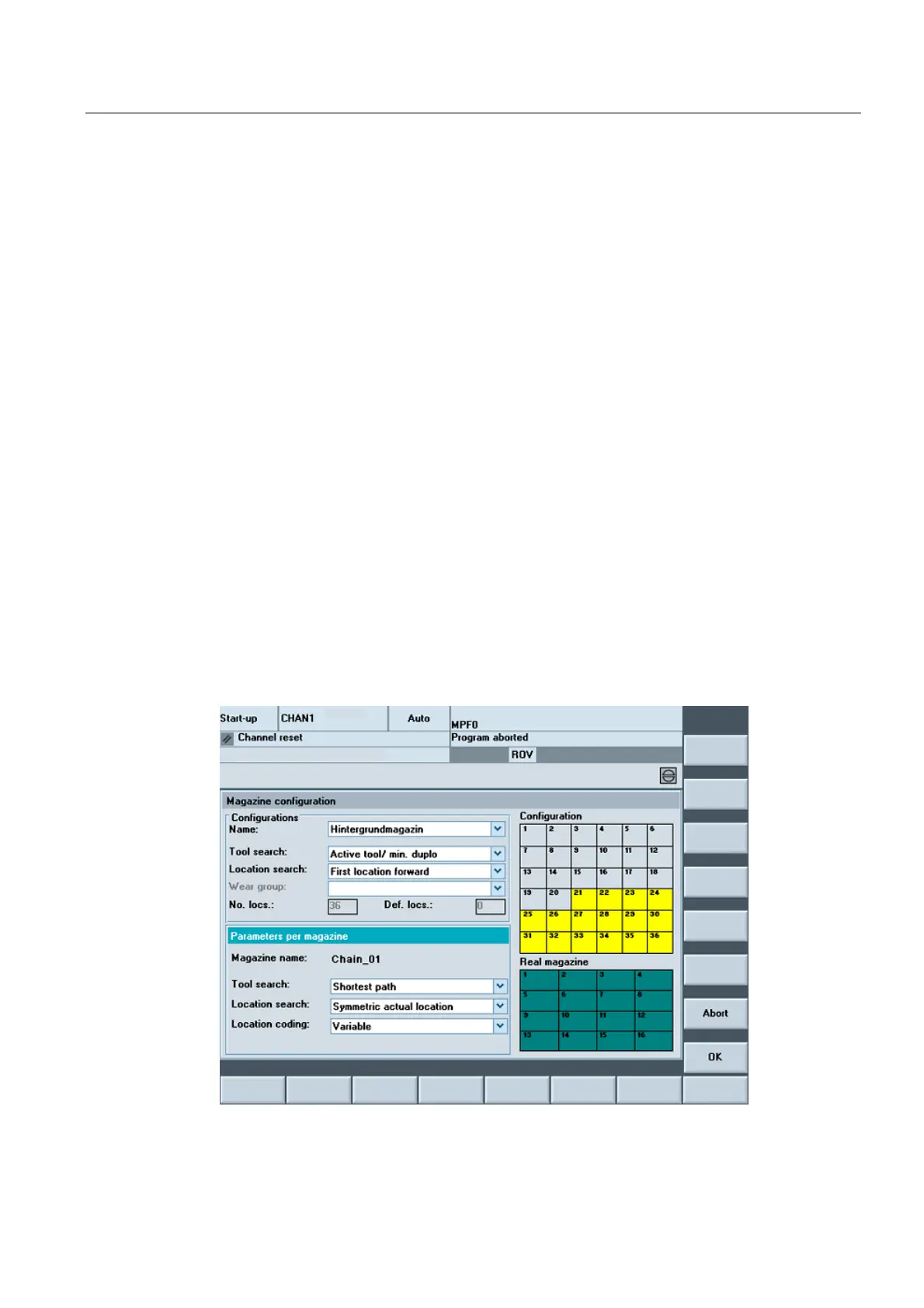

Figure 6-12 Set parameters for each magazine
