Tool management
6.1 Setting tool management parameters on the HMI
HMI Advanced (IM4)
Commissioning Manual, 03/2009, 6FC5397-0DP10-3BA0
185
Delete magazine configuration:
1. If the cursor is positioned on the selection field for the configuration, you can delete the
selected configuration by pressing the "Delete" softkey.
2. Load magazine configuration
3. Activating the "Load config. file" softkey opens the "Load magazine configuration" screen
1-16.
Load magazine configuration:
● Here, the previously created INI file is uploaded to the NCK via the "Load" softkey. The
procedure is channel-specific; only one configuration is possible for each TO unit.
(This means if TO unit 1 is assigned to channels 1, 2, 3 and 6, the configuration which
was loaded in channel 1 is automatically valid for channels 2, 3 and 6 too.)

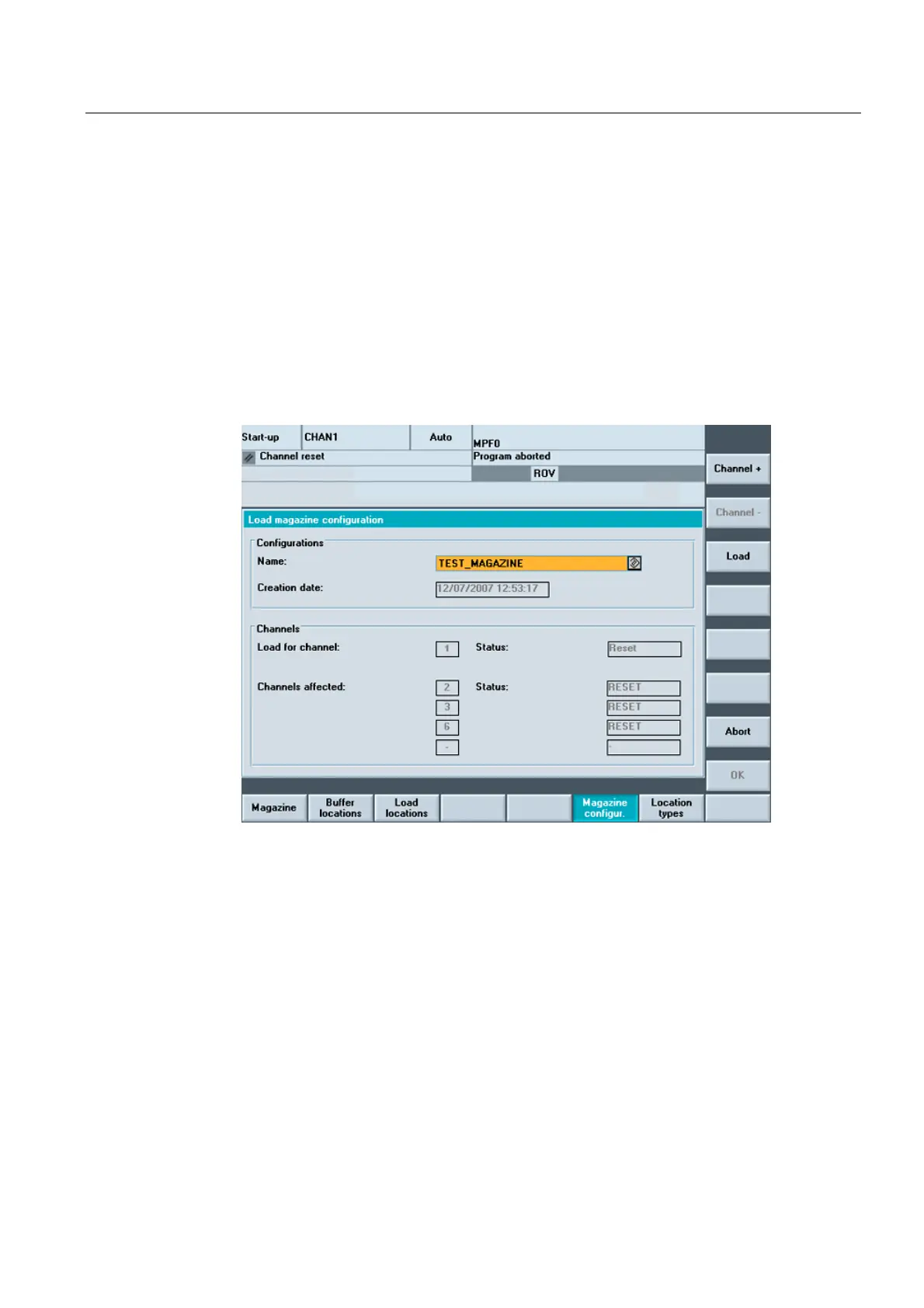

Figure 6-13 Load configuration file
