Configuring the HMI system
2.1 Processing INI files
HMI Advanced (IM4)
Commissioning Manual, 03/2009, 6FC5397-0DP10-3BA0
41
Example

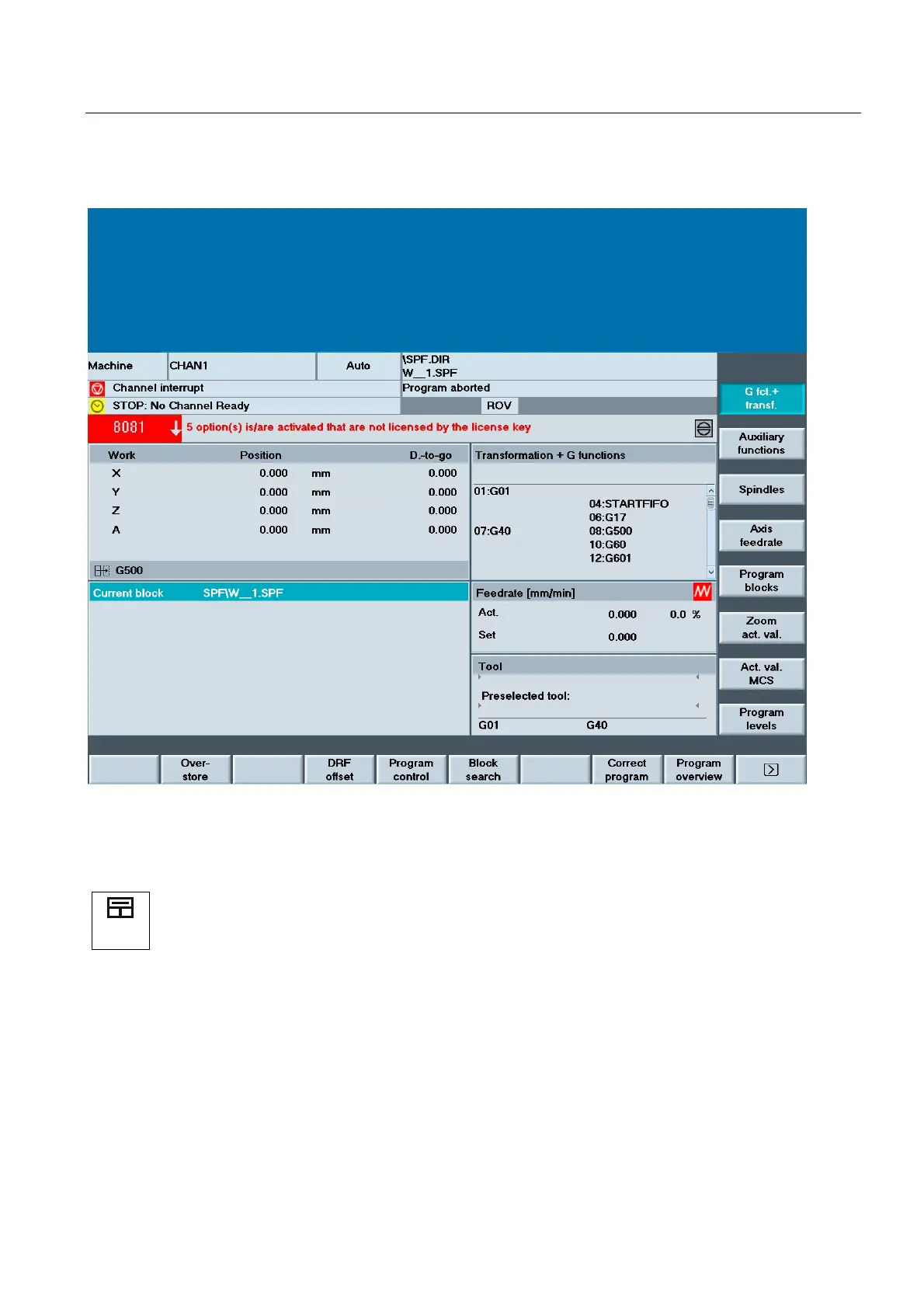

Figure 2-2 Example HMI-Advanced
Operating the HMI program and OEM application
When switching the operation between HMI program and OEM application, use the window
shift key <NEXT WINDOW> or simply click.
The OEM application is operated in the main window, either via actuation or by a mouse
click. All other keyboard entries will now appear in this active window until one of the function
keys (F1-F10, etc.) recognized by the HMI program is detected. The HMI program is then
active again.
The following shortcuts are reserved:
<Ctrl+1>, <Ctrl+2>, <Ctrl+3>, <Ctrl+6>, <Ctrl+7>, <Ctrl+8>
