Programming help systems
1.2 Quick "ASCII" help
Online Help (HE1)
12 Commissioning Manual, 11/2006, 6FC5397-0DP10-0BA0
One line is available for each of these in the associated text file.
The screenshot below shows an example:

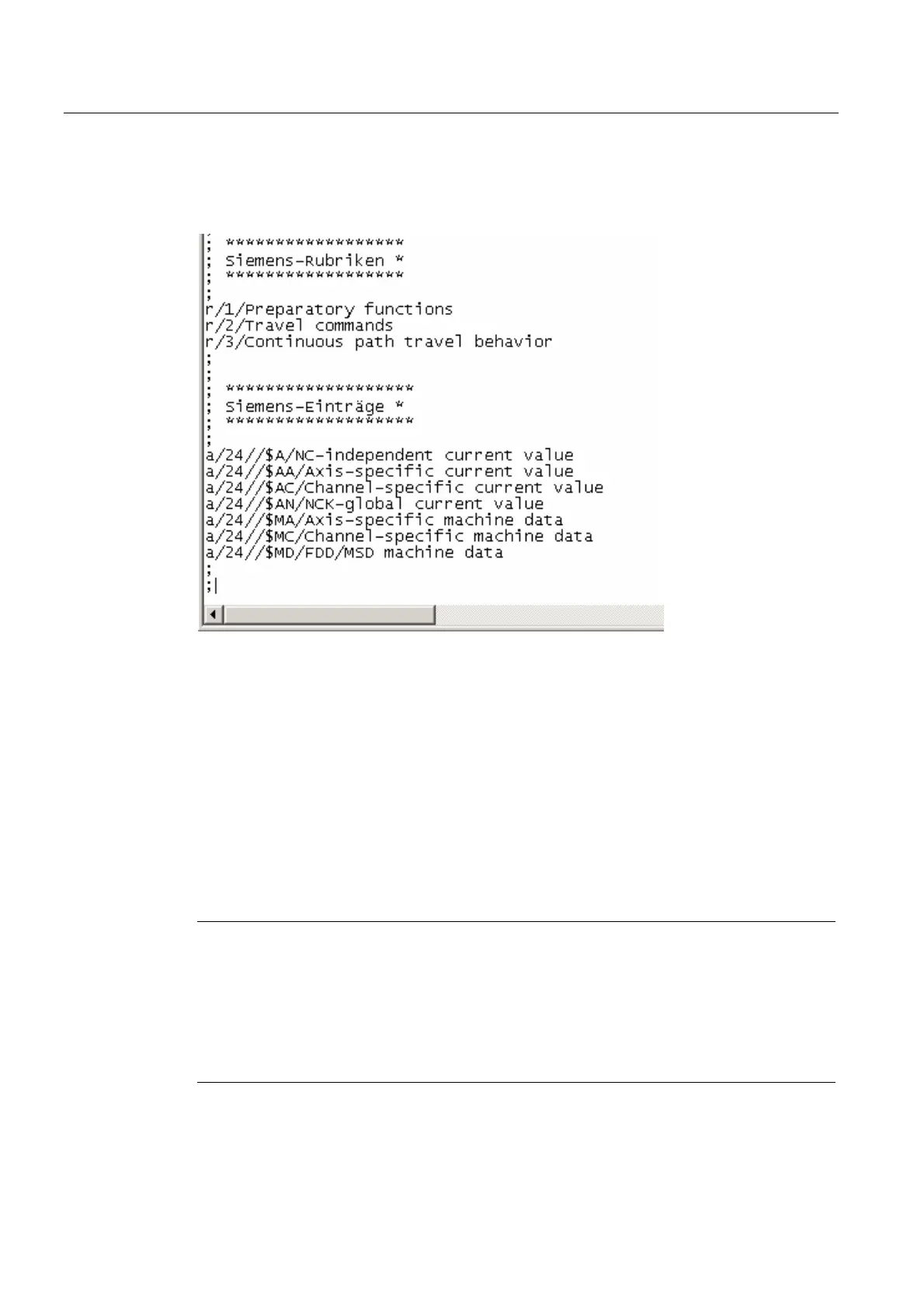

Figure 1-1 Siemens text file
The topic definition contains the following parameters:
Topic definition
Technology code "r"/topic ID/topic name
The instruction definition contains the following parameters:
Instruction definition
Technology/topic ID/extended help/instruction text/
descriptive text
Note
Within each of the individual text files, the Siemens topics are displayed first, followed by
those of the machine manufacturer and finally those of the end user.
The specified sequence only appears if the topics are declared first and then the instructions
of the text file.
The instructions in the text files must be stored in alphabetical order if the standard,
machine manufacturer and end user instructions are to be sorted correctly.
