Service and diagnostics
5.4 How to search for stations within the system network
PCU-Basesoftware (IM8)
86 Commissioning Manual, 03/2009, 6FC5397-1DP10-4BA0
2. "IP start / IP end": Set the IP-address browsing range.
Eight ranges can be saved. Click on button " >" to switch to the next range.
3. "VNC" option:
– ON: only search for VNC servers.
– OFF: search all the stations in the network.
4. Start the search with the "Start" button.
The following station parameters will be listed:
– IP address
– MAC address
– Name in the network
– VNC port
– Response time of the station in milliseconds
– Device type
Note
local device #
When the devices are listed, an IP address will be identified with "#" to indicate that
this is the local device on which the VNC scanner will be used.

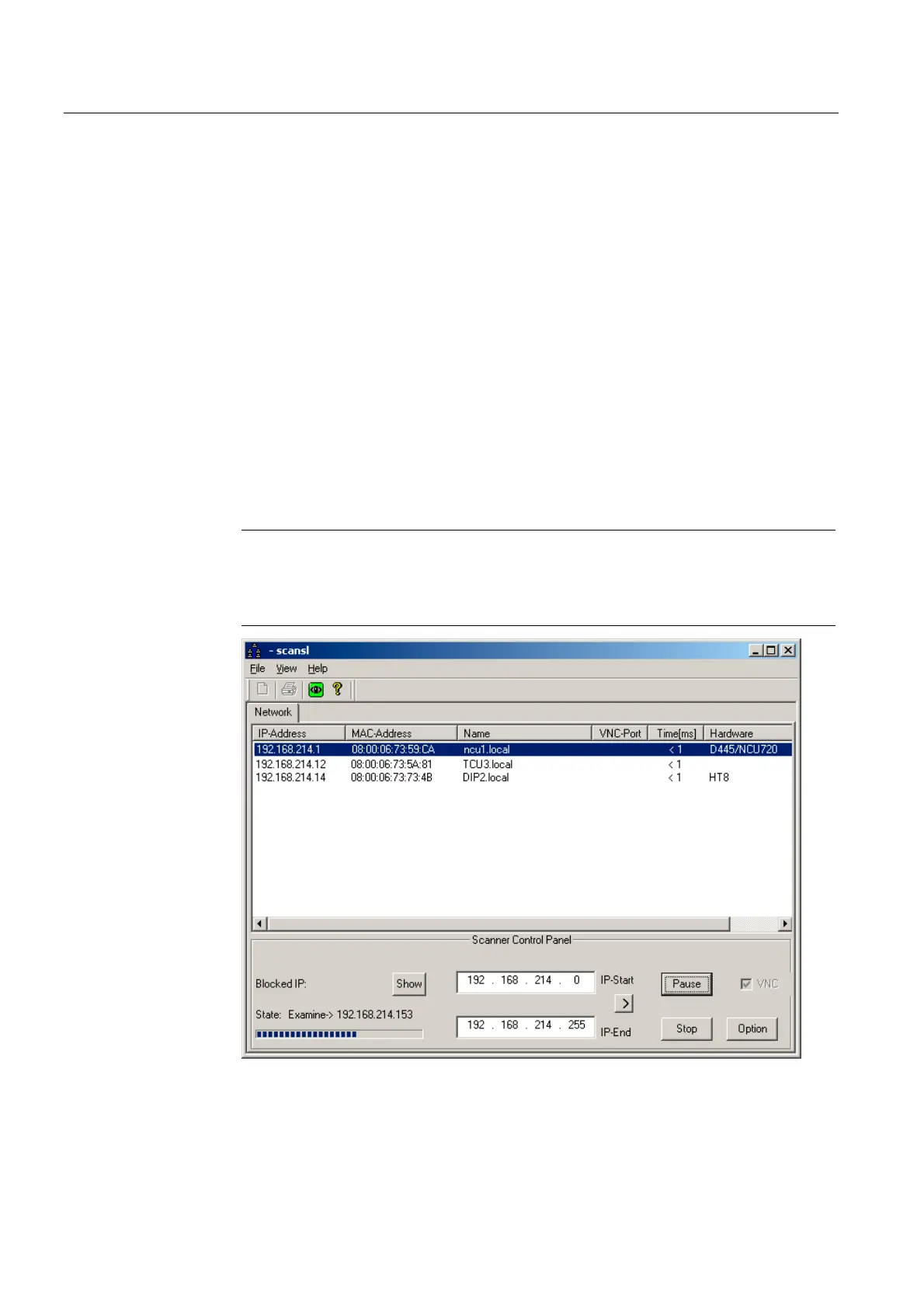

Figure 5-3 VNC scanner: List of stations
