Descr
iption
3.2
Struc
ture
SIPART PS2 with and without HART
22
Operating Inst
ructions
,
10/2013
,
A5E00074631
-
11
Explanation of Ex information
①
C
ategory for operat
ing ran
ge
④
Maximum surf
ace temperatur
e
(temperatur
e class)
②
Type of protectio
n
⑤
Device pro
tection level
③
Group (ga
s
, dust)

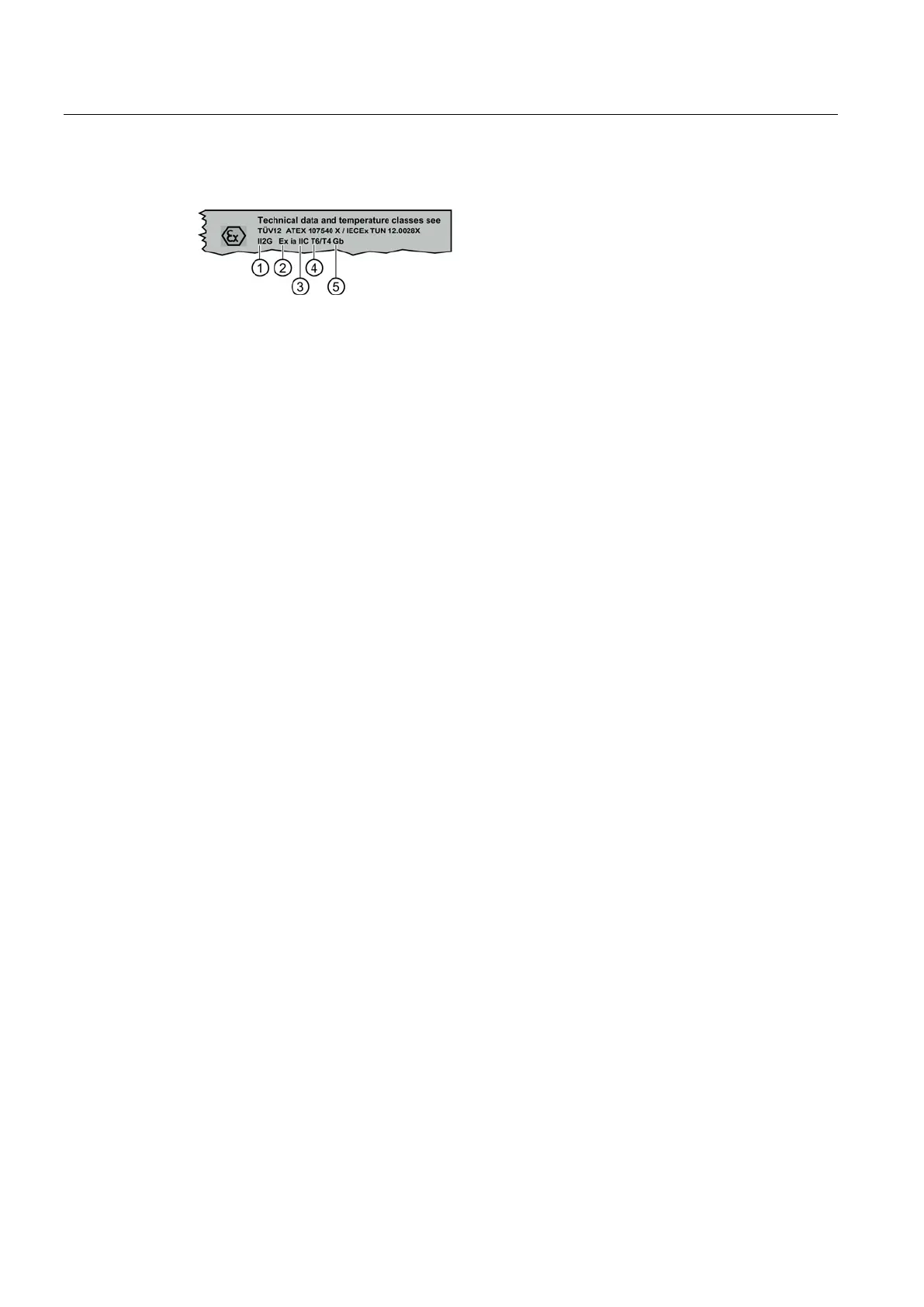

Figure
3-7
Explanati
on of Ex
i
nform
ation
23
25
