Siemens SIPART Series User Manual

Connection
5.1 Electric
SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
89
5.1.5
Connecting NCS to EMC filter module
Requirements
You need the EMC filter module with order number C73451-A430-D23 to connect the NCS
to the positioner. The positioner supplies auxiliary power to the NCS via the EMC filter
module.

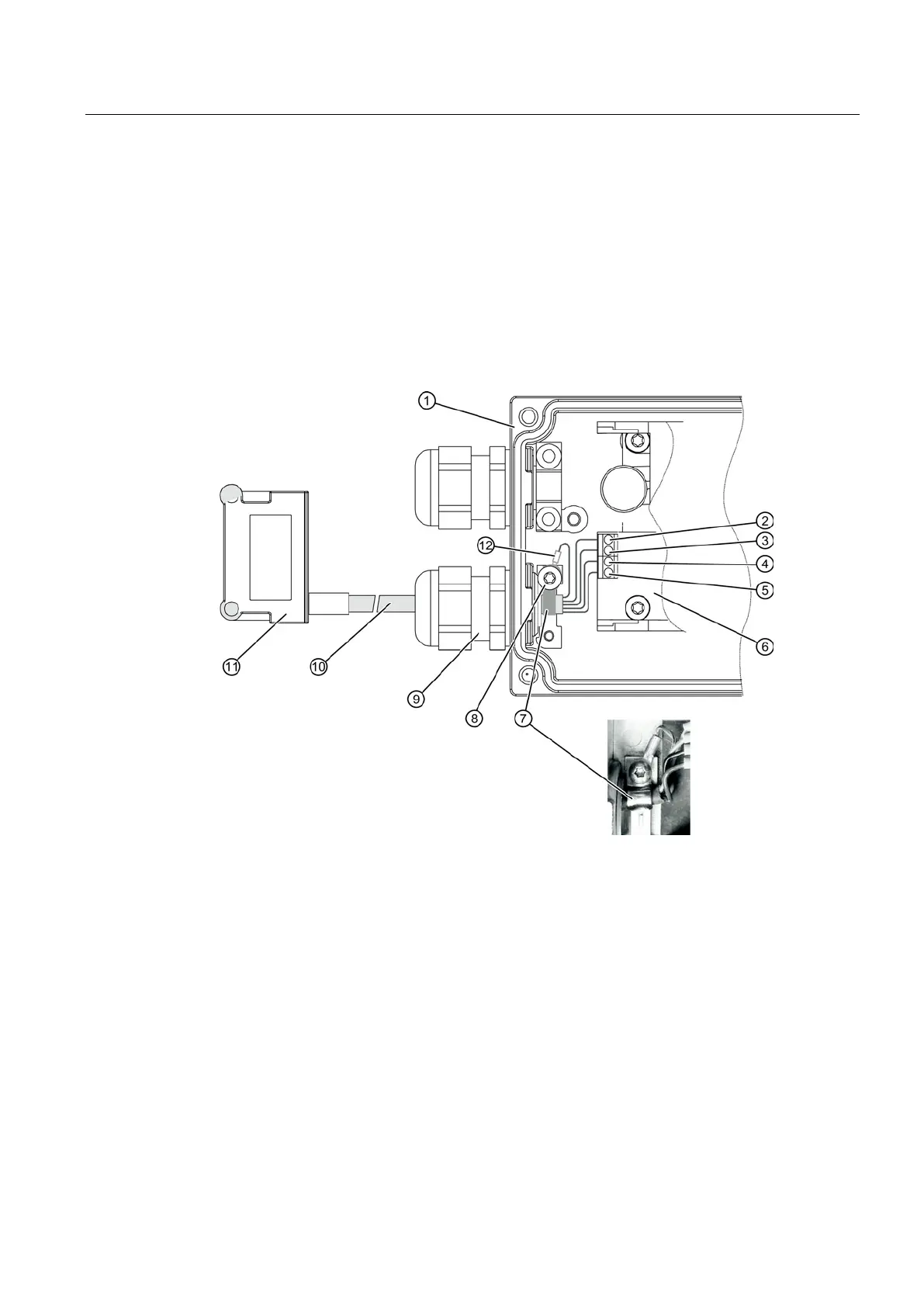

Wiring diagram
①
Positioner (open state)
⑦
Cable clamp
②
Vcc: Yellow
⑧
Screw F3x8
③
Vref: Green
⑨
Cable gland
④
Vpos: Black
⑩
Four-pole NCS cable
⑤
Ground: Brown
⑪
Non contacting sensor (NCS)
⑥
EMC filter module C73451-A430-D23
⑫
Cable shielding lug
Figure 5-21 Example of connecting the NCS to the EMC filter module
