Installing/mounting
4.7 Installing option modules
SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
63
See also
Warning symbols on the device (Page 13)
4.7.6
EMC filter module
Requirements
● You have an EMC filter module, order number C73451-A430-D23.
● The module cover is removed.
● Any already installed optional module has been removed.
A description of how to remove the module cover and install the optional modules is provided
in the chapter "General information on installing option modules (Page 48)"
Note
Different cable glands
A blue and a gray cable gland are provided to distinguish between explosion
-proof and not
explosion
-proof devices.
•
Use the blue cable gland for explosion-proof devices in "intrinsically safe" protection type.
Use the gray cable gland for all other designs.
Function
You will require the EMC filter module if you use an external position sensor on the
positioner, e.g. a potentiometer or a non-contacting position sensor. The EMC filter module
forms the interface between external position sensors and the basic electronics of the
positioner. This module protects the positioner from electromagnetic effects.
Device features
● EMC protection
● Connection to basic electronics
● Connecting terminals for an external potentiometer

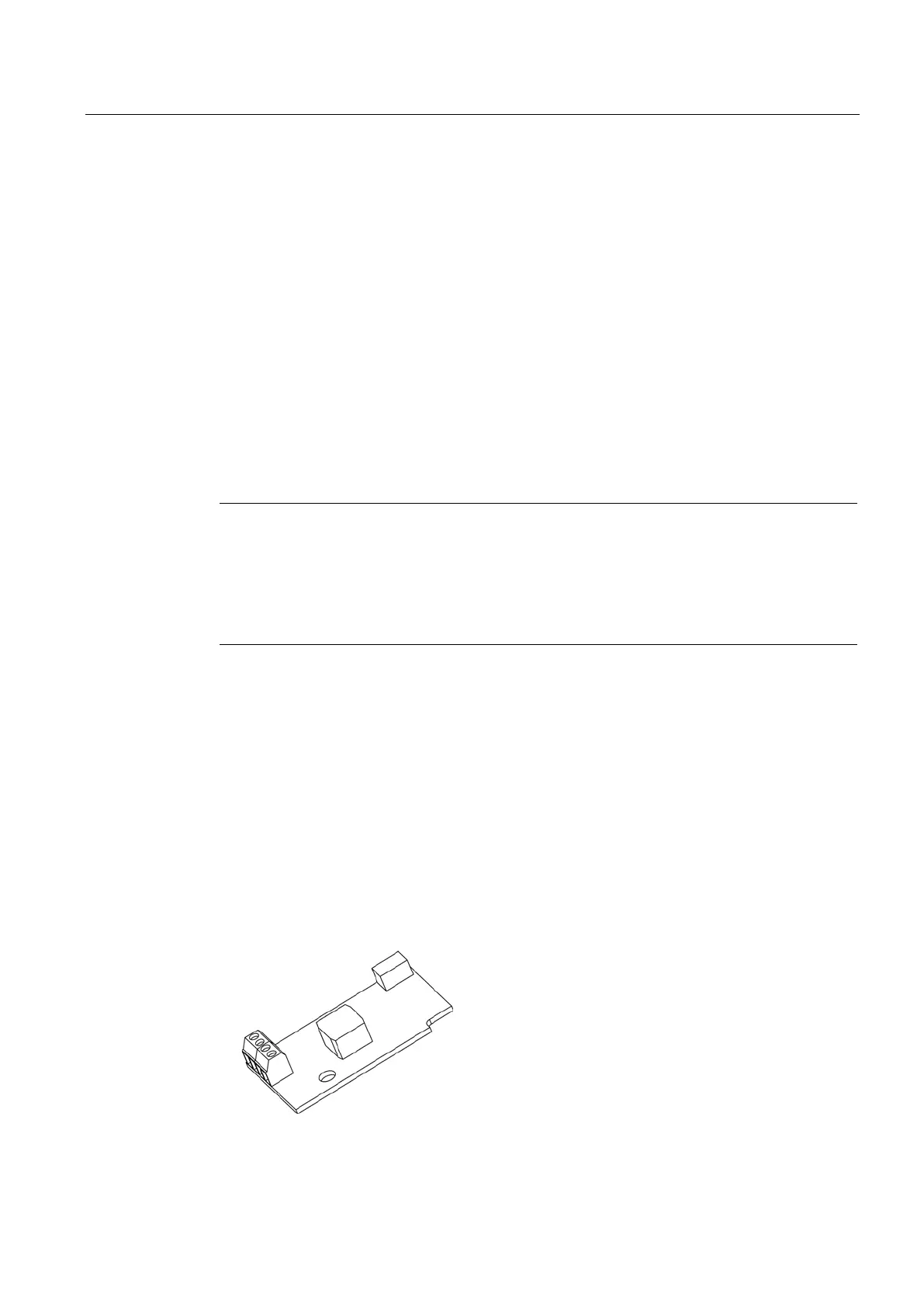

Figure 4-18 EMC filter module
