Siemens SIPART Series - 5.1.3.2 Split range without Ex protection;in flameproof enclosure Ex d; 5.1.3.3 Option modules without Ex protection; in flameproof enclosure Ex d

Connection
5.1 Electric
SIPART PS2 with and without HART
74 Operating Instructions, 10/2013, A5E00074631-11
5.1.3.2
Split range without Ex protection/in flameproof enclosure "Ex d"
①
Device 1 - positioner: 6DR52.5; 6DR53.5
⑥
Binary input 2
②
Actuating range 1
⑦
Total actuating range Iy
③
Binary input 1
⑧
Signal source
④
Device 2 - positioner: 6DR52.5; 6DR53.5
⑨
Power source
⑤
Actuating range 2

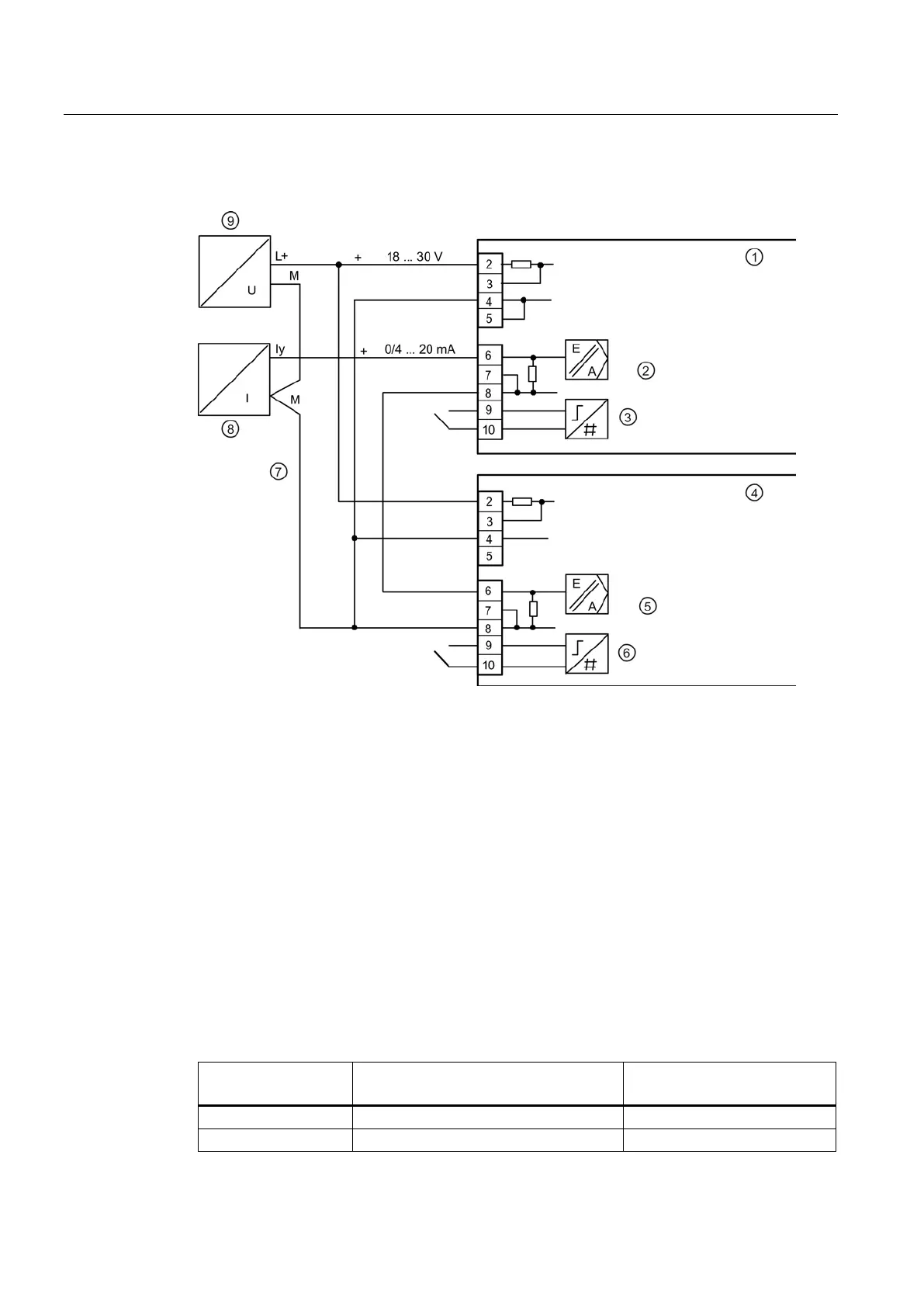

Figure 5-6 Series connection of 2 positioners, e.g. split range without Ex
5.1.3.3
Option modules without Ex protection / in flameproof enclosure "Ex d"
Which option module is fitted in which positioner?
The order number of the positioner is present on its nameplate. This coded order number
indicates which option module is already installed in your device. The following table lists the
assignment between positioner and installed option module.
Table 5- 1 List of option modules fitted in positioners
without explosion protection
Positioner order
number
Contains the following installed option
module
Order number for installed
option module
6DR5...-0N.1.-0.A.
Alarm module
6DR4004-8A
6DR5...-0N.2.-0.A.
SIA module
6DR4004-8G
