Connection
5.1 Electric
SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
73

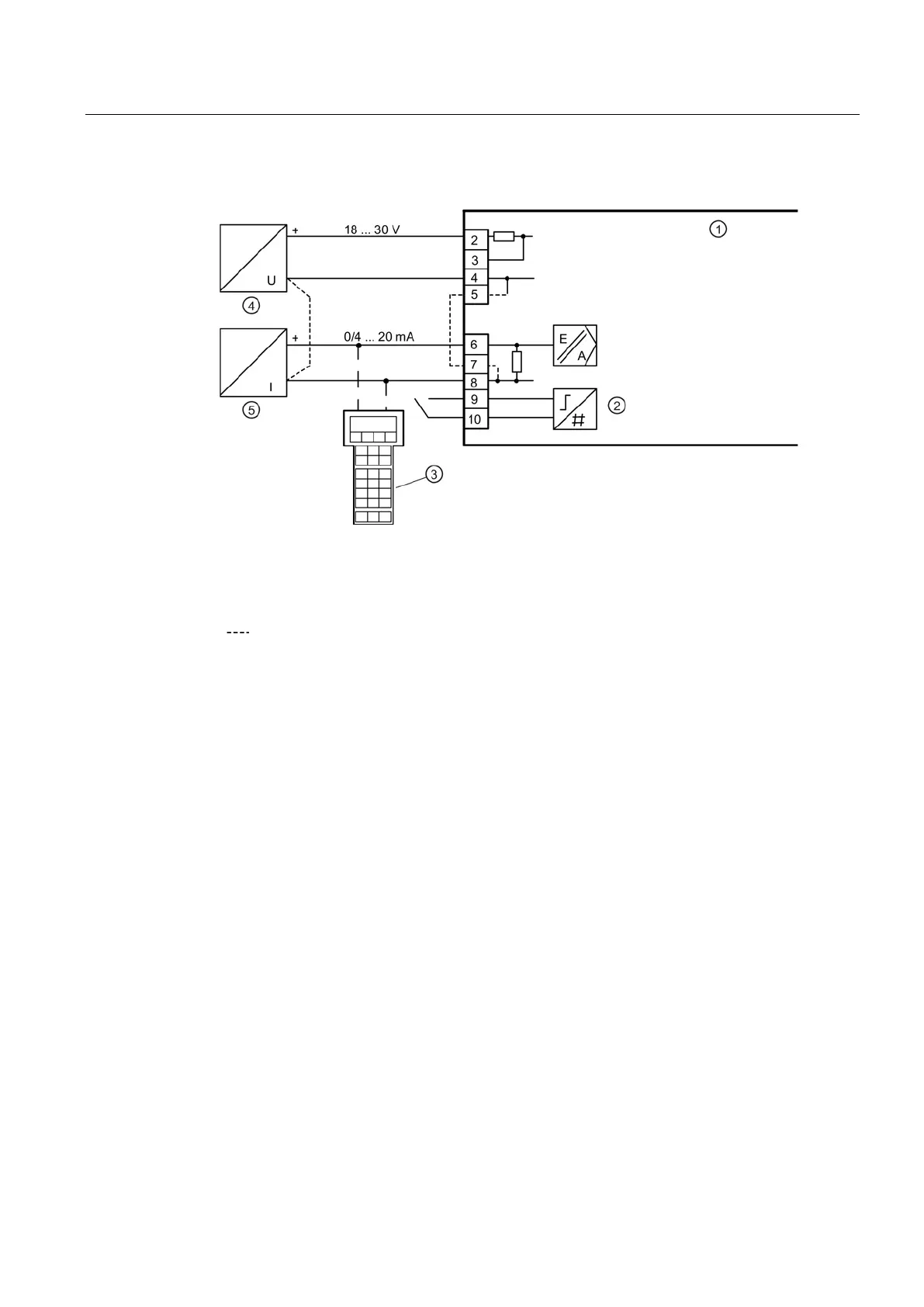

Connection diagram for order numbers 6DR52..-0N...; 6DR52.5-0E...; 6DR53..-0N...; 6DR53.5-0E...
â‘
Basic electronics
â‘£
Power source
â‘¡
Binary input 1
⑤
Signal source
â‘¢
HART communicator for 6DR52..-0N... and
6DR52.5-0E... only
Dotted connection lines: only for three-wire connection
Figure 5-5 Device version 2-/3-/4-wire, with connection type 3-/4-wire (without Ex/with Ex d)
