Dimension drawings
13.3 Positioner with aluminum enclosure 6DR5..1
SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
257
13.3
Positioner with aluminum enclosure 6DR5..1
①
Dimension for electrical connection ½-14 NPT due to adapter: 203 mm (8 inch)
②
All air connections G¼ or ¼ NPT
③
M20 x 1.5 or NPT adapter

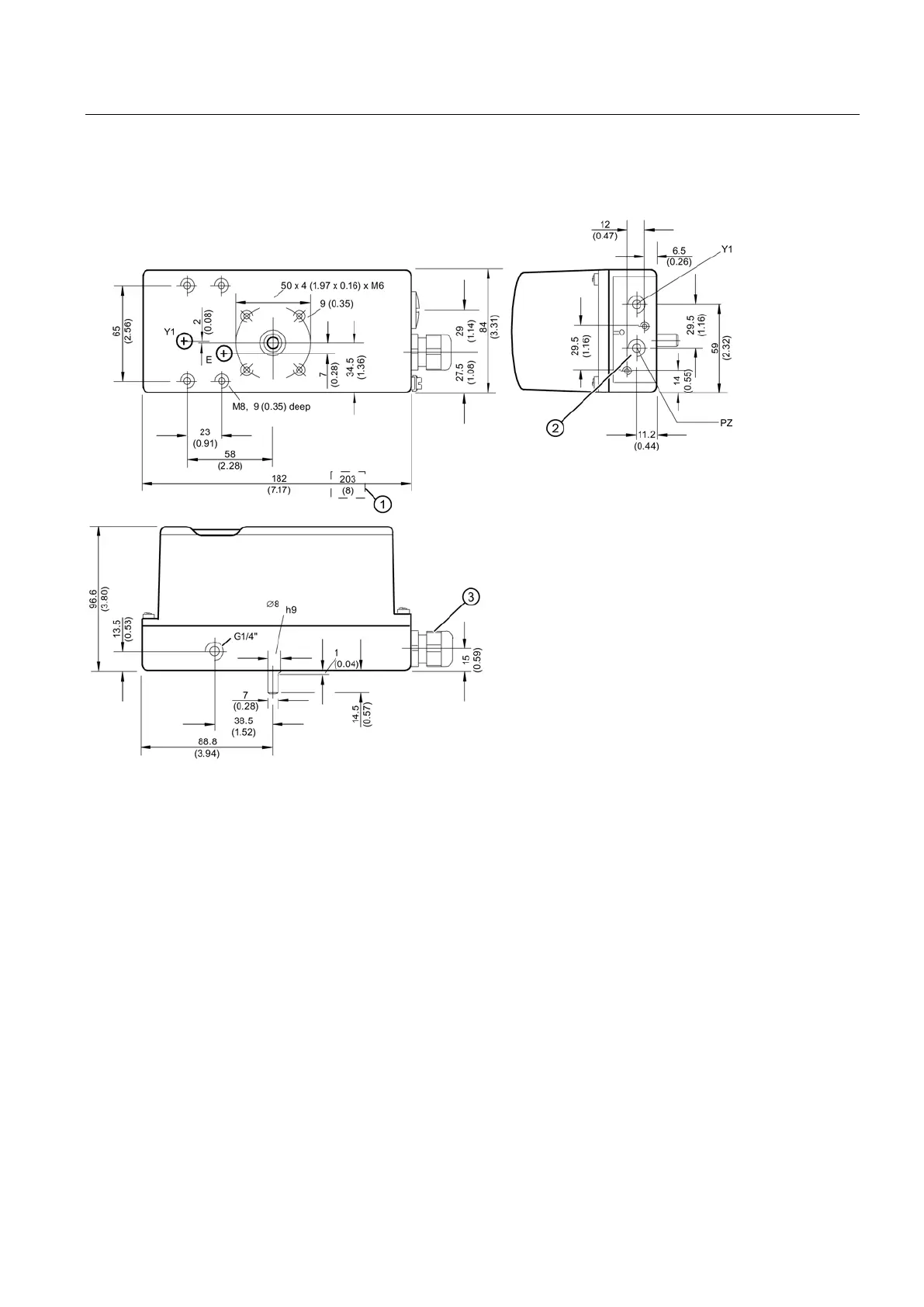

Figure 13-3 Aluminum enclosure version, dimensions in mm (inch)
