SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
255
Dimension drawings
13
13.1
Positioner with Makrolon enclosure 6DR5..0 and stainless steel
enclosure 6DR5..2
①
Dimension for electrical connection ½-14 NPT due to adapter: 203 mm (8 inch)
②
All air connections G¼ or ¼ NPT
③
M20 x 1.5 or NPT adapter
Dimensions of stainless steel version (see superscript footnotes in the graphic)
1)
99 mm (3.89 inch)
2)
74 mm (2.91 inch)
3)
98 mm (3.86 inch)

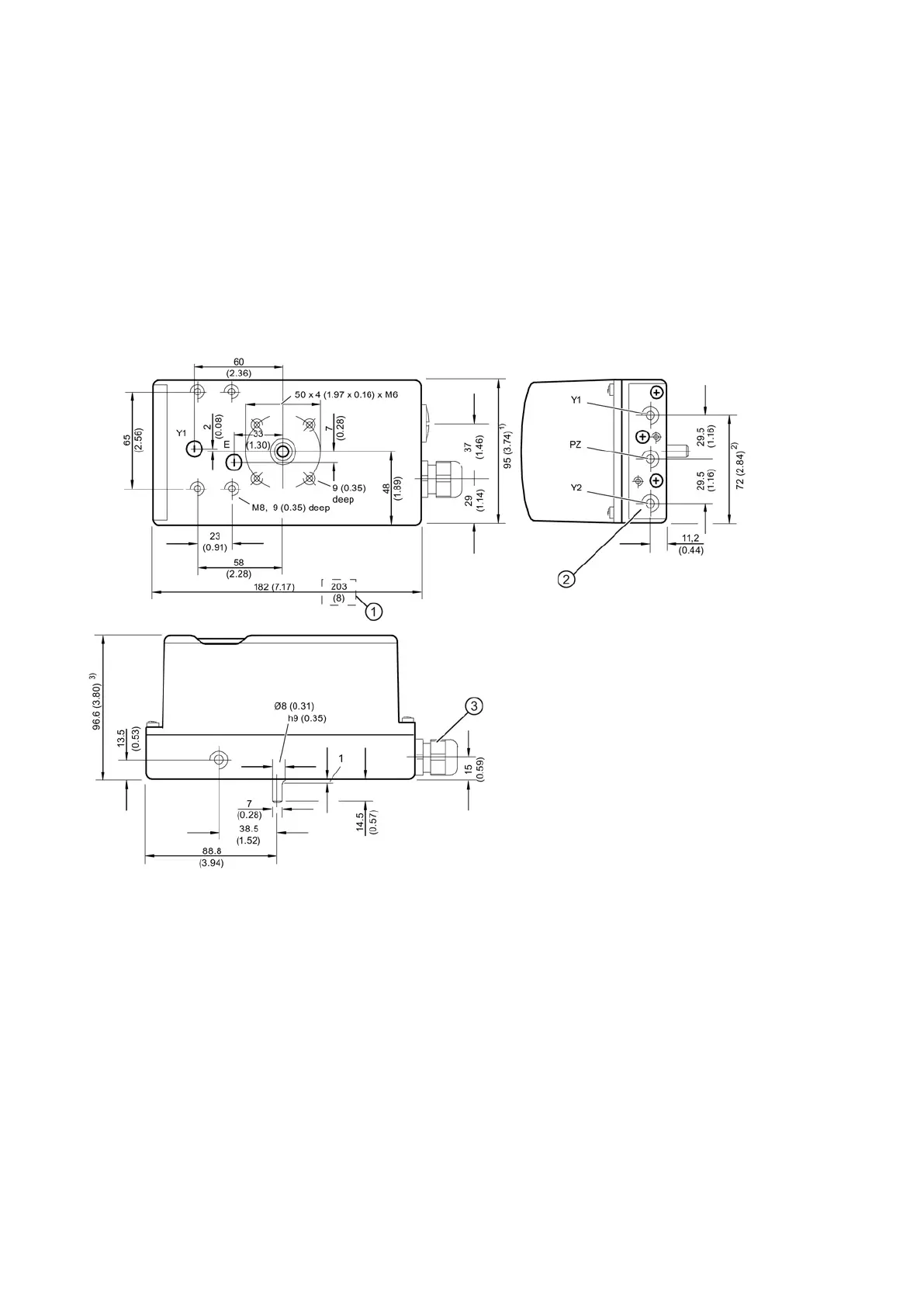

Figure 13-1 Macrolon enclosure version, dimensions in mm (inch)
