Description
3.2 Structure
SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
21
3.2.2
Nameplate layout

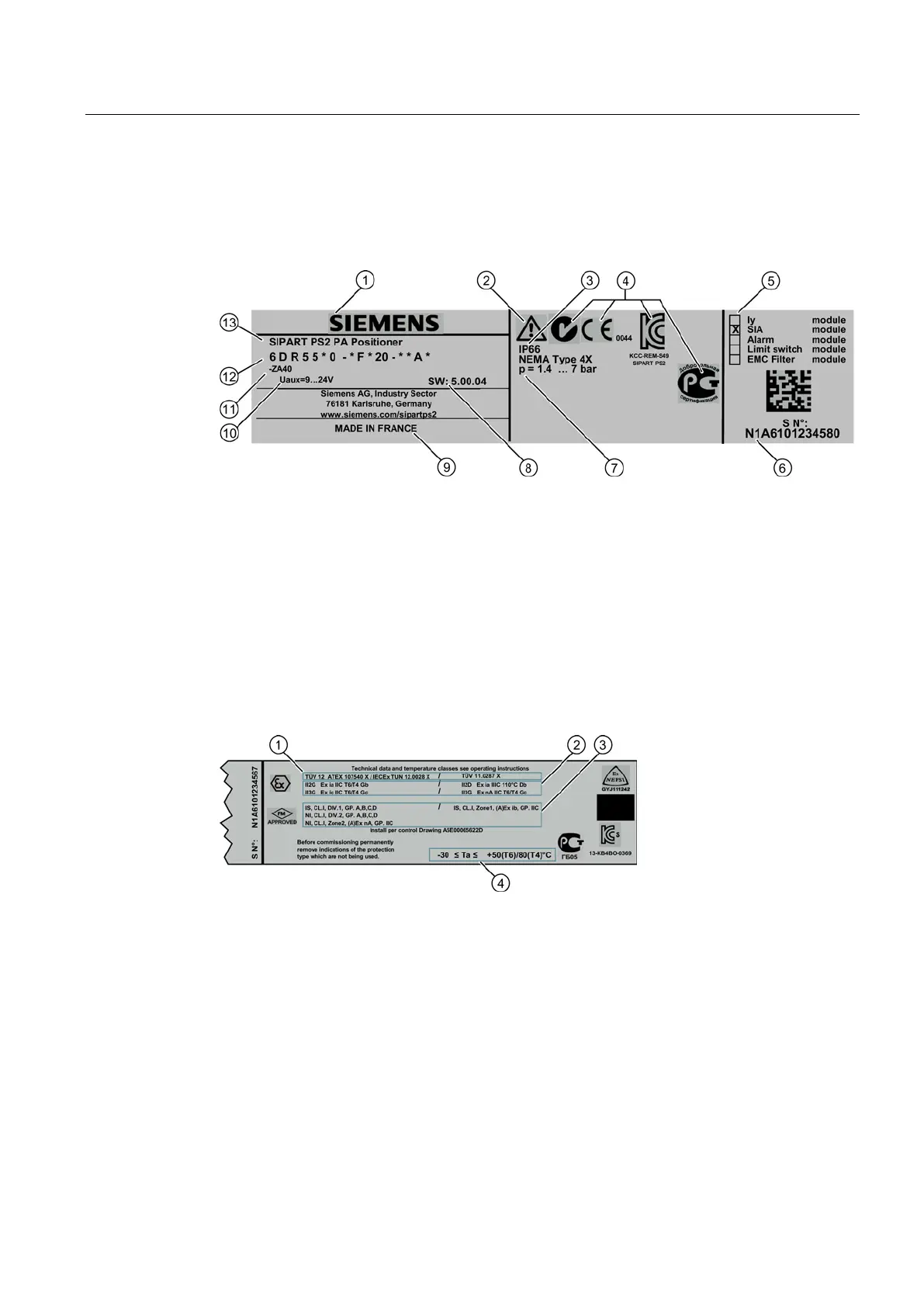

Design of the nameplate
①
Manufacturer
⑧
Software version
②
Consult operating instructions
⑨
Place of manufacture
③
Safety class
⑩
Auxiliary power
④
Conformity with country-specific directives
⑪
Ordering supplement (Order code)
⑤
Built-in option module
⑫
Order no.
⑥
Manufacturer serial number
⑬
Product name
⑦
Auxiliary power (air supply)
Figure 3-5 Nameplate_design, example
Layout of Ex nameplate
①
Approvals
③
FM/CSA marking for hazardous area
②
ATEX/IECEX marking for hazardous area
④
Permissible ambient temperature for the
hazardous area of the corresponding
temperature class
Figure 3-6 Layout of Ex nameplate
