Connection
5.1 Electric
SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
75
Positioner order
number
Contains the following installed option
module
Order number for installed
option module
6DR5...-0N.3.-0.A.
Mechanical limit switch module
6DR4004-8K
6DR5...-0N..1-0.A.
I
y
module
6DR4004-8J
6DR5...-0N..2-0.A.
EMC filter module
C73453-A430-D23
6DR5...-0N..3-0.A.
I
y
module
6DR4004-8J
EMC filter module
C73453-A430-D23
Table 5- 2 List of option modules fitted in positioners in
flameproof enclosure "Ex d"
Positioner
Contains the following installed option
module
Order number for installed
option module
6DR5..5-0E.1.-0.A.
Alarm module
6DR4004-8A
6DR5..5-0E..1-0.A.
I
y
module
6DR4004-8J
The captions of the following connection graphics for the option modules are made up of the
name and order number of the option module.

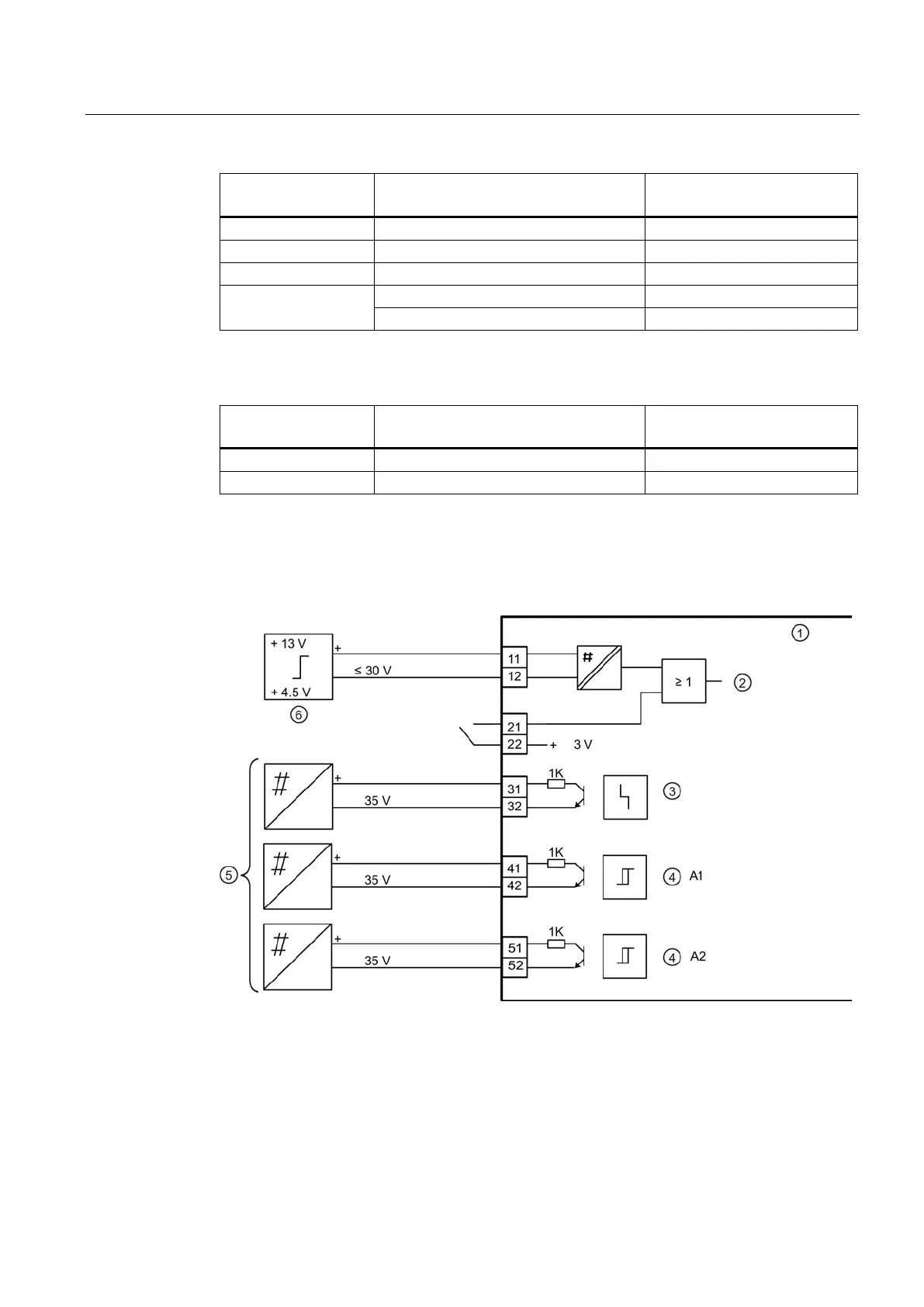

Alarm module, without Ex protection / in flameproof enclosure "Ex d"
①
Alarm module
④
Limit
②
Binary input 2
⑤
Switching amplifier
③
Fault message
⑥
Switching output
Figure 5-7 Alarm module 6DR4004-8A (without Ex/with Ex d)
