14.6 Scope of delivery EMC filter module
SIPART PS2 with and without HART
266 Operating Instructions, 10/2013, A5E00074631-11
Connections ① to ③ for power supply
Connections ④ to ⑥ for optional modules
①
Adapter M20 ½-14 NPT for macrolon
enclosure
• 6DR5..0-0.N../ -0.P..
④
Cable gland for connection thread
M20x1.5 with seal insert
• 6DR5...-0...1/ -0...2/ -0...3
②
M12 connector for device version with
PROFIBUS communication (optional)
• 6DR55..-0.R../ -0.R..
⑤
Dummy plug for device version without
optional modules
• 6DR5...-0...0
③
Cable gland for connection thread
M20x1.5
• 6DR5...-0.G../ -0.M..
⑥
Adapter M20 ½-14 NPT for macrolon
enclosure with connection thread and
cover
• 6DR5..0-0.N../ -0.P..

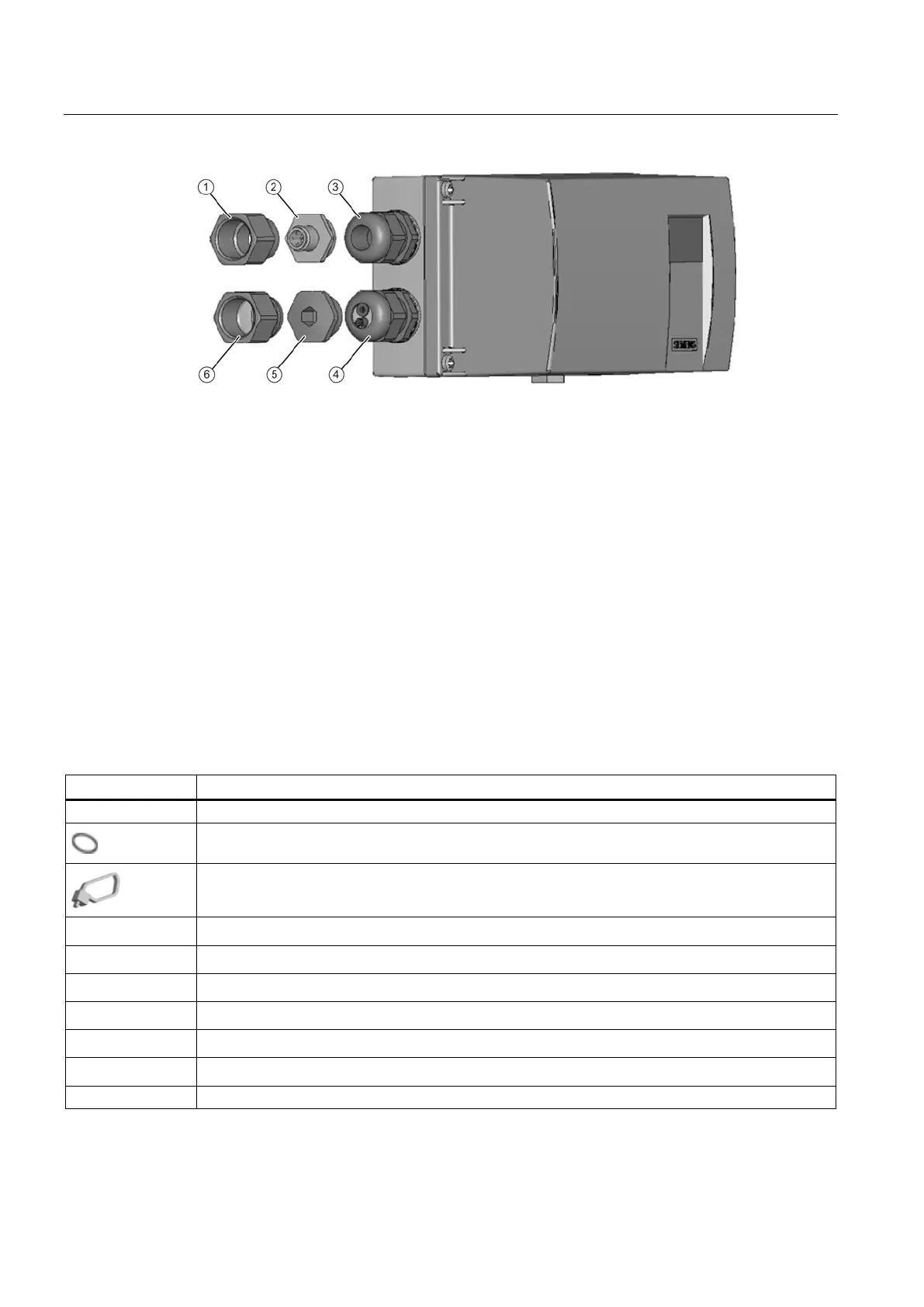

Figure 14-1 Positioner with the different cable glands and adapter
Scope of delivery EMC filter module
Legend numbers refer to the graphic
Description
EMC filter module C73451-A430-L8
Seal ring
Cable tie I = 200 mm
①
Adapter M20 ½-14 NPT for macrolon enclosure
②
M12 connector for device version with PROFIBUS communication
③
Cable gland for connection thread M20x1.5
④
Cable gland for connection thread M20x1.5 with seal insert
⑤
Dummy plug for device version without optional modules
⑥
Adapter M20 ½-14 NPT for macrolon enclosure with connection thread and cover
Adhesive label 9x37 ws
