Siemens SIPART Series User Manual

Installing/mounting
4.7 Installing option modules
SIPART PS2 with and without HART
50 Operating Instructions, 10/2013, A5E00074631-11

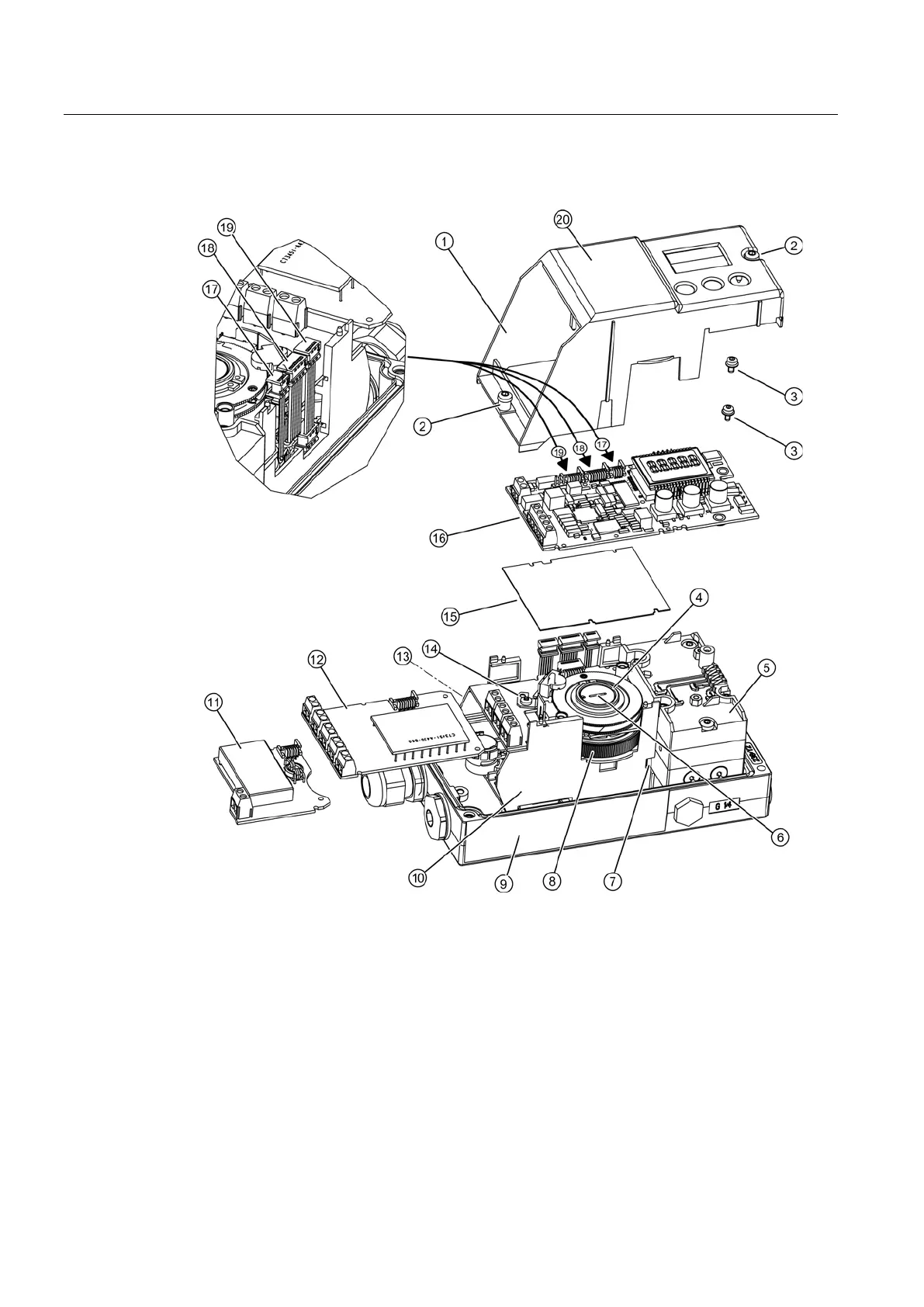

Overview diagram: Installing optional modules in the standard and intrinsically safe version
①
Module cover
⑪
I
y
module
②
Fixing screws module cover
⑫
Alarm module
③
Fixing screws basic electronics
⑬
Warning label on the side opposite the
nameplate
④
Actuating disk bearings
⑭
SIA module or limit contact module
⑤
Pneumatic block
⑮
Insulating cover
⑥
Special screw
⑯
Basic electronics
⑦
Transmission ratio selector
⑰
Ribbon cable/connector for fitted
potentiometer or external position
detection system
