Installing/mounting
4.7 Installing option modules
SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
53

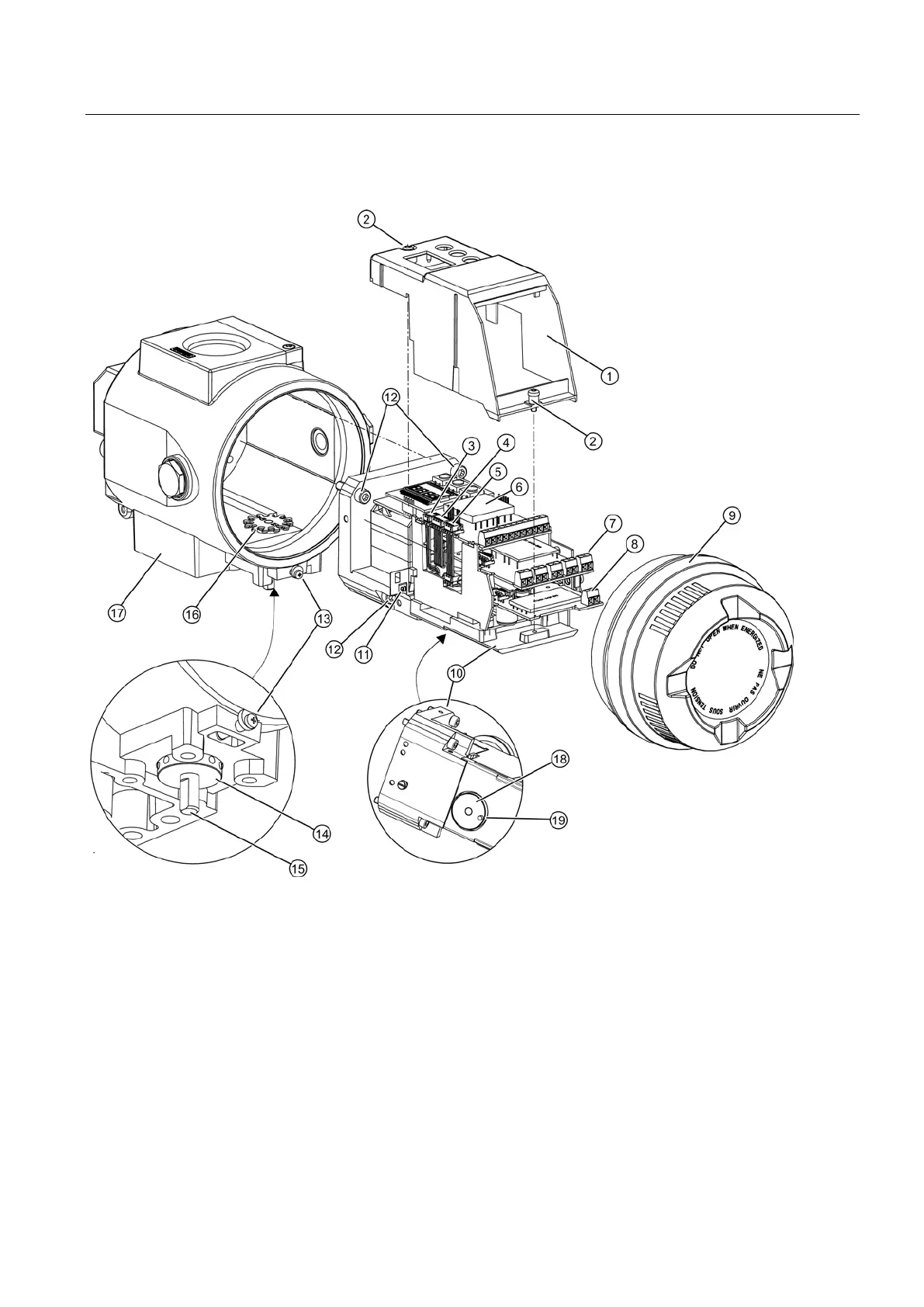

Overview diagram: Installing the optional modules in the "flameproof enclosure" version
①
Module cover
⑪
Transmission ratio selector
②
Fixing screws module cover
⑫
Fixing screws adapter
③
Ribbon cable/connector for fitted potentiometer or
external position detection system
⑬
Safety catch
④
Ribbon cable/connector for alarm module
⑭
Friction clutch adjustment wheel
⑤
Ribbon cable/connector for I
y
module
⑮
Feedback shaft
⑥
Basic electronics
⑯
Ring gear
⑦
Alarm module
⑰
Enclosure
⑧
I
y
module
⑱
Feedback lever bracket with pin
⑨
Screw cap
⑲
Pin (feedback lever bracket)
⑩
Adapter
Figure 4-11 Installing the optional modules in the "flameproof enclosure" version
