Siemens SIPART Series User Manual

Connection
5.1 Electric
SIPART PS2 with and without HART
78 Operating Instructions, 10/2013, A5E00074631-11
Connecting
①
Mechanical limit switch module
③
Limit
②
Fault message
④
Switching amplifier

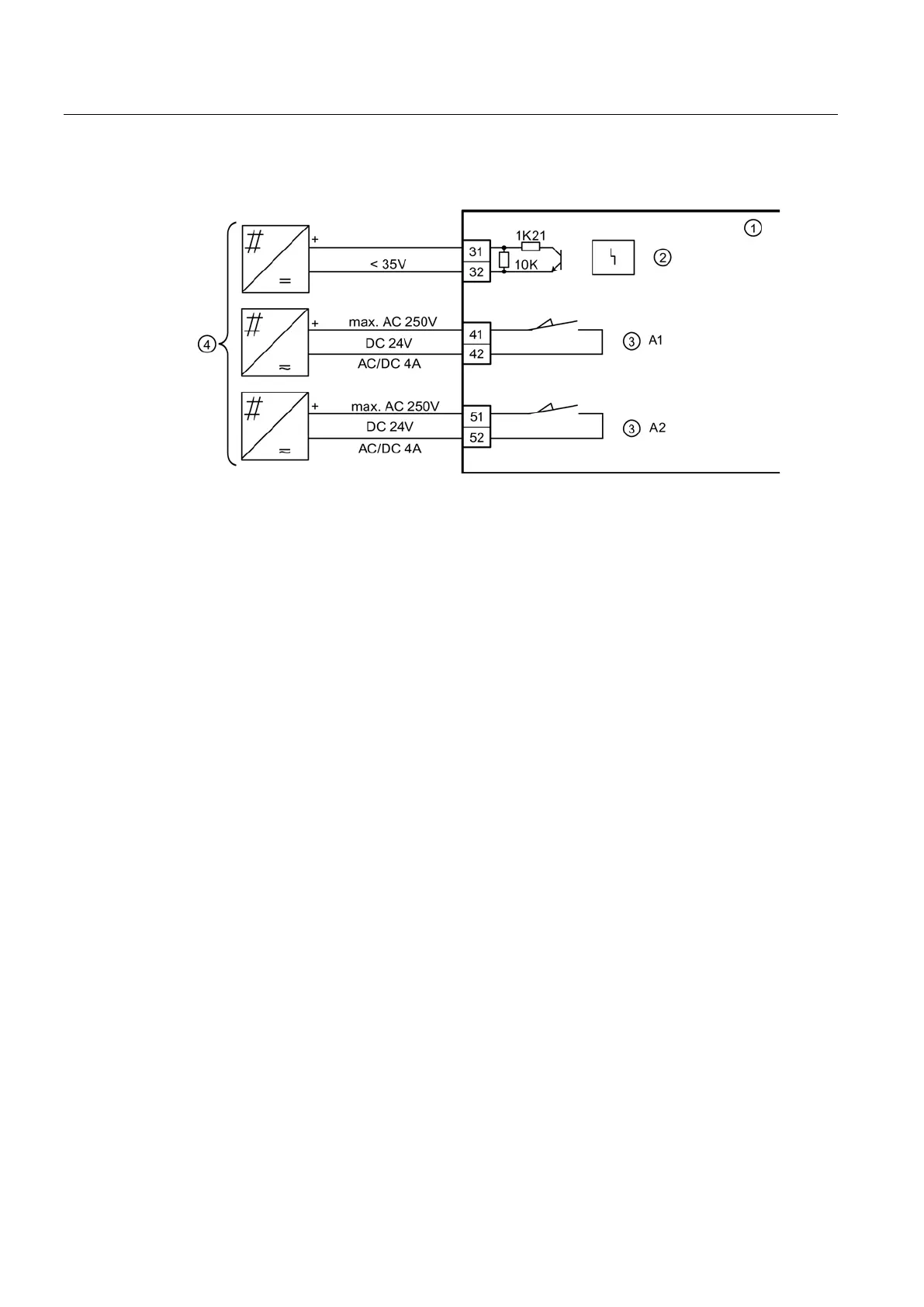

Figure 5-10 Mechanical limit switch module 6DR4004-8K (without Ex)
Procedure
1. Loosen the screw ① on the transparent cover ②.
2. Pull the transparent cover
② up to the front end stop.
3. Tighten every cable in the corresponding terminal.
4. Slide the transparent cover
② up to the end stop of the basic electronics.
